The column name is not indicated in the window, but can be set as "Inventory alert" in Window settings.

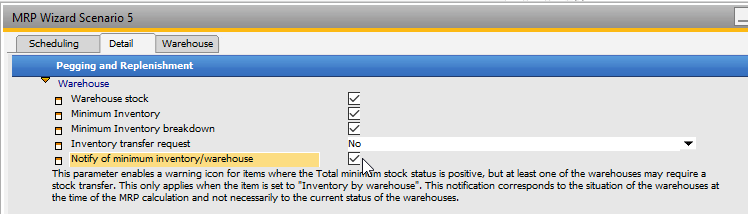

If the Notify of minimum inventory / warehouse parameter is activated, the MRP calculation can display the Icon in this column for Items where the total minimum stock Status is positive but at least one of the warehouses is under minimum stock.
Minimum Inventory Warning: Right-click the column header to activate/delete inventory warning filter.
Note: If blocked batches are reserved and not considered, this may lead to incorrect values. Because in this case, blocked batches will be subtracted from the displayed stock.
Inflow
Sum of all planned inflow in Inventory UoM (according to current filter settings), excluding order related quantities (e.g. bill of materials with order related item) and pegged requirements that were covered by reservations.
Outflow
Sum of all planned issues in Inventory UoM (according to current filter settings) plus sum of all planned inflow in Inventory UoM (according to current filter settings), excluding order-related quantities (e.g. bill of materials with order related item).
Balance
Balance of stock level-minimum stock-planned issue+planned inflow in the period of computation displayed in Inventory UoM.
Reservation
Reserved quantity.
EH
Inventory UoM.
Warehouse
Default warehouse of the item.

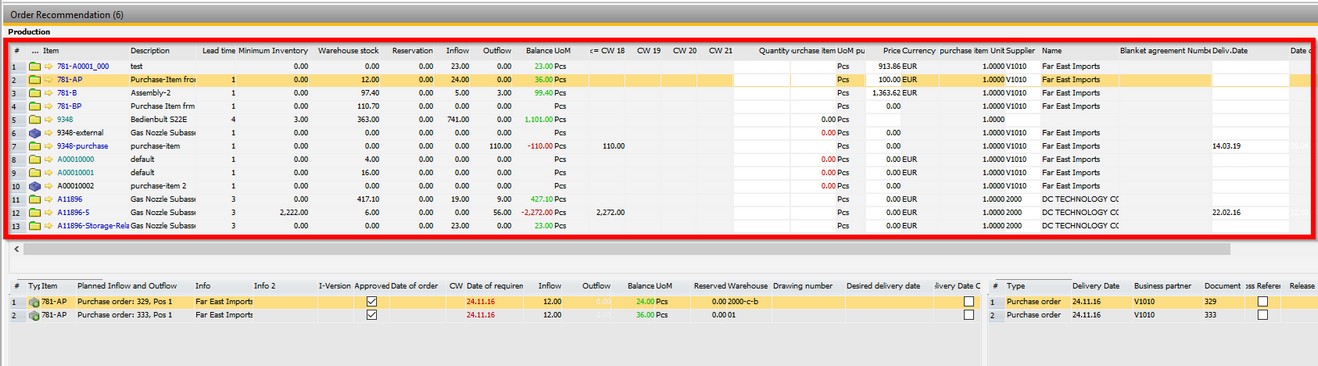

Order recommendation by:
CW x
Month x
or user defined
Order recommendation for next calendar weeks, months or other time units, that can be defined manually.
PATH: MRP > MRP Wizard > Select a scenario and click the Order recommendation button
First slot (e.g. <= CW5) : week at the moment of the MRP run.
second to second to last slot: slots of defined duration (e.g. one week)
last slot: all requirements from the beginning of the last slot until the far future.
Window maintenance_order_browse.psr
Depending on the defined time period for the calculation and the type of time period representation, the system calculates the count of columns. 2–18 periods are displayed then.
In Planning Scenario > Scheduling you can define other time units, for example monthly, bi-weekly or in customized time unit definitions.
Attention! Order proposal date is not the requirement date!
An order proposal corresponds to the requirement date minus the average delivery time, lead time and some buffer days.
In the order recommendation list it is possible to determine the quantity to be ordered automatically, even if the last possible date has not yet been reached. Select the number of buffer days, as well as the desired procurement method. Then, the test starts determining what quantity should be ordered, taking into account the lead time + buffer days (working days):
PATH: MRP > MRP Wizard/Order recommendations > Select a scenario > Order recommendation button > mode button > Pre-assign button.
WIndow mrp_strukturansicht_vorbelegen.psr
Calculation
The requirement date (list of peggings) is less or equal to the current date + lead time + buffer days given in working days. The sum of the affected peggings, taking into account the already planned receipts in this period, is the quantity to be ordered or to be produced. The calculated delivery date is, at earliest, the current day (today) + replenishment lead time + buffer days (work days). The determined date is at least one day after current date + replenishment lead time. If the determined day is not a working day, the next working day is identified and proposed. The determined values are entered in the order recommendation item list (upper part) in columns "quantity" and "requirement date". Click the Purchase Request or Production button to complete the process.
Note: This pre-allocation function considers only storage-related assemblies.
Attention: Supplier and price need to be entered prior to the creation of purchase documents. Items without this information are ignored.
Examples for the calculation of the order proposed date with help of the pre-allocation function:
1.

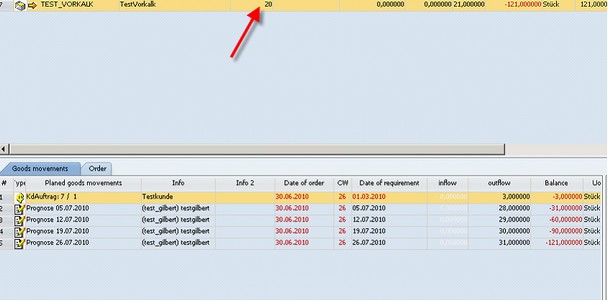

Lead time from the item master appears in the calculation is 20 days.
PATH: MRP > MRP Wizard > Select a scenario and click the Order recommendation button
Window: mrp_view_masterrahmen
2.

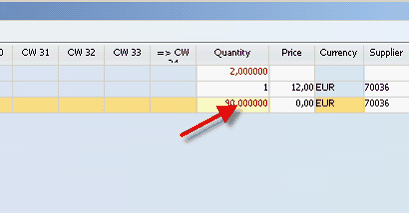

Fill PO quantities. Additional days can be entered.
Period = Current day + Lead time (item master) + work days
End of the period = 24.07.2010
The last requirement of 31 pieces from 26.07.2010 is outside the period.
Period = Current day + Lead time (item master) + work days
End of the period = 23.08.2010
The last requirement of 31 pieces from 26.07.2010 is now inside the period.
If by right-clicking on a calendar week the purchase order quantity (field "quantity“) is pre-allocated, the delivery date is also pre-allocated according to the selected calendar week. It is also possible to enter the desired delivery date of the purchase order to be created.
Order multiples
Order multiples (item master) is taken into account.
Example: Order multiple 10
Purchase order recommendation CW of 10: 6 pcs, CW 11: 4 Pcs
Displayed: CW 10: 10 Pcs, CW 11: 0 Pcs
It is always rounded up to the next order multiple and the subsequent purchase is covered by it. Double requests are avoided.
Order possibility

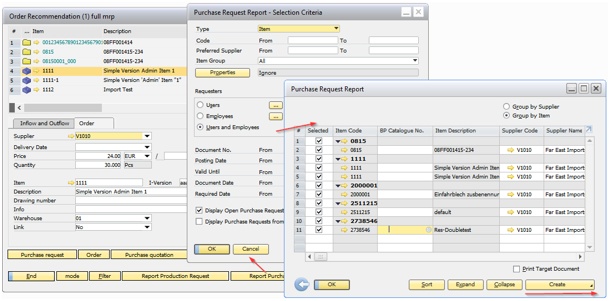

Collective purchase request/collective production request: Right-click on the time heading (CW x), which uses the order quantities for CW x. The requirements are entered in the quantity column. Only entries with corresponding requirements are displayed. For purchase orders the price and the supplier must be entered, for production request only the quantity. Then, the process can be started via "production request" or "order request".
Take over single quantity: If the quantity is to be used for one item, right-click in the CW x column on the corresponding item and choose "order request" or "production request".
This is not possible in collective order mode. For activating the detailed view click on the mode button. Thereafter, data can be completed and the process can be started.
Quantity in warehouse units
Quantity to be purchased / produced in Inventory UoM (Column header "quantity").
Quantity purchasing UoM
Quantity to be purchased / produced in purchasing units (Column header "quantity").
Purchasing UoM
Purchasing UoM according to item master data.
Factor Purchase UoM
Factor Purchasing UoM to Inventory UoM according to item master data.
The system select the correct Purchase Agreement number automatically for current supplier, quantity and delivery date.
Blanked Agreement ID
Internal Purchase Agreement Number
Gross price
If a gross price list for the chosen supplier was stored, all price quotations are then carried out for gross prices (cannot be changed). If an order is prepared, the price is submitted as a gross price.
Deliv. date
Delivery date for the purchase order to be created. It is pre-allocated with the first outflow (e.g. requirement date from customer order or work order). The balance (inventory, other inflow) is not considered. If the first planned outflow is in the past, this date will be displayed in this field.
Date of order
Planned inflow of first purchase order.
First demand
First planned issue (delivery date of customer order, forecast).
Sales Uom
Sales UoM.
Sales factor
Factor Inventory UoM to sales UoM.
MRP
Scheduling ID according to item master data.
Order related
Active for order related items.
Procurement Method
Purchase item or production item.
Produce
Active for production items.
Buy
Active for purchase items.
Sales item
Active for sales items.
Purchase item
Active for purchase items.
free
Clearance attribute according to item master.
free from
Clearance attribute "from" according to item master.
free to
Clearance attribute "to" according to item master.
blocked
Attribute blocked according to item master.
blocked from
Attribute blocked "from" according to item master.
blocked to
Attribute blocked "to" according to item master.
Item account
Default account as per item master.
Note: The account is only correct if the account was set up per item.
raw material
Raw material according to item master.
Order multiple
Order multiple according to item master data > Planning Data tab.
Minimum order amount
Minimum order amount according to item master data > Planning Data tab.
Maximum amount
Minimum order amount according to item master.
Goods issue for production
Total of planned production outflow.
Goods receipt from production
Total of planned production on hand.
Ordered
Total of incoming purchase orders.
Sales order
Total Sales order outflow.
Quantity for chosen PO
Total items for PO as selected in Planning > Detail > Filter.
Note: The content is not saved and stays available until the list is redrawn. This field may be used for customizations, as well as fields "UDF1 ... UDF3".
Project
Not supported.
First inflow
First inflow by purchase (P) or production order (W).

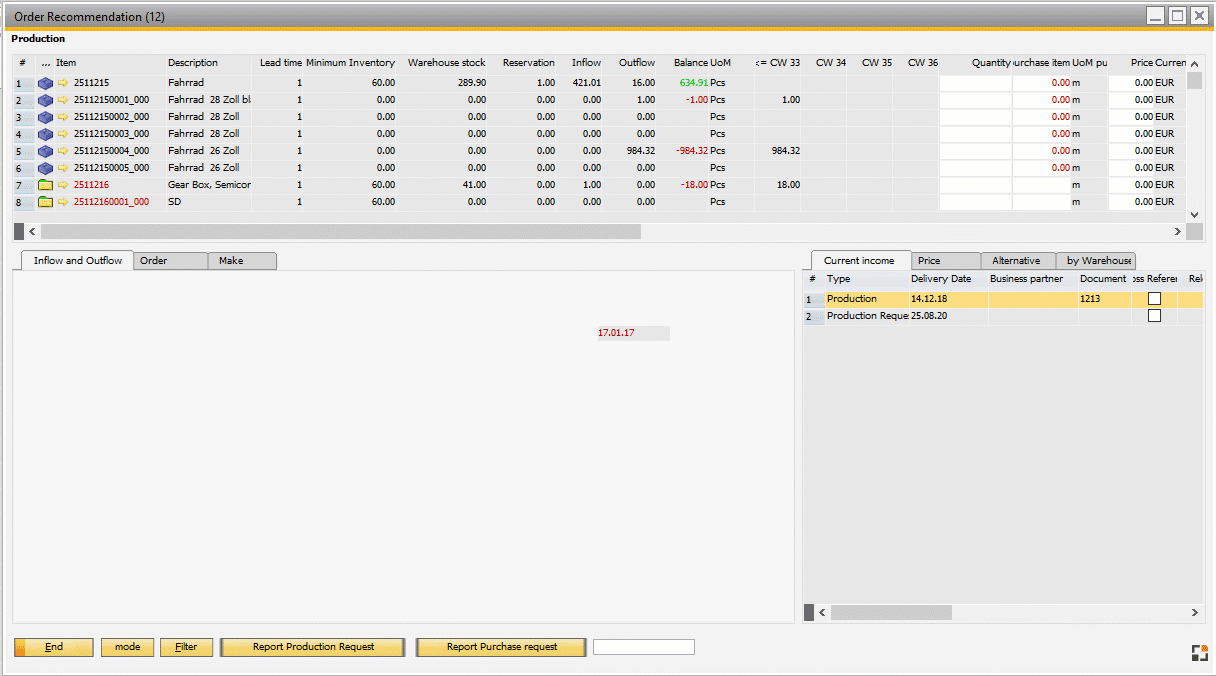

By switching to Massive mode, you can work on item level for planning purchase orders or production orders.
Click the mode button, and the complete bottom window area disappears, leaving the Order recommendation list and 3 additional buttons:
Button
Function

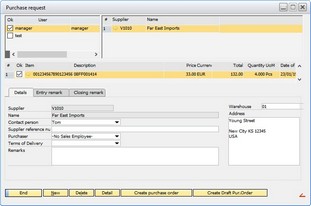

Purchase request
Create a purchase request for the selected item.
Production
Create a work order for the selected item.
Pre-Assign
Opens a new window to calculate what quantities need to be produced or purchased for the next X days. Use this to make material requirement planning for a defined upcoming period.
