Pool Report

Terminal and WEB APP > WEB APPS Version 2.1 > Pool Report

 Top  Previous  Next
Expand/Collapse Toggles

WebApp_PoolReport_thumb

Zebra_main_wdevice

Optimized for Zebra Scanner


Browser Support
Browsers_supported





beaslogo License

Production Data Collection, Start, Interrupt, Completion, Finished Goods, Scrap license





This app makes it possible to create a Pool report.

See basic WebApp controls in General Information on WEB APPS Version 2.1.
See Configuration wizard settings of the Web Terminal.



WebApp_PoolReport_Resource



youtube



hmtoggle_plus1Logon mask icons - descriptions

Logon mask icons

Icon

Description

WO_start_oplogin (red)

In WO Start: A user (current or other) has already logged in to/ started the operation.

In Pool Report: Current user is logged into the operation.

WO_start_oplog_gray (gray)

No user has logged in to the operation yet.

Logged_in_icon (orange)

Available in WebApp Pool Report. Another user has logged into the operation.

Open_Resource_webapp_icon

Open: resource is available

WebApp_POOL_Report_Locked_Resource

Locked: If used for other running activity and Resource Option "Single operator per operation sequence" is active.

Logon_masl_not_enough_material

Available in WebApp Pool Report.

Red: Not enough material to complete the work order.

Gray: Material is enough to complete the work order.

Note: The system displays this only if it is activated in the configuration.

attention

Interruption is active.



TABS:

hmtoggle_plus1Resource

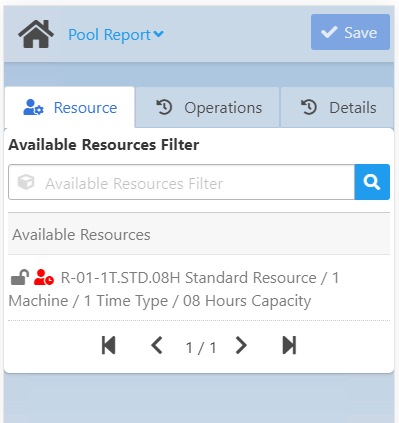

This first tab displays all resources of the current Pool list.

The system reloads the list only if the app is started or if you select "Reload the application" in the WebApp Header, because the calculation of Pool report can take time. See Performance.

See Logon mask icon descriptions above in this chapter.



Select a Resource from the "Available Resources Filter".

The filter is applied with "Enter" or pressing the search (magnifyglass button;  auto-complete function is not supported.

WebApp_PoolReport_Resource_02

After selecting the resource, the app switches to the next tab.

Note: If you switch to other tabs, the system does not reload the pages.

IMPORTANT: Multi-logon/off of resources is not possible in the WebApp version.
hmtoggle_plus1Operations

This tab displays all operations of the pool report and the resource selected in the first tab "Resource".



Select an operation from the "Available Operations Filter"

You can search by:

•Document Number

•Order Number

•Operation Bar code



Note: You must type the complete Order number or bar code. Document number can be typed partially to provide search hits.

The filter is applied with "Enter" or pressing the search (magnifyglass button;  auto-complete function is not supported.

WebApp_PoolReport_Operations_02

After you select the resource, the system displays the Operation list. The operations are sorted according to predetermined pool priority (working identically in the Desktop Terminal version):



"Operation List" entry details

Information

Example (see above image)

Icons

See Logon mask icon descriptions above in this chapter.

Work order document / Position / Routing position and WO number

600218/10/30 and WH001618

Customer ID and Name

V70009 and CTI Computers

Planned Start Date and Time

15.12.2021 and 12:45

Operation description

Internal Operation STND001 - Standard (default Resource only) - Setup for Capacity - 1 Time Type - No QC Inspection Plan

Item and Item Name

FP Finished Product/Normal

Material check

RM 5.00 < 10.00 /

NOTE: Only visible if the parameter is enabled and if there is not enough material.


hmtoggle_plus1Details

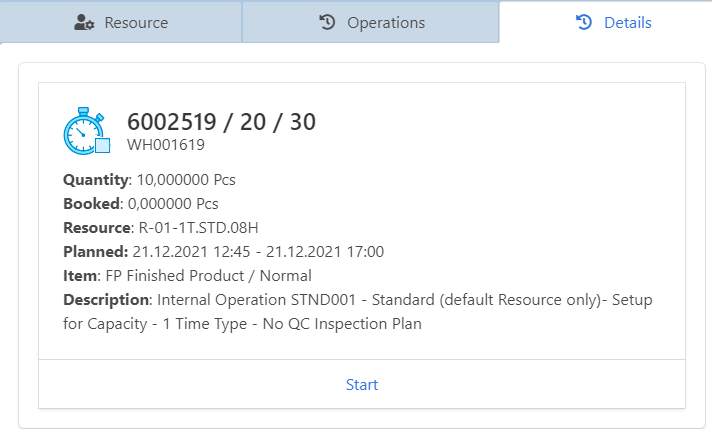

This last tab displays the details of the Operation, and you can start and stop the operation.

WebApp_PoolReport_Details



Field / function descriptions

Field / function

Description

example: 6002519 / 20 / 30 and WH001619

WO document number, WO position, Operation and Work order Number

Quantity

Planned Quantity in Warehouse unit

Booked

Booked Quantity in Warehouse unit

Resource

Planned resource. If the operation is started, the system displays the resource defined in the Logon Process.

Planned

The planned Start/Stop date time

Running since

The Start Date time and running time (only if started)

Item

The Item Number and Item Name

Description

The description of Operation. If instructions are available, the system displays a running icon. If you click on it, the app displays the instructions.

Start button

If the Operation is not started, the app displays "Start"

IF:

- The resource is a Resource group, or the resource supports time types:

the system switches to "WO Start" App and you can insert all necessary information.

After starting the operation, the system goes back to the Pool Report - Details TAB

- otherwise the system starts the operation directly.

Stop button

The system opens WebApp "WO Stop" and you can insert all necessary information.

After this, the system goes back to Pool report > Resource TAB.



WO_Start_Instructions_SYMBOLfootprint symbol

Click on the footprints symbol to see instructions inside the app.

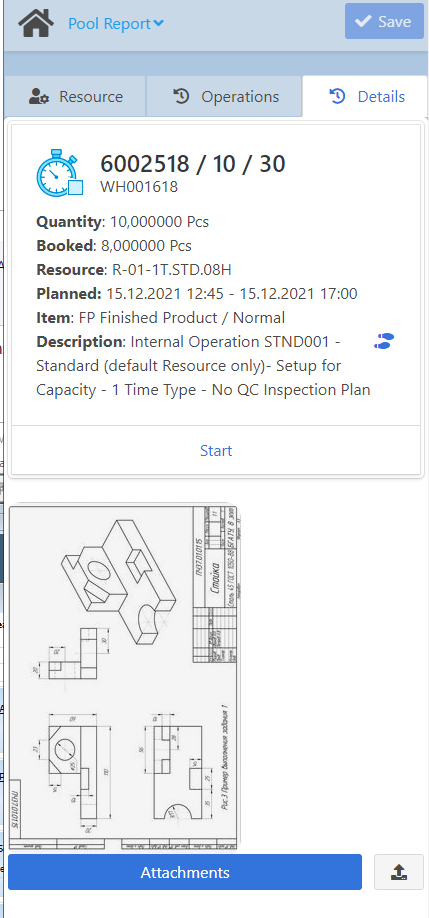

Attachments/Images

Images of the following, linked master data

a) Operation

b) Item master

are displayed under the Start/Stop button.

Pool_Report_WebApp_Attachments

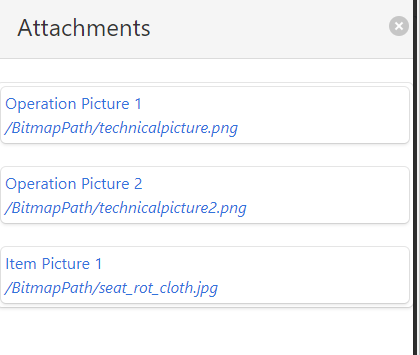

Attachments: The first image stored in the first operation is displayed, and you can display the other images by pressing this button. A list of attachments from operation and item appears in a separate window:

Pool_Report_WebApp_Attachments_02



Limitation:

WebApps_AttachmentsUpload button is not supported in this version. Images can be attached in the desktop solution.





The system displays the Bill of Materials list in the bottom area of this tab, below the Start/Stop button and (any) linked images.

Note: BoM with negative quantity is not supported.

WebApp_PoolReport_colorcodes



Color codes

Background color

Description

Red

You must book the material manually and booked quantity is not enough.

Green

The system books the material automatically (part of backflushing process) or you already booked it manually.

White

This Bill of materials position is not linked to the current operation.





see

Pool control

Pool structure report

Capacity planning

Priorities
