Pool report

Administration > System Initialization > Configuration Wizard > Production > FDC > Pool report

 Top  Previous  Next
Expand/Collapse Toggles

PATH: Administration > System Initialization > Configuration wizard > Production > FDC



In the pool list you can see all fields of the routing positions of an assembly and the work order. Window settings and Templates are supported.



Configuration for Pool List

Production > Factory data capture > Terminal > Pool Report

Pool_report

Window bde_terminal_poolinfo.psr


Parameters

Parameter

Description

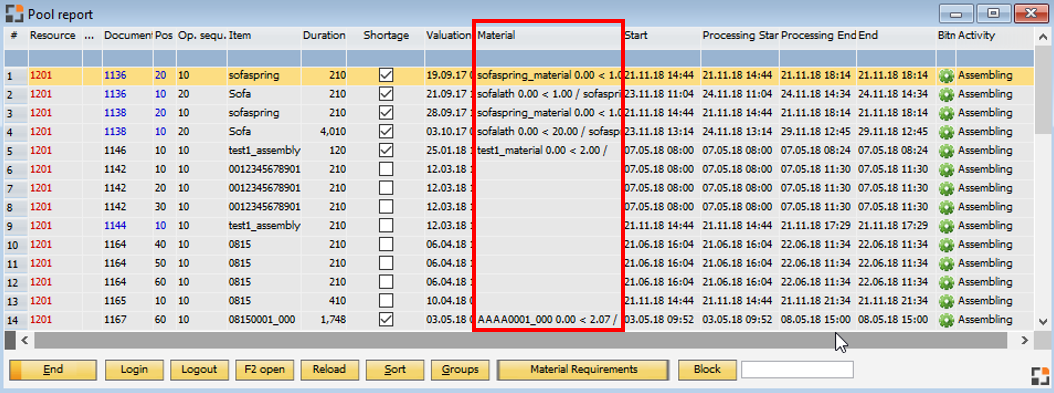

Pool report with material check

A material control is performed simultaneously by default. The operations that cannot be processed due to missing material are indicated with an active checkbox in the "Shortage" column and grayed out.



Pool_report_material_02

Window bde_terminal_poolinfo.psr



The calculation is performed online and delays the display accordingly. If the calculation is not required, this can be deactivated here.


Performance meter Performance notes

Disable this function if Beas requires longer time to open this list.

Pool list: show only planned WO

Use this setting if you work with the APS Plan Flag.

See Work order - Settings - APS Planned

Direct logon logoff

If this option is enabled, one or more parallel work sequences are logged on and off in the pool list. The multiple selection feature is activated hereby. Multiple logon is only possible if permitted by the stored rules.

Dispatching index: Consider number of days

The default value is 99. Limits the number of days displayed in the pool report.

Note: If you do not work with APS, insert a number between 10-99, otherwise you will not be able to see all Routing positions.





See:

Pool Control

Capacity planning

Priorities

Help URL: https://help.beascloud.com/beas202402/index.html?poolliste.htm
