In this window all measured values can be entered for a Sample.
Window is dynamically adjustable. UDF and Templates can be stored. The authorization for QC-order is required.
PATH: Production > Quality Control > Samples > select an entry > Samples button > double-click/Open an entry.
Window qs_qsftpos_edit.psr
After all measured values have been registered, in the sample "release 1" is set to status "released". Depending on the settings, a second release follows, "Release 2", a "batch release", a release of the QC-order or the QC order may be automatically closed. See QC-inspection plan – Release.
A sample can consist of several measurement positions.
A sample is considered "OK", if
- "OK" and "Release" are active for all relevant measurement positions,
- No blockage reason was stored for no measurement position causing "Block release",
- Samples have been set manually to "released",
- "Release 2" was activated.
|
A sample is blocked, if
- the sample was set to "manually blocked",
- in all measurement positions blockage reasons are stored, in which the ID "Block release" is active.
There is no automatic blockage of a sample only due to measurements outside the allowed range.
|
Configuration of the window:
Measurement positions list
Register measured values
Functions
See
Quality control orders
Quality control order - Item master - Quality control - QC-inspection plan
Register per sample
Register measurement position
Edit measurement position
Register per test
Register measured values for all samples
Documents
Transfer
Measurement positions list
|
|
POS
|
Number of measurement.
|
QC-Test
|
Test title.
|
Methodology
|
Description of method.
|
Minimum
|
Allowed minimum.
|
Maximum
|
Allowed maximum.
|
Target
|
Target value.
|
UoM
|
Unit of measurement.
|
Sample
|
Sample ID.
|
Measurement value
|
Enter the current value or text.
|
OK
|
check mark, if OK or manually, without entering a value.
|
Release
|
Release measurement position? See Personnel > FDC > QC Release
|
Relevant
|
check mark, if relevant for release.
|
Blockage reason ID
|
. With right-click a blockage reason can be selected. if a valid ID is entered, the blockage reason is filled automatically. Any value can be entered as ID, due to downward compatibility, there is no check .
|
Blockage reason
|
Description of blockage reason. ( Remark).
|
Additional fields can be displayed using window settings.
Register measuring values
Measured values and attributes can be registered. Blockage reason, valuation and up to 4 additional fields.
Control
Enter data on the lower part of the window. Use Cursor up / down and ENTER to jump in the list to the next or previous position.

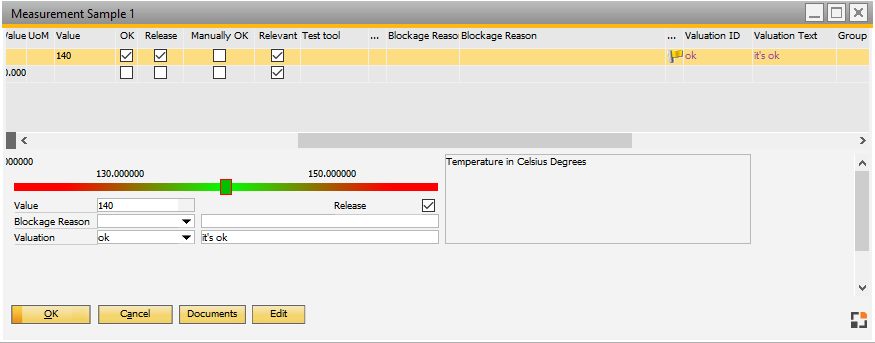

In the entry area measurement value registration is visualized, similar to scales – see image above. The minimum value is indicated on the left, and the maximum value is displayed on the right. Once set, the target value appears between them.
In the red-green bar the value is visualized: Green area = OK, red area = faulty.
The rectangle above shows the current measuring value. If green, the value is within range, if red, it is outside the set range.
|
The graphic is hidden for texts and attributes. Also, if no minimum or maximum values are given, the graphic is hidden.
|
|
Value
|
If the value fits the target (between minimum and maximum), the field is set to "OK". If the Four-eyes principle is disabled, the measurement position is released immediately.
Additionally, the measurement position also stores the employee, the work station and time and date at which the values were registered.
|
|
OK
|
If a measured value is entered between maximum and minimum, OK is set automatically. If the value is outside the allowed range, the field OK is disabled.
In QC-inspection plan - Measurement position you can store, whether it is possible to set "OK" manually
Attributes
Registering attributes ( = no default range of values) the field "OK" is changed manually.
Special case: If minimum and maximum values = 0, this will be interpreted as if no values were set. The maximum value is then 99999, any numeric positive entry will lead to "OK".
Release
The measurement position can only be released if "OK" is active.
If in QC-inspection plan the setting "Disable additional release" is enabled, setting the OK field, release is automatically enabled.
|
|
Release
|
Following the Four-eyes principle a second user can release the measurement position. The user who entered the measured value may not release the measurement position.
Exception:
The Four-eyes principle was disabled in the inspection plan. In this case, the measurement position is released automatically, after marked as "OK".
Release not possible:
- If a blockage reason was stored - this prevents the release. See Blockage reasons.
- Sample has been released already (Release 2).
- QC-order has been closed already.
- The current user registered the measuring value (Four-eyes principle).
|
|
Blockage reason
|
For each measurement position a blockage reason can be stored.
Enter the possible blockage reasons.
You can only select blockage reasons that match the QC-inspection plan group or have no entry in the group and they need to be visible in the respective area (Order, sample, measurement).
Blockage reasons may have further effect.
See Blockage reasons
|
After selecting a blockage reason "OK" will be disabled if "Block release" was activated in the blockage reason.
If a measured value or an attribute has already been stored, the entry is checked and if necessary, "OK" is set again.
|
Valuation
|
Valuation reasons are setup under Valuation
You can only select valuation reasons which match the QC-inspection plan group or which have no entry there. Furthermore, they need to be visible in the respective area (Order, sample, measurement).
|
|
UDF1 ... UDF4
|
Free definable fields are set up in Configuration wizard.
|
Functions
|
|
Update
|
Before saving, it is checked if the sample may be released.
The complete release process is performed as defined in Inspection plan - Release.
|
|
Documents
|
Open the Documents screen, in which linked documents are displayed
|
Edit
|
|
Change log
|
The Change Log displays all changes for the Quality Control order.
|
