With blockage reasons you can define the reason of a quality control blockage during the registration of measured values. If a blockage reason was stored for all relevant measurement positions which have "block release" activated, the Sample is automatically marked as "blocked".
Blockage reasons can be stored in a Measurement position, Sample or in QC-order. Additional settings in QC-inspection plan – rules
Configuration:
PATH: Production > Quality control > QC Blockage Reasons.
Window_qs_sperrgrund_browse.psr
Windows settings and Templates supported. Authorization for Edit QC-template required. Field descriptions: see Edit valuation.

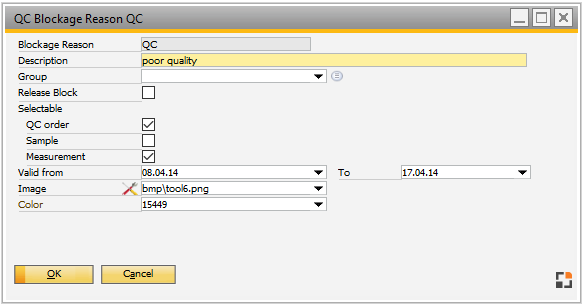

PATH: Production > Quality control > QC Blockage Reasons > Open an entry.
Window qs_sperrgrund_edit.psr
Field |
Description |
Valuation |
Unique ID for blockage reasons. |
Description |
Description of blockage reasons. Transferred to QC-Order, Measurement position or Sample. |
Group |
Entry can be linked to a group. Only valuations belonging to the same group QC-inspection plan can be selected. |
Release Block |
If the switch is enabled and the blockage reason is selected in a measurement position or a sample, the affected entry cannot be released. |
Selectable in QC-Order/Sample/Measurement |
Determine in which area it can be selected. |
Image/Color |
Select image and color which are displayed in lists. |
Functions:
Remove: Delete current blockage reason.
