QC valuation reasons

Production > Quality control > QC valuation reasons

Top  Previous  Next

Here valuation reasons are defined, which can be selected in the QC-order.

Valuations can be stored in a measurement position, a sample or in a QC-order. Settings in QC-inspection plan – rules



Configuration:

List valuations

 Edit valuation



PATH: Production > Quality control > QC Valuation

Traditional style

Boyum Style

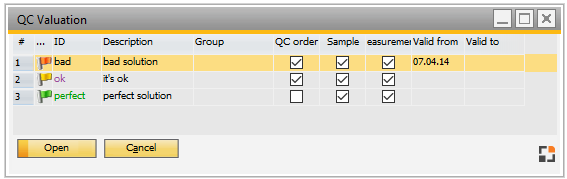

QC_Valuation_2022.09

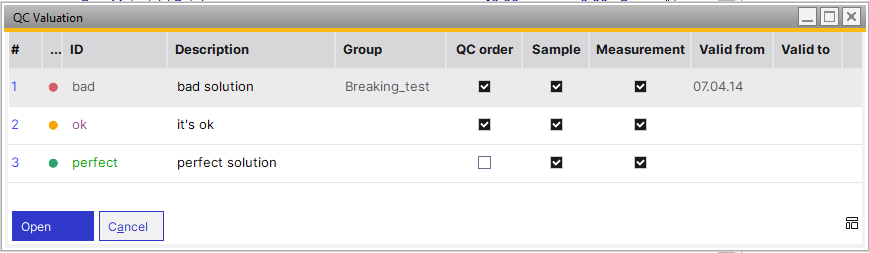

QC_Valuation_2023.04



Window qs_qsvaluation_browse.psr



List valuations

Windows settings and Templates supported. Authorization for Edit QC-template required. Field descriptions: see Edit valuation



Edit valuation

PATH: Production > Quality control > QC Valuation > Open an entry.

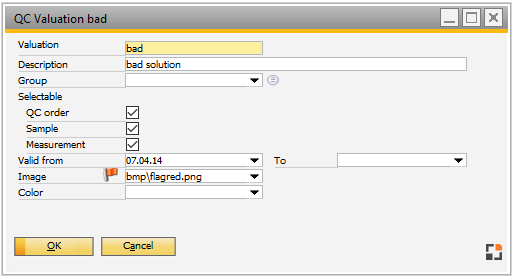

QC_Valuation_2022.09_b

Window qs_qsvaluation_edit.psr



Field

Meaning

Valuation

Unique ID for Valuation.

Description

Description of valuation. Transferred to QC-Order, Measurement position or Sample.

Group

Entry can be linked to a group. Only valuations belonging to the same group QC-inspection plan can be selected.

Selectable in QC-Order/Sample/Measurement

Determine in which area it can be selected.

Valid from/to

The valuation reason can be selected only in this period. If no date is stored all entries are selectable.

Image/Color

Select image and color which are displayed in lists.



Functions:
Remove: Delete current blockage reason.



back to QC orders
