Production Cockpit

Installation Instructions > Production Cockpit

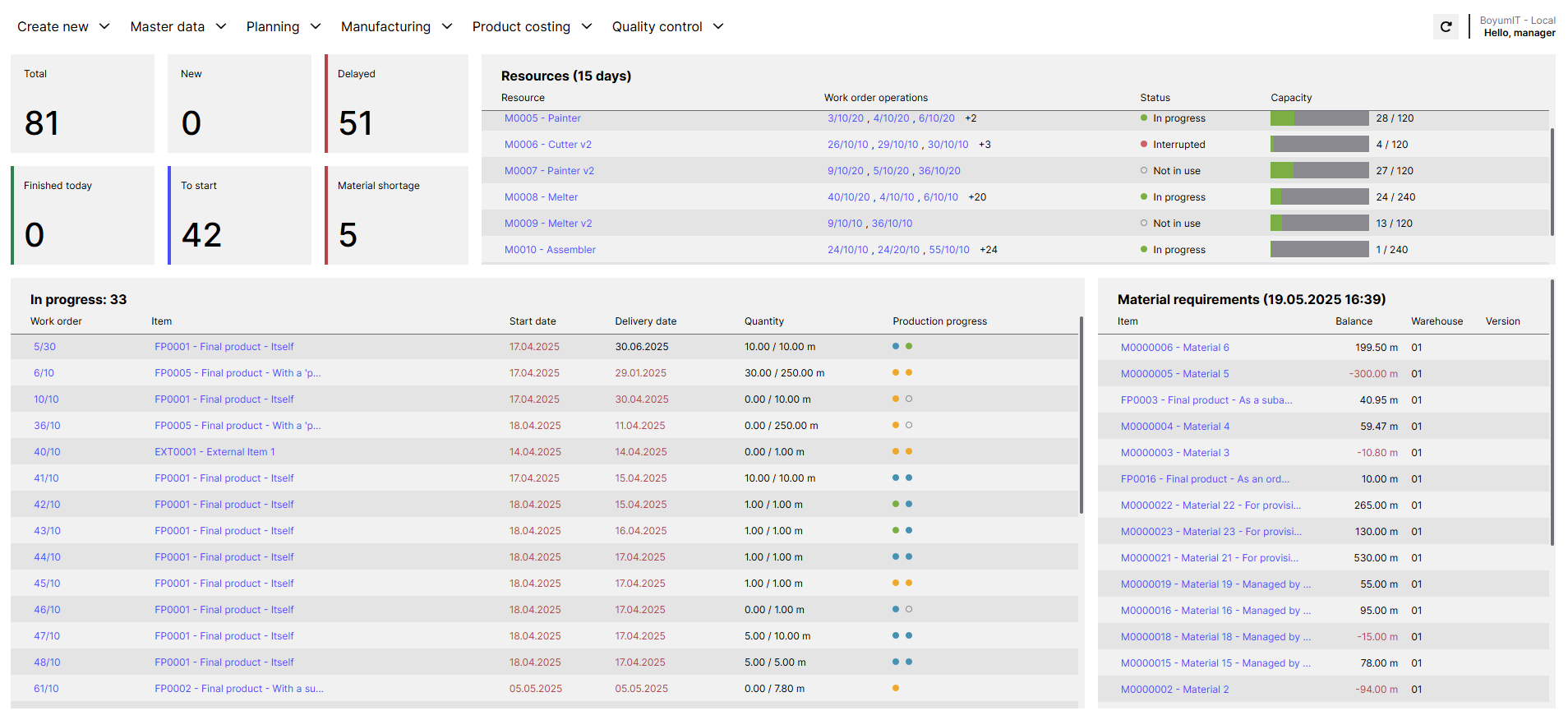

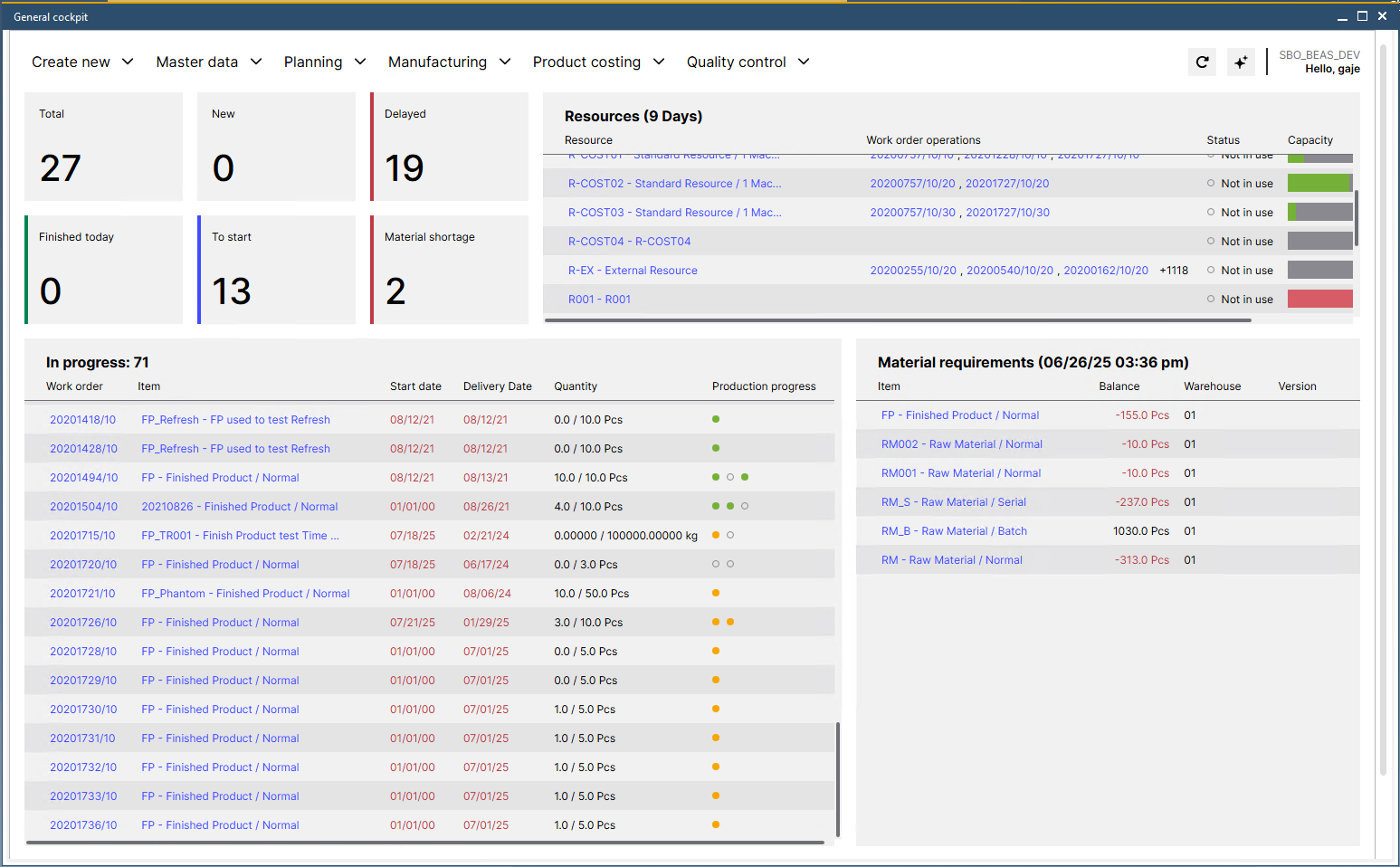

The Production Cockpit window is a centralized interface that displays an overview of the current production status and allows users to quickly access key information, track the status of work orders, and efficiently manage their daily tasks. (Beas 2025.06)

What can you do with the Production Cockpit?

•View the current status of all your Work Orders (WOs): new, delayed, pending, or missing materials.

•Check which resources are in use, available, or interrupted.

•Monitor real-time production progress, with detailed information by operation.

•Access the most up-to-date list of material requirements.


Immediate benefits:

▪Instant Information: Quickly access real-time work order status, eliminating time-consuming searches.

▪Efficient Planning: Easily identify and prioritize the latest orders, enhancing production scheduling.

▪Timely Issue Resolution: Swiftly spot delays and material conflicts, enabling prompt decision-making.

▪Streamlined Navigation: Directly access main tasks, reducing menu navigation for faster actions.

Initial setup:

1. Run the Beas Service.

2. Activate "Calculate Material requirements for Cockpit" planned activity in the Beas Manage Server. IMPORTANT: Make sure that Beas Service is running; planned activities do not run without the Beas Service.

3. Edit and customize this planned activity to your needs: running the calculation on the selected days of the week, with the custom frequency (e.g. hourly).
Default setting: Daily, Monday to Sunday, from 8:00AM to 11:00PM on an hourly basis.


Rights activation for the Beas user:

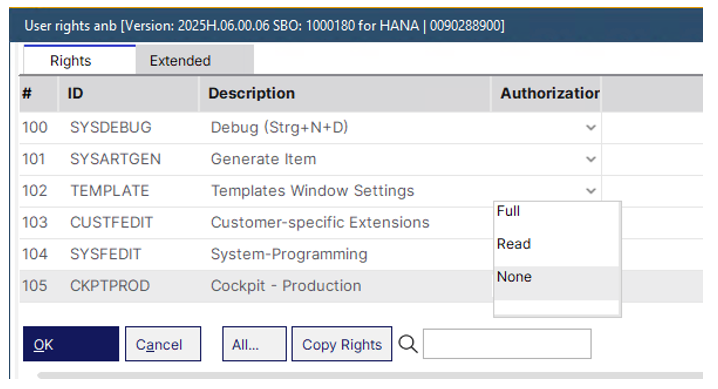

1. Rights for the Production Cockpit must be set up by the system administrator in the User administration rights extended option:

2. When user rights have been set up, the cockpit window can automatically be activated for the user when clicking the "Activate Cockpit" button in the "What's new window" upon Beas startup.

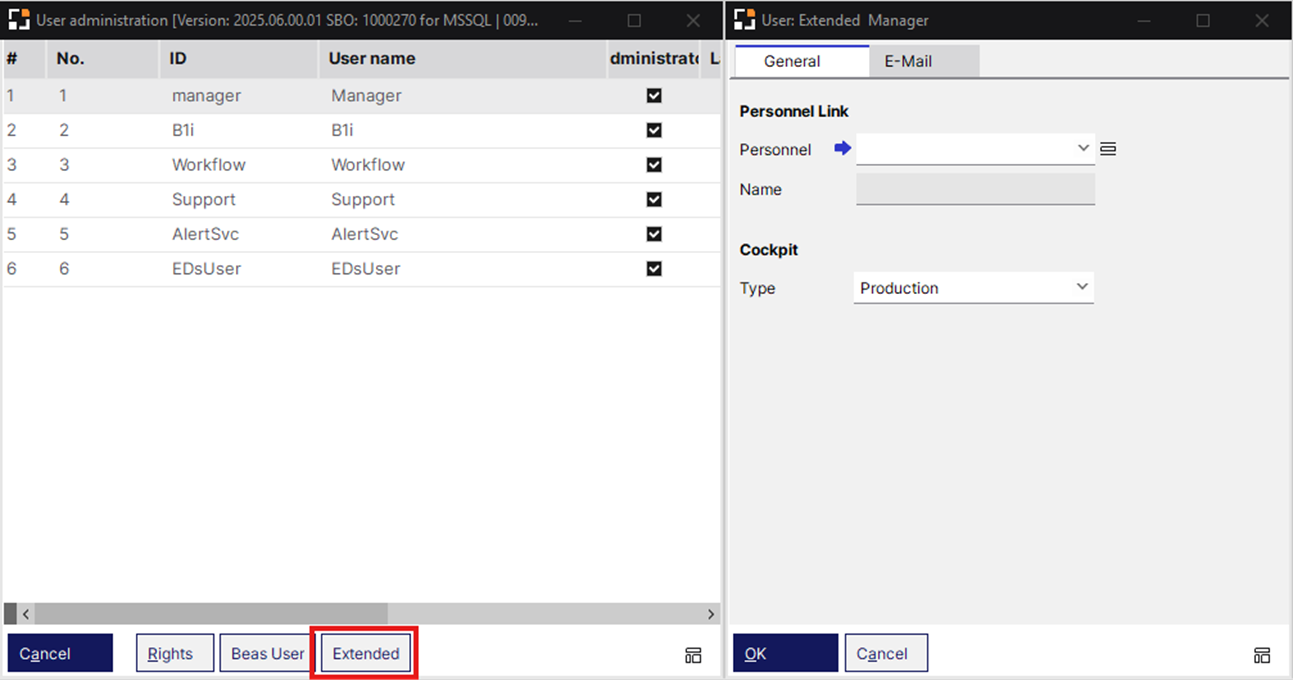

Or the System administrator can change the Cockpit Type manually in the User administration extended setting:

Open the Production Cockpit:

PATH:

Beas: Tools > Cockpit > Production

OR

SAP B1: Tools > Cockpit > Production

Window: general_cockpit.psr

Top menu

Filter buttons
The total amount of WOs grouped in different statuses. You can open the WOs list filtered by one of these statuses.

Resources (X days)

A table with all the resources. It shows a list of WO operations that are using these resources (in a predefined period of days) and if it is currently not in use, working or interrupted.

In progress: XX

The table shows all the opened work orders that have at least one operation already started or done. When scrolling to the end of the first 30 entries of the list, the system loads the next 30 entries.

Work order	Linked work order. Sorting by this field is supported.
Item	Linked item. Sorting by this field is supported.
Start date	Start date of the work order. Sorting by this field is available.
Delivery date	Delivery date of the work order. Sorting by this field is available.
Quantity	Work order quantity

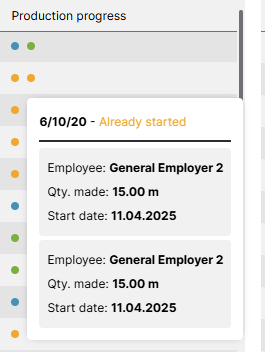

Production progress	Shows the status of production progress of each operational sequence with a colored dot: - GRAY: Not started - YELLOW: Already started - BLUE: In progress - GREEN: Completed   Hovering over the colored dots (representing the individual operation sequences of a work order) opens a pop-up screen with information on the date, the Start date, the clocked-in employee and the quantity produced by that employee:

Material requirements: (dd.mm.yyyy  hh:mm)

A table with the last calculated material requirements list. The dd.mm.yyyy hh:mm information shows the exact time of the last calculation for material requirements.
