Beas Server management

A Beas service can be a web server, a service which executes planned activities or an asynchronous common server which executes transactions.

The web service can be activated more then once. Load balancing is supported.

A Beas service is the Beas application which is started as "service".

It is possible to simulate it

- for WEB Server: Tools > Web Server

- for all Services: Beas Manage Server - "Start Local Server" button.

A Web-Application which edits WEB queries (WEB sites, service queries etc.). Required to operate the Terminal App via browser.

See Beas WEB Server presentation.

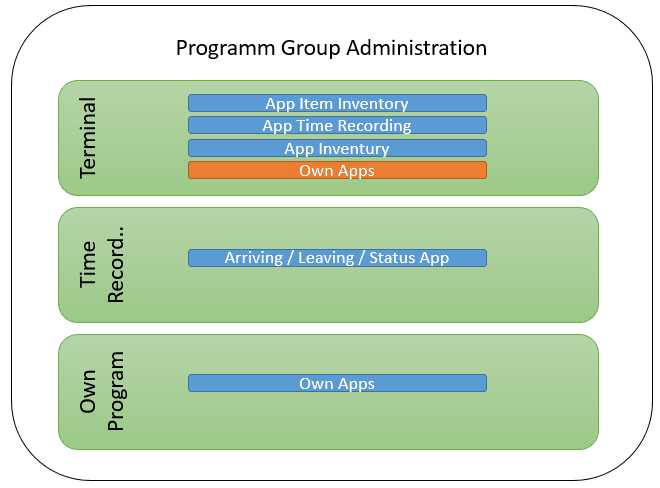

This service offers all programs set up and enabled in Program groups administration.

Only the program group Terminal is installed and updated by default.

A program group can be e.g. a WEB application as well as a WEB service. All the usual methods will be provided here by the Beas Framework-like WEB-Application with finished Login-screen (employees, customer etc.), as well as, services like SOAP, REST with XML or JSON-format support.

Example: Program group "Terminal": Our mobile solution

This requires an Interface to the HTTP Protocol

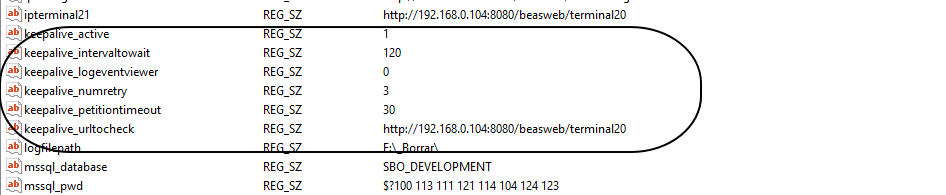

 Beas KEEP ALIVE System

The WEB Applications are always administrated via Program group administration.
The Program Group Terminal is installed by default. See Terminal Apps.

With a common interface, activate asynchronous process working.

Window syste_common_dashboard.psr

Area of use:

- The WEB-Server service sends all Crystal Report

- SAP transactions to this service, via which this asynchronous can be worked off. This relieves the WEB server and reduces load peaks

- External services and third programs can be linked here e.g. to execute transactions

There are finished functions available.

A complete BeasScript can be sent, as well. Then, the script is executed by this service.

See: Common_service

Time controlled activities can be executed here.

- Integration Hub: scan directories and read in files e.g. for machine connection, PDM connection etc.

- Perform calculation regularly

- Create statistics and send per mail

See: Server-Examples , planned activities

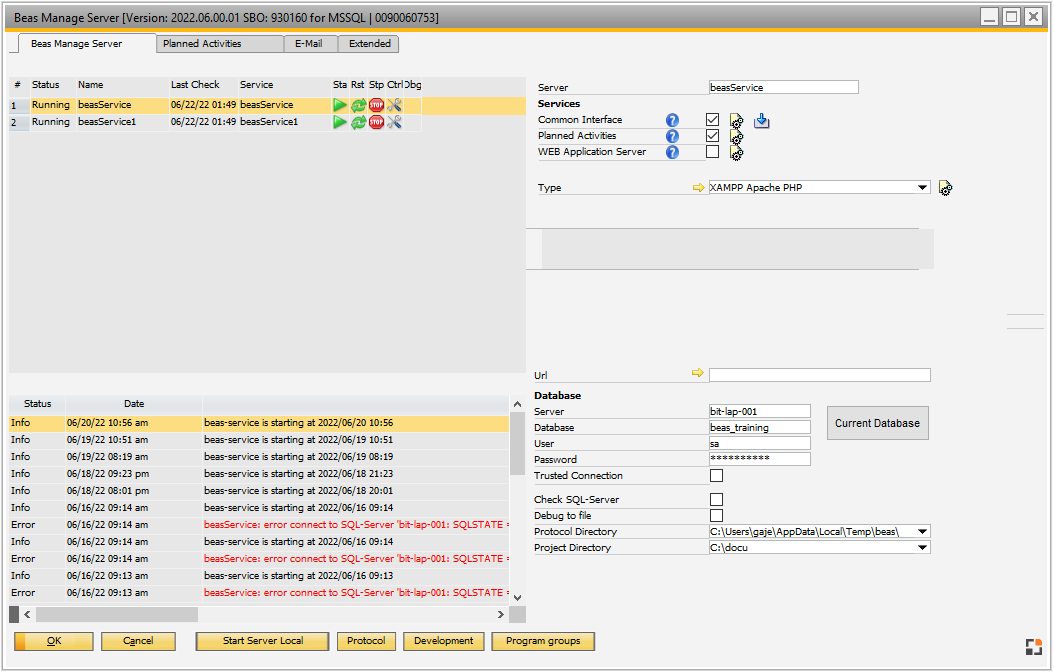

All installed services on the current server / PC are in this list.

Field	Description
Status	Status of service (started, stopped, etc.)
Name	Displayed name of service
Type	Type of service (IIS, Tomcat, Apache)
Last Check	Time of last check
Start, Stop, Restart and Control-Center	Buttons to control the service, call up configuration of Tomcat or XAMPP. Notes on service Service settings are saved on the setup work station or server. These are usual Windows-Services.   The service logs on to the stored database; it does not necessarily have to be the current database.   If the service is not starting, proceed as follows: 1.Try to re-start 2.Uninstall service 3.Re-start Server / PC (mandatory) 4.Re-install service   For additional information See Troubleshooting on services.

Change settings of the selected service from the list.

Field	Description
Server	Displayed name of server
Services
Common Interface	Start common interface Use this to connect external systems. Beas processes can be asynchronized, as well.   When activating this service, the following features are automatically moved to this service: WEB APP printing WEB APP all SAP transactions (asynchronous working) Batch-calculation Price lists - Entries   Additionally, it can be used for communication between Beas and a third program.   Overload and deadlocks can be avoided by using asynchronous processing.   Clicking the icon opens the following window to set Max. Records: Window syste_common_dashboard.psr   Clicking the icon below opens the "Beas common service test" window for script editing: :   Attention: Start this service only once!
Planned activities	Execution of planned activities. The next field indicates the interval of query. Clicking the icon opens the Planned activities window.
WEB Application Server	Activate the Web Application service - For WebApp Terminal 1.0, 2.1 and WEB Product Configurator - Activate all Rest Services and ODATA   Note: This is an HTTP Server that does not support HTTPS Protocol. If you need HTTPS, you must use a "Router" between Client and Server, which translates the HTTPS to HTTP protocol.   If the user connects to the WEB Application, the current WEB Session has full access to the Beas Service Layer. The user has the possibility to manipulate the session and then receive full access to all Beas Service layer functions. Attention: Do not use this for access from outside. This is ONLY an Intranet solution. For higher security, you must use a middle layer, in which you can define the access rules.

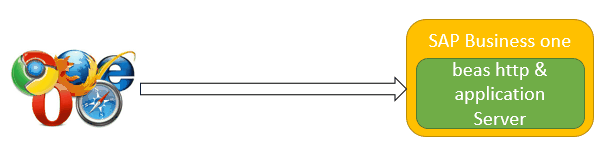

Type	Determines the type of HTML Server The following types are available:   Internal HTTP Service Beas has an integrated WEB Server. This web server does not need any additional tools or interfaces. It is entirely integrated and fast.     Limitations: It works only with HTTP and not with HTTPS. If HTTPS is necessary, an Apache server can be used as a Proxi Server. Certain services run ONLY with the internal HTTP Server, for example the WEB Product configurator or REST Services.   See internal HTTP Server   Alternative see Other HTTP Services (compatibility mode)
WEB Application V2.1 Configurator BSL Service	Display the complete IP Address for the related Application Icons: - Question Mark: More information - Arrow: Open this Application in default browser - Clipboard: Copy IP Address in Clipboard
Web Server Port	Every HTTP Service needs an own port. Standard is 80 or 8080.  Define the Server Port for this HTTP Server Service It is important to use a HTTP Port, which is not used by other services, otherwise the HTTP Service cannot be started. In many cases Port 80 and 8080 are used from other HTTP services. Use Tools > WEB Server to check which port is free.   If you need more then one WEB Service then you need for every service an another Port Number.
BSL Password	For using BSL Service (ODATA Service) outside the Terminal WEB Application, you need a password. You can define additional Login Rule in Tab "Extended".
Database	All settings for login to SQL database.
Database	the database in use
Server User Password Trusted connection	Connection information to the SQL Server. Click on Button "Current Database" to connect to current connection information   It is possible to create service for another SQL Server. In this case, insert all  connection information from the SQL Server.
Check SQL-Server	Check if SQL Server is running on the same machine before connecting to the server Note: This checks the running services on the current machine. Only working if the services and the SQL Server are running on the same machine and only one SQL server instance is activated. Only compatible with MSSQL.
Debug to file	Activate debug log to file It is possible to activate the debug to file for every service. In the Protocol directory you can define the path for the log. Notes:  - If you activate this for more than one Service, use a different folder for each service. - The log can grow to be a large file in a short time. Activate the debug log only if it is necessary and always remember to disable it. - Web service is slow if the Debug log is active. For more information see System Information.   Available from 2020.05.
Protocol directory	This is the folder where the protocol is stored and the log file is saved.   Select a directory to which both the service and the application have access. It is best to choose a directory which was not created by Windows.   You can also select the directory in System information > Settings tab.
Project directory	Directory for customizations. Normally, the project directory is located at %allusers%. In service mode, this directory is located under Windows\ with resulting access issues. For this reason, the directory must be specified here. Beas generally adds the files to the correct directory. The Service User need access to this project folder.

Functions

Protocol contains the following information:

•Start / Logon information from Services

•Error messages

•IP-address of current server

•For Apache: monitored ports

•For Apache: error log of Apache Servers

While starting process the service records all log information in the "Protocol Directory" folder.

This window reads the information from this file and inserts this in the Beas Protocol and displays the information in this area.

Note:

If the service does not have an active SQL connection, it uses the "Protocol Directory".

This only works if the Service has access to this folder.
It is important for every user to have access to this folder, especially the service user.

Note on licensing:

SAP B1: Per server one SAP Indirect license is required.

Beas: Depending on the used app the respective license needs to be purchased per parallel connection.

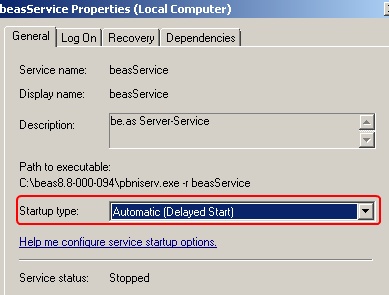

After the service was installed, in Windows–Service the settings need to be adapted:

- Windows - Service

- Set Startup-Type to "automatic (delayed)

If problems occur with the server connection or contacting the local printer, set to "logon" with account and name / password of the user who runs the services.

IMPORTANT: set up a separate user, start Beas once with this user to set up the environment variables. If the password of this user is changed, the password needs to be changed here, as well.

If the service does not start:

•Restart PC/Server

•Check login: Windows Service / Logon  - if "this account" was selected: is the password correct?

•After an update: uninstall the service - restart PC - install service and check the entry

•View Server administration - Protocol

•In case of SQL-errors: Windows-Service: switch logon to "this account" – see Installation.
