View tab

Function is only available if "calculation schema per assembly" has been activated in the calculation schema. The default view displays standard calculation without showing additional costs.

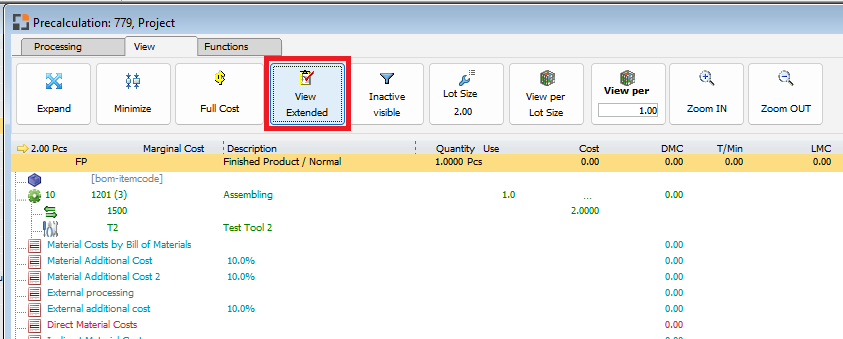

The extended view displays the results that were deposited in the calculation schema in the "View" tab. For more information see Pre-calculation Extended view.

Window pk_struktur.psr

Boyum Style design:

Calculation per assembly webinar .

A calculation can be made simultaneously in a maximum of 4 lot sizes. The default lot size is the calculation lot size as per the item master - Calculation.

If the calculation is called up from a quotation or an order, the quantity stored there is the lot size.
For further information on lot sizes see Lot size - concept.

This is the maximum individual quantity that can be produced without interruption.

View per

With "View per" you can define, for which count you want to see the price.

Example 1:

You must create a quotation for 1, 10, 50 and 100 and need the price per 1.

1. Define Lot size 1,10, 50 and 100

2. Define View per to 1

Now you can display the cost per 1 for different quantities.

Example 2:

You have a max. lot size for 100 Pcs and must create a quotation for 1000 Pcs and you need the total price for 1000

1. Define Lot size 100

2. Define View per to 1000

Now you can the the total costs for 1000
In this case the system multiplicity the setup times, fix times and fix surcharges with 10, because you must produce this product 10 times to deliver 1000 Pcs.

Switching between lot sizes and view

Change Lot size

- in calculation view on text "Lotsize" (1)

- in tab "view" - Lotsize (2)

Change View

In tab "view" click on

- (3) "View per Lot size": display always total costs by lot size

- (4) "View per x": you can insert the count of Pcs, for which you see the price, example "1" means: Display the price per Pcs.

If the subassembly has a lot size, too, this will be considered under following conditions:

Cursor on first row

If the cursor is on the first row, the complete calculation is deleted.

Deletion is prevented if:

- there is a reference ( via reference number) to a sales order or to a quotation

- calculation is linked to a work order position

- the variable "e_kalkdel" was set to "N"

- windowevent userdel returns "return failure" or sets the variable "value" to -1

Before deletion there is a double security query also in case of master/slave relation.
Alternative, parallel resources and tools are removed along with removing an operation.

Cursor on a different row:

Current row or its substructure is deleted.
