General

Determines the requirement in input UoM per assembly in input unit (See Input UoM , Units of measure )

Calculation of total quantity

The total quantity is always in inventory UoM

Calculation is

total quantity = input UoM

* Conversion factor to production UoM

* Scrap % (formula: see scrap%)

* Conversion factor to inventory UoM

* (Quantity from work order position * Conversion factor to inventory UoM)

: Quanity per (see per)

+ fixed quantity surchase

IMPORTANT: When an UoM Group is defined for an item, the UoM Conversion is applied based on SAP definitions and NOT the conversions defined in Beas.

Not planned Material position (Quantity = 0)

By-products, coproducts, disassembly (negative quantity)

Sometimes you need to indicate that several products are a result of a work order. These products can be: •Co-product: Usable product, automatically generated during the production of the main product. •By-product: A product that occurs incidentally or undesirably during the manufacturing of the main product. •Dismantling: Disassembly of assemblies and return of components to the inventory. In these cases, the BoM quantity is entered as a negative entry.   Negative BoM quantity behavior Procedure or module Negative Bom quantity is treated as Order recommendations Planned receipts. Backflushing Posted automatically or manually. Work order structure Displayed in the same color as assemblies but with another icon. Displayed positive (as receipt). Posting Manually, backflushed or posted in via collective receipt. See Collective receipt. Merging work orders Individual receipts are inserted as negative BoM items and posted correctly to the WIA account. Sales order Negative items can be reserved for sales orders. Pre-calculation Valued according to Configuration wizard > Precalculation > Value negative quantity. Post-calculation Valuation based on post-calculation is not possible.   Order related sub assemblies A Bill of materials position can be a sub-assembly with own Bill of materials list and Routing position.   How to manage this  in the areas: Procedure or module Result Pre-calculation Bill of materials defined as receipt (negative costs) Valued according to Configuration wizard > Precalculation > Value negative quantity. Routing positions cannot produce negative costs. These are always zero. Post-calculation Planned cost: Bill of Materials: negative costs Routing position: zero Real costs: Bill of Materials: Sum of all transactions Routing position: Sum of all time receipts. It can only be positive value.   Configuration example for disassembly: For disassembly there is no main product. Use a service item (not storage-related) and define the resulting products in the BoM. Expected quantities are entered as negative.   Service item |_ Product 1 |_ Product 2     Configuration example for a by-product: For by-products indicate a main product on top level. This way you can work with offcut and reuse waste material.   Main item |_ Material |_ By-product

Information on field names

INPUT_QTY, QUANTITY_USE

Note:

If an issue or receipt document is created for this position or the position has order-related sub-assemblies, it is not possible to change the quantity.

INPUT_QTY, QUANTITY_USE

The quantity specification relates to the assembly quantity x the factor specified here.

At quantity 2 and "Quantity per 10 pieces", 2 pieces are needed per 10 assemblies. The default for "Quantity per" can be stored in the options.

Requirement (quantity per) means: how much material is needed per assembly (quantity given in "quantity per")

Assembly quantity "1" relates to the consumption unit of the assembly

BoM quantity relates to the consumption unit of the BoM item

Quantity per = 0

Entered quantity = Total quantity

Note: It is recommended to use "fixed quantity surcharge" instead of 0.

Quantity per = 1

Entered quantity * Assemblies to be produced in Production UoM

Quantity per > 1

Entered quantity * Assemblies to be produced in Production UoM
                 : Quantity per

MENGE_JE

This is the field right of Quantity without title.

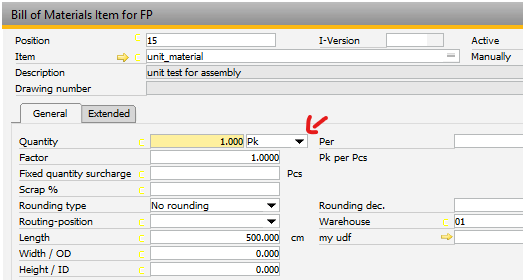

Here you can choose the Unit of Measurement, in which you want to define the needed Quantity (See field Quantity)

Standard is Production UoM See: Units of measure

Inventory / Bill of Materials

Precalculation

Work order

UoM Conversion

If Unit of Measurement Group  is defined in the Master Data of this Material, the system tries to use the conversion factor defined in the UoM Group.

If it is not stored there, the system searches the UoM Conversion table. If it does not exist, the system searches the opposite in the same table and creates the formula

  "1 : [the defined formula]

If the opposite does not exist, the system returns an error and continues with Conversion factor 1.

Note on UoM Groups
In Bill of Materials you can define the Quantity in Input Unit. This will be converted in Production UoM and this in Inventory UoM.

Problem: If the Production UoM is not the same as the Inventory UoM and the Input UoM is not Production UoM, the system cannot find an entry in the UoM Group. In this case, the system searches for the conversion in the UoM Conversion table to convert the quantity from Input Unit to production Unit.

Unit factor and UoM Tool tip

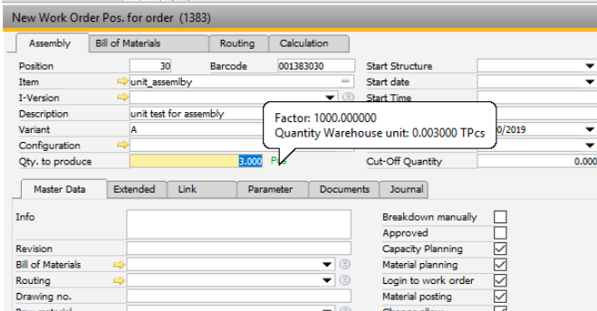

In the work order position, the system displays the unit in green which means that the unit factor is inside (see image below). Moving the mouse over this field, the system displays a tool tip with information on the factor and the UoM (see image below).

The system can calculate with 20 decimals rounded up to 6 decimals for display.

When you change the UoM, the system calculates the Quantity and the factor automatically (see image below).

The new Quantity is based on the current production unit.

NOTE: This is only possible if a Conversion factor was defined previously).

Example:

Conversion: 1 TPcs =1000 Pcs

Old Qty = 2000 Pcs

Change UoM to TPcs. The System display Quantity = 2 TPcs

If the Quantity in TPcs is changed, the system calculate the Production UoM and from this the Inventory UoM

If length/width/height, density or item code self is changed, the base quantity is always the quantity in Production UoM and the system always calculates  the quantity in the Production UoM and Inventory UoM.

Only in Master Data and Precalculation:

Displayed only if consumption unit and entry unit are different.

Enter the conversion factor between the quantity indicated here and the consumption unit. Quantity is divided by the indicated factor.

12 decimal places are supported.

Example

Quantity 10, Factor 5

Results in a Requirement of 2 in consumption units of the material position per consumption unit if the assembly.

Note: The "Exceeding planned quantity allowed" production configuration setting affects the Conversion factor: The Minimum/Maximum percentage is calculated based on total quantity. see Configuration setting.

BEAS_STL.INPUT_FACTOR

Share of the surcharge – used for the Precalculation and production.

The scrap factor at assemblies relates not the assembly, but only to its material requirement.

The scrap is calculated per lot size:

Example:

Assembly lot size 500, required 1000, scrap 1 in assembly equals to 1 per 500 = 2
There is a total requirement of 1002 if a material 1x per assembly is required

This value will be calculated in production and cannot be changed.

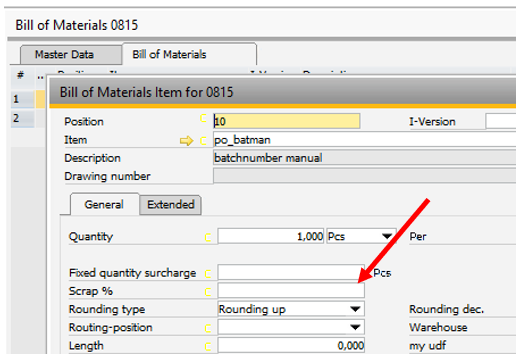

Indicate material scrap which is added to the calculated requirement.


Note:

This field is visible in Master Data and Pre Calculation.

In work order you can see the calculated Scrap

You can set the formula to be used in the Configuration Wizard.

You can define follow formula:

Scrap = Quantity * ( Scrap % )    (=default setting)

Scrap = Quantity / ( 1 - Scrap%/100 )

Example:

Definition with Scrap = Quantity * ( Scrap % )

Requirement: 10 Pcs
Scrap: 10%

Total requirement: 11 Pcs

Definition with Scrap = Quantity / ( 1 - Scrap% / 100 )

Requirement: 10 Pcs

Scrap 10%

Total requirement:

This value is calculated when the work order is created. It cannot be changed; it is a one-time surcharge.

(Assembly quantity * BoM quantity) + "calculated scrap"

If the assembly quantity is changed, the "calculated scrap" does not change. To re-calculate, a Work order update is required.

See

- scrap factors in routing, see Routing - material scrap

- scrap of superordinate assembly or phantom assembly, see Scrap

- offcut factor of superordinate assembly or phantom assembly, see Offcut factor

For purchase parts additionally

- scrap as per master data, see Scrap

- off-cut factor as per item master, see Offcut factor

Note: If in BoM position "Do not post scrap" is activated, scrap will not be determined.

See:

Master data – edit BoM

Offcut

Option consider offcut

The rounding rule can be defined here.

The following settings are available:

Bom Rounding function

Examples

Example 1:

A palette per 100 pieces is required
Quantity of requirement corresponds 0.01 palette per piece. But at least one palette has always to be required and from 101 pieces even 2 palettes. The BOM position will be adjusted as following for this:

Quantity: 0,01
Rounding type: multiple of
Rounding Dec. 100

Example 2:

A half piece is required. because there is no half piece. It must always be rounded up to 0 decimal place because there is no half piece.

Thus a requirement of 0,8 will actually be rounded up to 1 piece.

The following setting occurs:

Rounding type: round up

Rounding Dec: 0

Note:

Negative statement of decimal places are not supported.

Rounding results are always in Inventory UoM.

For backflushed material, the material is issued on receipt of this routing position. The MRP run and APS consider the start date of this operation when calculating the material requirement.

Phantom assembly group:

Routing-assignments work with restrictions for nested phantom assemblies: The routing assignment of the above located main assembly group always applies instead of the phantom assembly group assignment within a sub-phantom assembly group.

Master data:

Which routing is to be used can be defined in the BOM. The routing with the same ID will be used if none have been defined. A checking of the assignment is not possible because a routing can be assigned to multiple Bill of materials. The assignment will not be checked even at a change of a routing.

Production:

Assignment is always done at the routing of the current production position.

Only in Work order Bill of Material window

More information see concept "Total Quantity"

If a warehouse is specified, the material is issued from this warehouse by default when backflushing. Warehouse information is mandatory.

You can choose any warehouse defined for this item, and active on item-warehouse side and active on warehouse side.

It is allowed to select a warehouse, which is locked for issue transactions.

MRP checks the warehouse defined in the BoM Position.

Precalculation: It is possible to select locked warehouses.

If the material position is an order-related sub-assembly, the system creates a new work order position for this sub-assembly but does not take the warehouse from the Bill of materials position.
For the new work order position, the system uses the standard rules for warehouse definition. See warehouse rules.

Example:
  Assembly A, default Warehouse 01

      BoM Order-related Assembly B, default Warehouse = 01, Bill of Materials Warehouse 07

If you create a work order:

 Work order Position 10: Assembly A = Warehouse 01

      Bill of Material Position 10: Warehouse 07

 Work order Position 20: Warehouse 01

Note: At "Production backflushing" you can specify an issue warehouse which has a higher priority.

See Production backflushing

A work order created from an Item, or Precalculation copies this field automatically for the BoM.

If there is not enough stock to pre-assign quantities from this, pre-defined bin location, Beas continues to pre-assign them from further bin locations based on the sorting rules.

Determines the measurements of the materials.
The requirement of the consumption unit can be indicated. The required quantity in warehouse unit can be defined in Quantity unit - Conversion

The measurement can be indicated in the conversion.

e.g.

Requirement: 100mm (Consumption unit)

Conversion to piece: 1 piece = 1000mm

A requirement of 0.1 piece is then determined.

It is set automatically according to the settings if the default quantity has been reached. The completed BOM positions are no longer considered in the material requirement list and MRP.

This field is unnamed in the basic installation. The name of the field can be configured in Configuration Wizard > Master Data > Bill of Materials > View > Info Field.

Only available in Work order Bill of Material position

Displays if the Position is closed or not

if this position not closed, you can close this position

If you want to reactivate this Bill of Material position, you must choose "right mouse click" – "Position re-activate"
