WO structure context menu

Production > Work order general > WO structure > WO structure context menu

Top  Previous  Next
Expand/Collapse Toggles

The work order structure and icons are described in Work order structure.



Right-click menu

Right-click on a work order to get the Beas context menu options with the following tabs:

Traditional style

Boyum Style

context_1

WO_rightclick_2023.04



1.Context-sensitive basic functions

2.Context-sensitive extended functions

3.Context-sensitive expand functions

4.General functions

5.Export functions

6.Template administration (when available)

7.Business One Usability Package (when available)



General, export and template functions are generic in Beas and are described in Right-click menu.



Work order are displayed with black text. The represent the highest level in the work order structure. Right-click on a work order line to see the available context menu options.

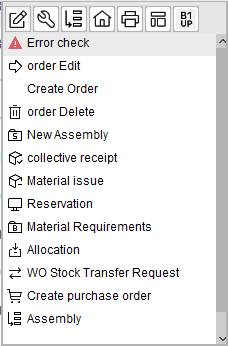

1. Right-click menu basic functions on an open and a closed work order


Traditional style

Boyum Style

Tab 1



Open WO

WO_rightclick_SAPStyle

WO_rightclick_2023.04_02

Tab 1



Closed WO

context_6

WO_rightclick_2023.04_02_b



Functions

Function

Description

Error check

order edit

Edit the work order.

Create order

Create a new order.

order delete

Delete the order. Can only be used if no report has been received on the work order up to this point.

New Assembly xx/xx

Insert a copied assembly to this work order. The assembly is inserted with the original quantity directly in the work order.

See WO Structure copy assembly

Sales Order no. X

If there is a link to a sales order, it can be opened directly.

APS Gantt view

Open the Gantt view of the selected work order.

Material issue

Open the Reservation / issue window.

Reservation

Open the Reservation window.

Material requirement

Open the Material requirements list.

Allocation

Open Allocation list.

WO Stock transfer request

Complaint create

Create purchase order

Link serial number

Open the screen to link material batches/serial numbers to manufacturing items.

Search for structure

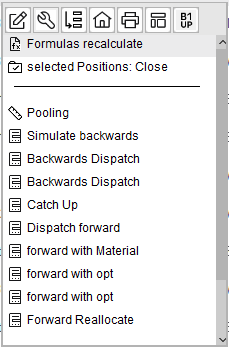

2. Right-click menu extended function on a work order


Traditional style

Boyum Style

Tab 2



Open and Closed WO

WO_structure_ref_RIGHTCLICK_02

WO_rightclick_2023.04_03



Functions

Function

Description

Structure refresh



Selected work orders are refreshed. See Work order item - Function Refresh. This function is only visible if at least one item is selected (Ctrl or Shift + Click), and if it is not disabled in the Configuration wizard. See WO Refresh settings.

Formulas new calculate

Re-calculate all stored formulas for the selected work orders. See Work order item - Function re-calculate formulas. Function is only visible with at least one item marked (Ctrl or Shift + click)

Selected positions:close

Close selected items / work orders.

Pooling

Simulate backwards

Backwards dispatch

Dispatch forward

reallocate forward

Catch up

Error – Protocol

All protocol entries and error messages for the work order are displayed here.

Error – Protocol Abort

Open error log for this work order. This function may be needed if all errors have been cleared, but a subsequent check is required.

Status error delete Abort

Delete error status. Can be used if the log was removed or the error status was set without reason and could not be cleared. Only visible when the error status is active.

(beas9.0-000-003-002)



3. Right-click menu expand function on a work order


Traditional style

Boyum Style

Tab 3



Open and Closed WO

context_9

WO_rightclick_2023.04_04



Functions

Function

Description

Assembly

Expand the assembly only.

In the Configuration wizard you can define the maximum number of positions to be displayed per work order.

Assembly, BoM and routing

Expand the assembly, BoM and routing.

Complete



Also see Configuration of WO structure view
