This list shows in which parts list the current article is located. If the parts list is in another parts list, these are also displayed. This is done up to a structure depth of 20.

This makes it possible to determine exactly which articles / parts lists are affected by the change of the article and this through all structures. This can be used e.g. for release mechanisms.



PATH: Inventory > Bill of Materials.

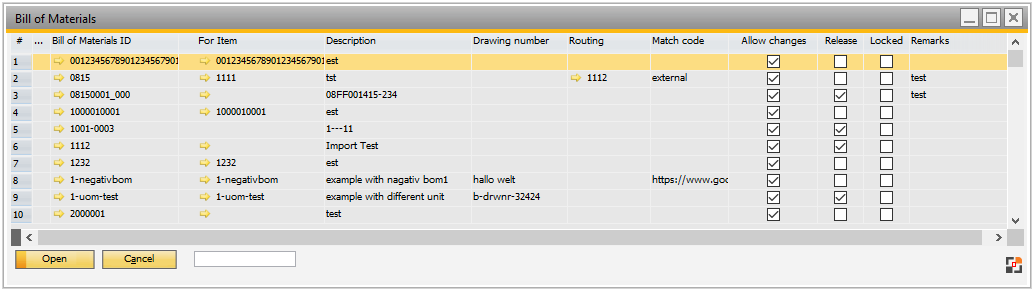

BOM_browse_2022.06

Window stamm_stlheader_browse.psr



Example:

Item rm01s is inside Assembly SFP_B_O and this is inside FPS_B_O

if you change rm01s, then you change all items, which use this item, example FPS_B_O



Traditional style

Boyum Style

usedin_structure

BoM_struc_2023.04

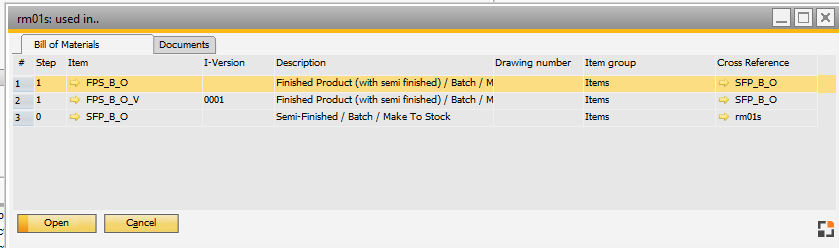

In this example you can see the following result:

SFP_B_O -> from rm01s

FPS_B_O -> from SFP_B_O

FPS_B_O_V Version 0001 with same assembly SFP_B_I


usedin_result

Window stamm_stlheader_browse.psr



Fields

The list of fields supports Window settings and Templates. See field descriptions in Bill of Materials – Edit.

Item Version supported.



Right-click functions and buttons

Function

Description

Open

Edit selected BoM.

Cancel

Close window without saving changes.

Add

Opens the Master Data window for a new Bill of Materials.

Remove

Delete selected BoM.

Search

Search field for BoM entries.

Cross Reference

Opens the BoM cross reference window.

Bill of Materials list of differences

Opens the BoM list of differences window.

Bill of Materials Batch changes

Opens the Change Bill of Materials window.

Duplicate to

Opens the Bill of Materials: Copy window.

Insert From

Opens the Bill of Materials / Routing: Import window.



Import

Opens the "CAD Import window". For more information on CAD Integration in the BOM administration see CAD Import..



See

Configuration wizard BoM



youtube BoM Rounding function
