Use this method to process all measurements for all samples subsequently.



PATH: Production > Quality Control > QC Orders > Open an entry > Input by test button

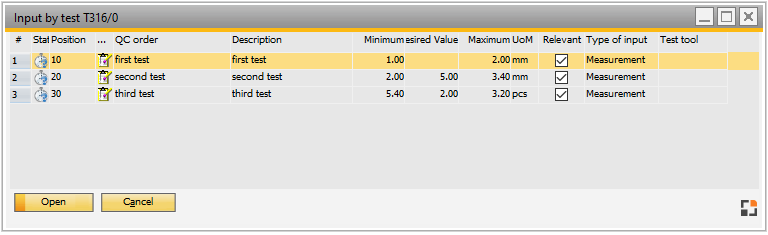

Input_By_Test_SAPStyle

Window qs_qsftpos_browse.psr



Measurement positions are displayed in the list. If one position is selected and edited, all samples are displayed for this measurement position in the window Measurement per test.

Grouped by position text, even if measurement positions are different. Please make sure the measurement positions do not differ too much within one sample.

Window is dynamically adjustable. Templates can be stored. The authorization for QC-order is required.



User example:
You have  a QC order with 4 Measurements positions.

There is a Goods receipt with 10 Serial Numbers, and you have 1 Sample per 1 Serial Number.

Produce 10 Samples / Measurements



TO DO: Create Measurement 1 on all 10 Serial Numbers and then Measurement 2... on all 10 Serial Numbers.



Field

Meaning

Status

Registration status of measurement position.

Position

Alphanumeric text of measurement position.

Icon

Bitmap of measurement position.

QC order

QC order name.

Minimum/Desired/Maximum EH

Minimum, Desired and maximum values and registration unit.

Relevant

Is the registration relevant for release?

Type of entry

Text, Measurement, attribute.

Test tool

Used tool.

UDF 1..4

Display UDFs.

Additional fields can be displayed using window settings.



Functions

Button

Meaning

Open

Open Enter measured values window for all values of all samples of for this position.

Change log

The Change Log displays all changes for the Quality Control order.



Note: Registering measured values and release is performed by using the personnel number. A linkage between User and Personnel number is mandatory.



See our QC by Test WebApp dedicated to this function.

youtube QC by Sample - QC by Test - QC Transfer (WebApps 2.1) demonstration
