With this app the user can create a Delivery Document from the reserved quantity on a sales order or a Picking list.
Note: Button Save does not exist because with every selection we make reservations directly in the Beas reservation system.
See also: Issue / Reservations screen
See basic WebApp controls in General Information on WEB APPS Version 2.1.
See Configuration wizard settings of the Web Terminal.
Important: Prior to using this app, the user must decide whether to use Picking List SAP or Sales order as the Source document for delivery.
You can perform the setting as follows:

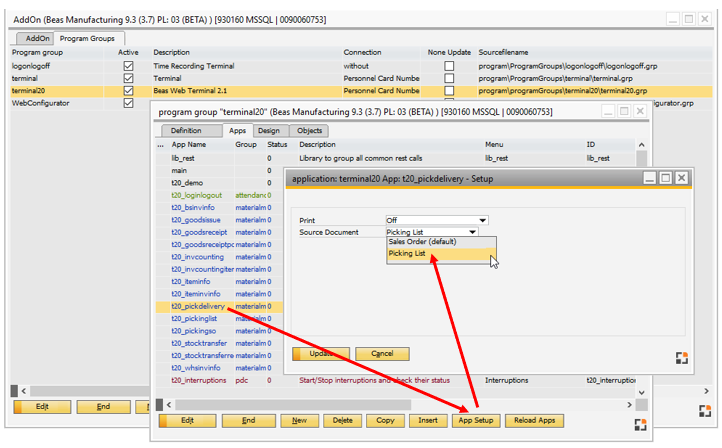

1. Go to: Administration > Add-Ons > Add-on-Manager (beas)
2. "Edit" terminal20
3. Select the "Apps" tab
4. Click "App Setup" for t20_pickdelivery
5. Select Picking List or Sales Order from the "Source Document" drop-down field.
Window webwindow_user_setup.psr

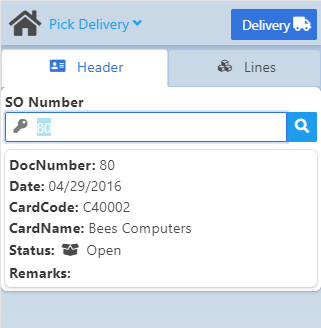

Header tab
In this tab you can identify the Sales Order or Picking list.
As the above setting allows to work with this app based on sales order or picking list, only one at a time is possible.
Field Descriptions
Field
|
Description
|
SO Number
|
Filter field for Sales orders
|
DocNumber
|
The number of the Sales order document in SAP
|
Date
|
Displays the creation date of the Sales order document
|
CardCode
|
Customer code
|
CardName
|
Customer name
|
Status
|
Only "Open" status lists are displayed
|
Remarks
|
Free text.
|
|

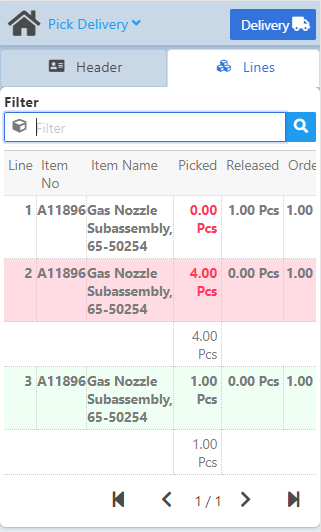

Lines tab
This tab displays a List of items (Read only).
The Items reserved from the original document are just shown as information.
Limitation:
WMS picking process does not support Beas I-Version control.
Field Descriptions
Field
|
Description
|
Line
|
Line number in the delivery document
|
Item No
|
Item number
|
Item Name
|
(Descriptive) Item name
|
Picked
|
Picked quantity
|
Released
|
Released quantity
|
Ordered
|
Ordered quantity
|
WhsCode
|
Warehouse code
|
Note: Function of_transfer is not ready to generate documents based on an existing SAP base document for the same item and warehouse in different bin locations as each bin location takes lines in the Pick Delivery app.
The reason is that SAP does not allow more than one (summing) line for the item in the delivery note. A solution to this limitation is under planning.
Delivery button (top right): When the user taps this button, the system generates the delivery document with all reserved lines.

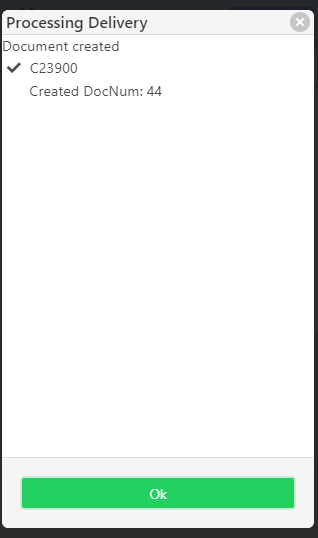

Once the document is created, the system displays a confirmation message on document creation or an error message.
|
Settings:
Source document
PATH: Administration > System Initialization > Configuration wizard > Terminal and WEB APP > Beas Web Terminal 2.1 > "App Setup".
Select the source document for the app:
- Sales order (default)
- Picking List
See also extended App Setup.
