App Setup - extended

In this window you can perform additional settings for the individual apps of a program group.

PATH: Administration > Utilities > Program groups Administration > select a program group > click App Setup button.

Set the following parameters for how the apps should be displayed in the list:

PATH: Administration > Utilities > Program groups Administration > select "terminal" > click Setup button.

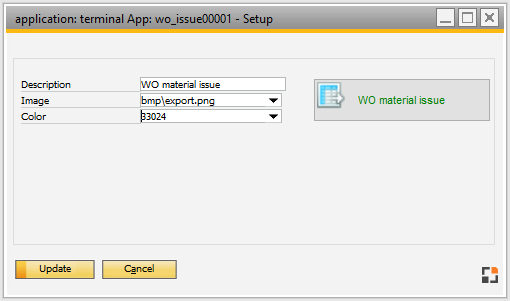

App_Setup_Terminal_edit_2022.06

Window webwindow_user_setup.psr

Description: Enter a description to appear in the list for this app.
Image: Select an icon to appear in the list for this app.

Color: Configure a color that displays the text for this app in the list.
When the definition is empty, the preview on the right reads "none".

PATH: Administration > Utilities > Program groups Administration > select "terminal20" > click Setup button.

Print extended settings

PATH: Administration > System Initialization > Configuration wizard > Terminal and WEB APP > Beas Web Terminal 2.1 > "App Setup".

-Crystal reports: Uses Beas Crystal reports

-RTF: Prints in RTF-Format

-Automatic: Uses the Beas printing format

If you select Crystal / RTF, more tabs appear:

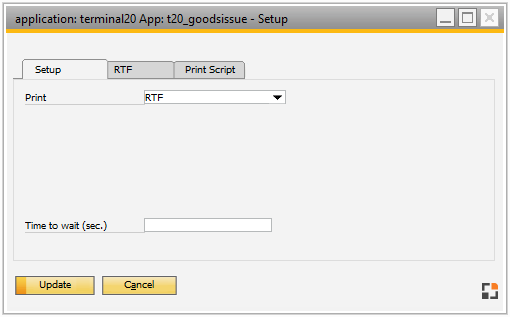

App_Setup_Terminal_edit_tabs_2022.06

Window webwindow_user_setup.psr

RTF: Enter formatted text

Print Script: A script scan be stored, which is called before printing. Set parameters: shtml=print=set=[variable name]=[variable value]

See detailed description of these options and other setting in the WebApps 2.1 help chapter Print Solution.

For additional settings available in this window for each WebApp, see individual WebApp 2.1 app descriptions.

PATH: Administration > Utilities > Program groups Administration > select "WebConfigurator" > click Setup button.

Select print settings for the Web Product Configurator.
