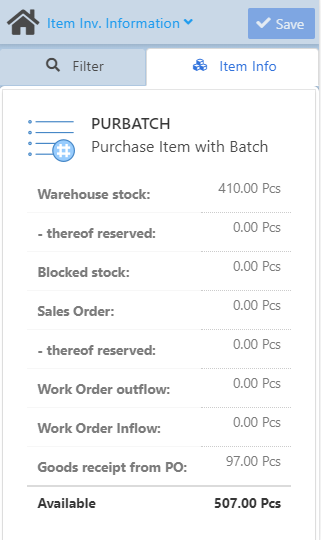

The item name is located top left in the Item Info tab screen. The type of item is indicated as a brief description in smaller font under the Item name – see image below: "Purchase item with batch"
The upper section of the screen gives a summary of all available warehouse stock by breaking it down to blocked stock, *thereof reserved stock, WO inflow / outflow quantities, Sales Order and SO reserved stock counted in the Unit of Measure set in the Master Data. The summary also contains quantities coming from Goods Receipt from Purchase order (GRPO). Example: see image below: 97.00 Pcs come from GRPO.
IMPORTANT:
NOTE on WMS Integration:
*thereof reserved stock: This field considers all units available for WMS lock types Batch, LUID and Detail.
See
The lower screen section provides a breakdown view into the single warehouses where the stock (without GRPO) is distributed. Scroll down to see stock distribution.
Example: see image below: Out of the 153.90 Pcs distributed in the various warehouses, General Warehouse 1 (with Warehouse code: 01) contains 20.00 Pcs of the item.
In case of batch/serial-managed items, it is possible to tap on a specific warehouse line in the lower screen section.
This will open the Warehouse Info screen with a list showing available stock in the pre-defined unit of measure by batches/serials.
In case of items not managed by batches or serials, the system displays detailed information only for Beas warehouses. For normal and SAP Bin warehouses, the system does not display any additional information.

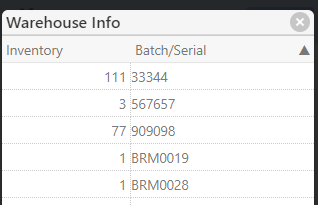

Warehouse Info screen:
Attachments:
Press the upload button to upload image or document files as attachments.
Note: You may need a proper viewer on your device to open the document (especially if you are using a mobile device).
Settings:
Show attachments:
PATH: Administration > System Initialization > Configuration wizard > Terminal and WEB APP > Beas Web Terminal 2.1 > "App Setup".
Activate check box to display attachments in the app.
|
