WO structure operation

Production > Work order general > WO structure > WO structure operation

 Top  Previous  Next
Expand/Collapse Toggles

Lower level in work order, entries in green.

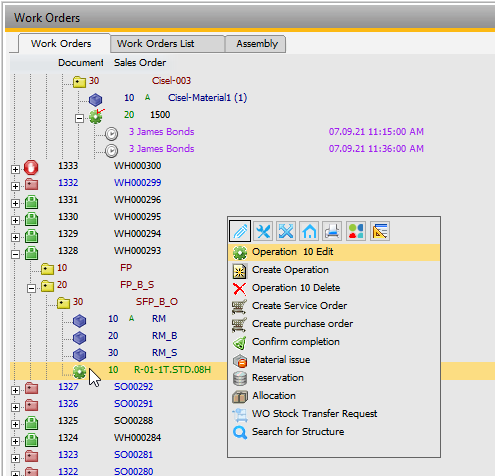

Traditional style

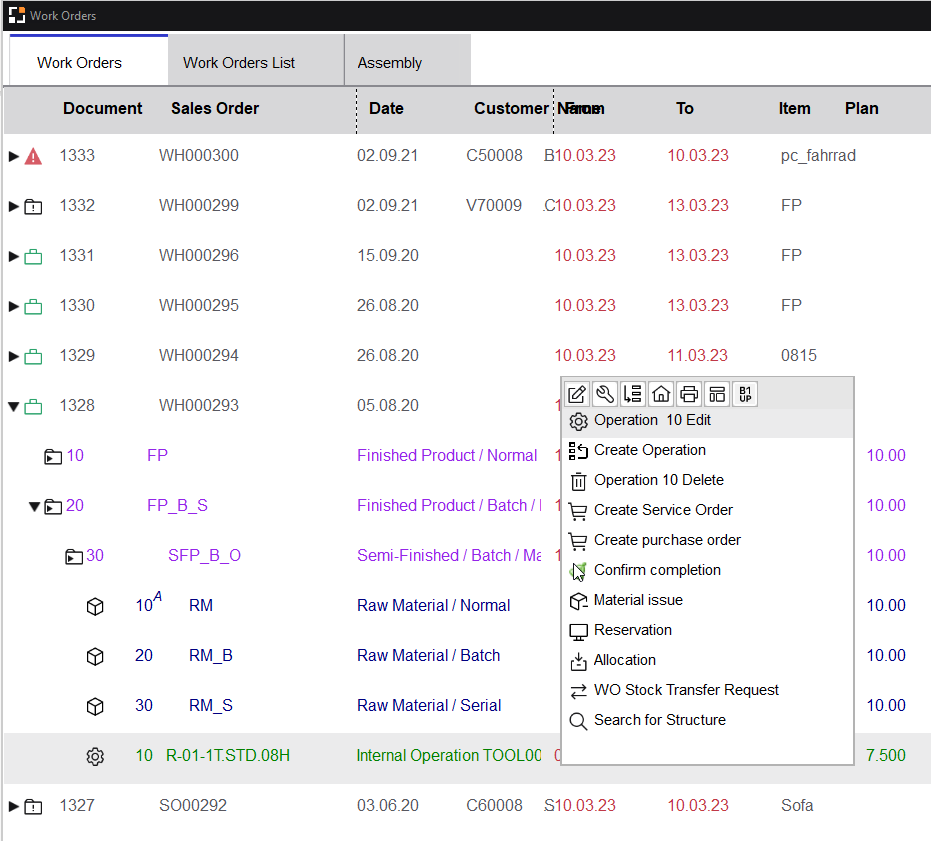

Boyum Style

WO_Operation_rightclick_02

WO_Operation_rightclick_Boyum





Note: If the work order position has been closed, or "Allow changes" was disabled, or authorizations are missing, all editing functions are disabled.



Right-click on operation

Function

Meaning

(External) Operation xx Edit

Click to edit the currently selected operation or external operation.

Create Operation

Insert new operation.

Operation xx delete

Deletes the operation.

Insert xxxx/xx/xx from 01.01.21 11:05

Insert the time receipt that was cut from under another operation.

Confirm completion

Available if Operation types > "Only confirm OK" setting is enabled.

Consider number of days: X

Defines the number of calendar days that are used when displaying resource utilization for the current view without changing the standard setting.

After reopening the window, the system returns to the standard setting.

Dispatches graphical view

Displays the graphical overview on utilization.

Dispatches

Shows all planned time reservations for this resource. The reservations are deposited behind the operation.

Search for structure

See above.

WO Stock transfer request

only if activated in WO structure view - Window settings - Inventory transfer request

Open the transfer request window.

Create Service Order

Create Service Order for this operation.



Click an entry to edit.



Routing link for phantom items:

When a phantom parent item has a routing link, all sub-assemblies apply the same definition of the parent.



If a tool is assigned to the operation, it is displayed below.

Icon

Boyum Style

Meaning

ferttool

tool7_2023_04

Tool.

menu_opportunuties

linkref_2023_04

Reference: receipt from production is linked to a sales order or to a WO item.

tool7

tool7_2023_04

Tool with enabled switch determines lead time.

operation_parallel

operation_parallel_2023_04

Parallel operation.

fertalternativ

replace_2023_04

Alternative resource.

clip0001

replace_2023_04

Alternative operation sequence with alternative resource.



Right-click on tool

Function

Meaning

Edit operation position

Edit currently selected operation.

Modify tool

Open tool master data.

Activate tool

Activate or de-activate the tool. All rules are considered as:

- determines lead time

- only one tool active

See Tool management.



Note: If there are several tool entries which affect lead time, only one tool can be activated. In case of activation, all time values stored in the tool are transferred to the routing position. Empty values in the operation are not changed.



Tool entries without the "determine lead time" feature enabled can be activated in parallel.



User events

With the following User events you can manipulate the behavior:

windowevent pretoolactivate before activation/De-activation. The process is canceled with "return failure". In variable "e_activ" you can store whether the toll should be activated (=1) or de-activated (=0).



Only user "manager" is allowed to change:

windowevent pretoolactivate
if <currentuser> <> manager then
  return failure
end if
end event





windowevent posttoolactivate is called after the process.



The structure view is dynamic, depending on the function (BoM, material postings, QC-order) different information is displayed. But the column header remains the same.

Operations are displayed in green. See overview on operation types.



The following information is displayed in the line of an operation:

Column

Description

Sales order

Icon Operation type right to it position number, resource ID.

Name

Activity description.

From

Start of processing time (without idle time, transfer).

To

End of processing time.

Colors: Date gray: operation is already closed or outside the period

              Date red: operation in the past (too late). The WO will not be finished in time

Plan

Calculate from the planned quantity * process time / Efficiency rate % + setup time. Already reported amounts or times are not pulled off.

Note: The unit of time to be displayed is adjustable in the Configuration wizard.

Current

Already reported times.

Drawing number

Shows dispatches of the related resource.

Type/Scrap

Reported yield and scrap quantity for this position.

For external operations the sum of all goods receipts is displayed.

Match code

Pool info: active or inactive. "Optional" for operations which do not need to be reported.



Below the operation several changes can be displayed.



Right-click above in the window (below the title line) opens the window settings for the structure view. See Configuration of WO structure view.
