Edit QC-inspection plan

  Master data sheet

 Master data

 Parallel
 Release

 Rules

         Execution

Measurement positions can have conditions. This can be a value which is determined here and stored in the measurement positions to be compared.

Only if the value matches, the measurement position is created.



PATH: Production > Quality control > QC inspection plan > Open an entry > "Master Data" tab > "Rule" tab.

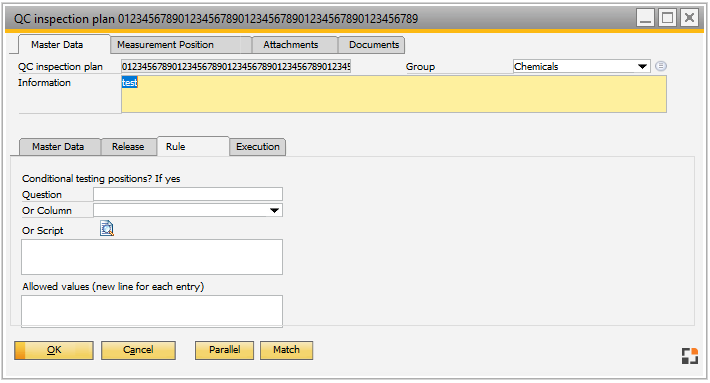

QC_inspection_plan_rule_SAPStyle

Window qs_qsartikelhaupt_edit.psr



Example: Question for "color," allowed values ​​"red" and "blue".

For measurement position 1 "red" and for 2 "blue" is entered.



When creating the QC order, if "blue" is selected to the question of color, only measuring position 2 will be created.

Alternatively, a script can be deposited or for work orders you refer to a data base field.



Note:

Parallel QC orders ignore the rules.



Field

Meaning

Question

Only if no field and no script was stored.

Messagebox with the question. The user can insert a value



Note:

Not supported in the WEB-application, WEB Services or if QC order created by SAP Transaction Notification procedure.

or Column

Select a Beas-field, from which values for checking are taken. Only considered for work orders of type E or F).

or Script

The variable "condition" is returned:

setvar=contidion=red



The following variables are available

e_qcorder = QC-order

e_typ = Type QC-order. see Types

e_itemcode = Item

e_base_belnr_id = work order document number (Type E or F)

e_base_belpos_id = work order number (Type E or F)

e_base_pos_id = operation (only Type F)

e_basetype = origin document (eg. posting document, goods receipt etc.)

e_basedocentry = origin document number

e_baselinenum =  line number in origin document number

e_baselinenum2 = line numer 2 ( for example work order item) in origin document number

e_basebasetype = caused by document



Note:

If a QC order is created per batch, the type is "B", but the origin document is a goods receipt. then basetype can differ from typ.



Note: Is not supported in the WEB-application if an input or an output has to be executed, because this is run by the server.

Allowed values (new line for each entry)

Allowed values for the above fields can be specified here.

One value per line, e.g.:

blue

green

red



Note: WEB-application is not supported.



Note:

No query can be displayed in the WEB-application. That is why these functions are not supported at the WEB-application.
