Available with Production Data Collection, Start, Interrupt, Completion, Finished Goods, Scrap license.
See Terminal settings in Configuration wizard.

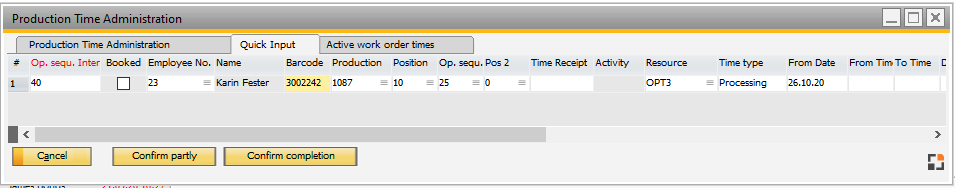

This app opens the Quick Input tab of the Production Time Administration window in a separate window.
The Quick Input tab is used to report several time receipts in a list form.
All fields available at the time receipt are also available in quick input but in a grid format. Each row is a time receipt and the columns are the fields.
For field descriptions see Production Time Receipt.
Several lines can be added with the required information and then the information is added to the database when the confirmation buttons are used.
PATH: Production > Factory Data Capture > Production Time Administration > "Quick Input" tab.
Window fert_arbzeit_schnellerfassung.psr
Button |
Description |
Cancel |
Closes the window without any action. |
Add |
Adds a new line. |
Delete |
Removes the selected line from the list. |
Confirm partly |
Part confirmation for all entered operations or complete confirmation if in the Close column a check mark was set. |
Confirm completion |
All operations on the provided list are posted and closed. |
Important: Parallel calculations and the automatic division of the reported times to resources does not work from this window. The time receipt must be created in the terminal. This setting is available in Configuration Wizard > Production > FDC > Parallel calculation.
Field |
Description |
|
Booked |
Check mark is displayed when booked. |
|
Pers.No. |
Employee number of person reporting the time receipt (setup in Attendance > Personnel ). |
|
Name |
Name of the employee. |
|
Default branch |
Default branch of the item. |
|
Barcode |
Bar code printed on the work order document (see Routing > position > extended > Barcode ). |
|
Production |
Work order number. |
|
Document |
Work order of the previously selected document. |
|
Position |
Position of the work order document. |
|
Op. sequ. |
Operation to be reported. |
|
Pos 2 |
Parallel resources of the operation (previously resource pos). |
|
Activity |
Reported activity. |
|
Resource |
|
|
Cost type |
Cost type on which costs are to be booked. |
|
Cost center |
Cost center to be charged (Business performance). |
|
Time type |
|
|
From Date |
Start date. |
|
To Date |
Date of valuation. |
|
From time |
Start time. |
|
To time |
End time. |
|
Duration |
Duration of work order time. Can be changed after calculation. |
|
External price |
External price. |
|
Valuation date |
Valuate to the specified. |
|
Closed |
Shows if the operation closed. |
|
Quantity yield |
Produced quantity that is free from defects. |
|
Quantity yield RE |
Entry quantity in entry units, defined in operation. See Production – Routing – Extended – Time receipt unit. |
|
Scrap |
Scrap quantity in reporting units. |
|
Unit |
Quantity unit. |
|
Item |
Item number. |
|
Information |
Additional information. |
|
Drawing number |
Optional field. |
