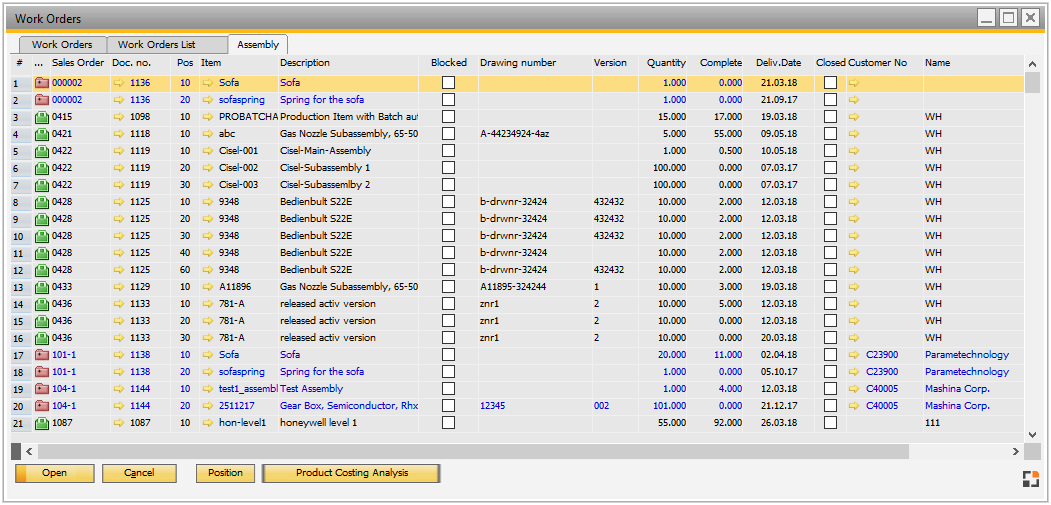

This tab provides a view on assemblies. In contrast to the Work order structure view, the Assembly list can be configured freely. Use windows settings to define the display order of selected columns. With the template system, additional formats and graphics are adjustable.
Multiple selection is possible, but affects only the function "Material requirement". This means that material requirement is displayed for all selected work orders.
PATH: Production > Work Orders > "Assembly" tab.
Window fert_fthaupt_browse.psr
Click on a row to open the document position to edit.
Field |
Meaning |
Position |
Unique position number. |
Sales order |
Number of the linked sales order. |
Doc. no. |
Work order number. |
Pos |
Position number in work order. |
Item |
Item number of the assembly. |
Description |
Item description as per item master. Can be changed here. |
Blocked |
Field is active if item is blocked. |
Drawing number |
|
Version |
Version number of the item (10 digit text field only for information purpose). |
Quantity |
Quantity to be produced in consumption units of the assembly.
|
Complete |
Completed. |
Deliv.Date |
Planned delivery date of the assembly. Date relates always to the upper level of the work order structure. |
Closed |
Production assembly closed. (in window settings "assembly closed") |
Customer No |
Customer number. |
Name |
Customer name. |
Priority |
Selected Priority for this assembly. |
Functions
Function |
Meaning |
|
Open |
Open work order item for editing. |
|
Material requirement |
Material requirement for all marked entries. |
|
Product Costing Analysis (in right-click menu: "Post calculation" |
Opens the WO post-calculation window. |
|

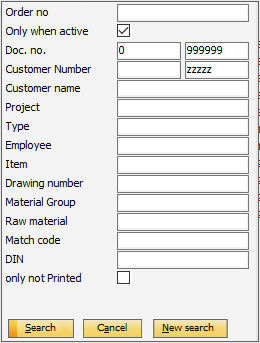

Search |
|
|
Position |
Opens the WO Position editing window. |
|
Reports |
Open the reports window. |
