Time Types

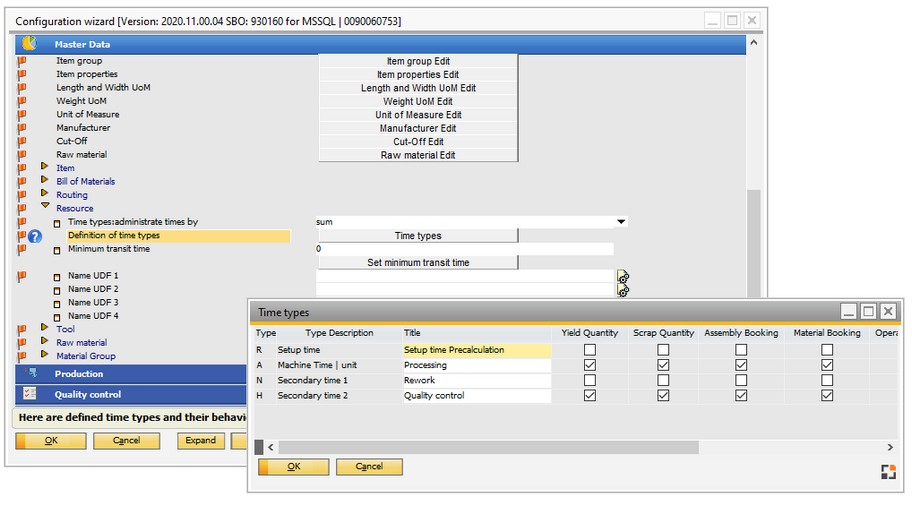

PATH: Administration > System Initialization > Configuration wizard > Master data > Resource > Time Types.

For each operation, up to 4 time types can be stored which can be valued with a proprietary cost rate, and to which feedback on costs and times can be reported separately.

Name

Description

Type

R	Setup time type with corresponding behavior in valuation and calculation. May only be used for setup purposes.
A	Editing time (machine time/unit). This corresponds to the main editing time, which is always active.
N	Secondary time/unit 1 for free use See Secondary time
H	Secondary time/unit 2 for free use See Secondary time

In Personnel master - FDC you can set up which time types the employee can select at Work order logon

See Time types - Administrate times

Description

Description field for the catego.ry

Designation

Displayed in routing position, operation

Note:

Enter the designation in German – it will be translated to other languages. Entries without available translations will be displayed as entered.

When creating a new database, the selected database language is used as default.

See Rounding

Yield Quantity

If not allowed, an error message pops up upon inserting a quantity.

(AE_checkqty) At the time type <name of time type> "no Yield Quantity" must be specified. Set value to 0 (See Setup Wizard > Master Data > resources > time types)

Scrap Quantity

If not allowed, an error message pops up upon inserting a quantity

(AE_checkqty) At the time type <name of time type> "no Yield Quantity" must be specified . Set value to 0 (See Setup Wizard > Master Data > resources > time types)

Post Assembly

Should it be posted in the finished part when creating a time receipt for this time type, according to the settings (e.g. last operation)?

Post Material

Should the material belonging to the routing position be backflushed in case of a time receipt for this time type?

Position Closeable

Should it be permitted to close the routing position if doing a time receipt for this time type? See Order time - Logoff

Release next work sequence

Should the next work sequence be released after time receipt for this time type? (Example: the following work sequence may not be released after setup)
