Measurement per

Production > Quality control > QC inspection plan > Edit QC inspection plan > QC inspection plan master data sheet > Inspection plan Master data > Measurement per

Top  Previous  Next

Edit QC-inspection plan

  Master data sheet

 Master data

         Measurement per

 Release

 Rules

         Execution

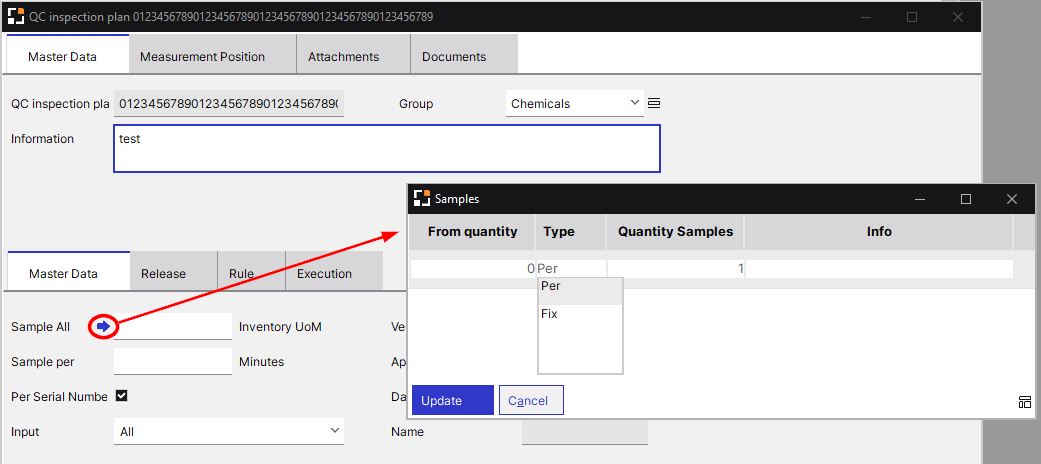

Determination of the number of samples: Click the orange/blue arrow left of the input field in the QC inspection plan - Master data window.
QC_Insp_Samples_per_2023.06

Window qs_stichproben_browse.psr



Field descriptions

Field

Description

From quantity

From which quantity the rule applies. This is in the warehouse unit of the item to be tested.

Type

Select how to consider quantity upon inspection. Right-click the field to access selections "per" or "fixed":



Example:

"Fixed": The number of samples specified here above quantity x
"Per": One sample every "per quantity" x above quantity x

Quantity Samples

How many samples to create from this quantity

Info

Free information line



Setting

From Quantity

Type

Quantity Samples

0

Per

1

10

Per

2

100

Per

10



With this setting if we create a goods receipt with Quality control:

Good Receipt

Created Samples

3 Pcs

3

20 Pcs

10

200 Pcs

20




Help URL: https://help.beascloud.com/beas202402/index.html?qce-measurement-all.htm
