Available with Production Data Collection, Start, Interrupt, Completion, Finished Goods, Scrap license.
See Terminal settings in Configuration wizard.
Use this function to login to a routing of a work order. The working time is registered until the order is logged out again.
The app is affected by the "Work order must be set to planned" setting.
PATH: Production > Factory data capture >Terminal > enter user+password > select "Login work order" app.

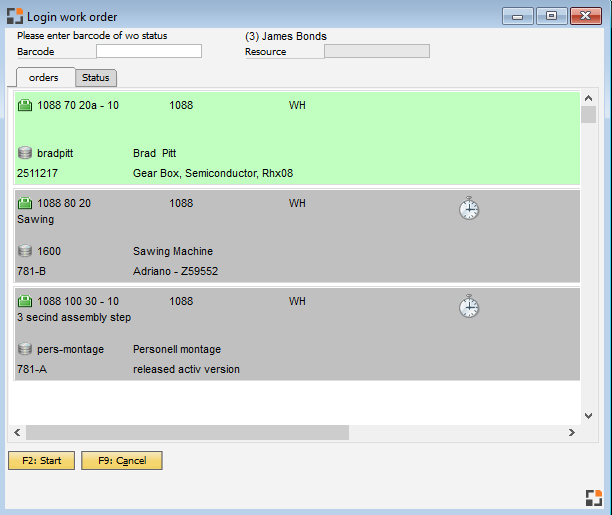

Window fert_ftstmp_anmeldung.psr
Logon the operation sequence via barcode which is printed on the WO. There is an manual selection alternatively.
Only displayed operation sequences can be selected. Exception: Personnel master > FDC -> allow logon to op. sequ. of all pools has been enabled. At the top the currently logged on employee is displayed.
Operation sequences from following are displayed:
Pool function active: All operations are displayed, which are located in current pool and which use operations that the employee is entitled to view. All operations are displayed without restrictions.
Adjustable in the Configuration wizard – Production For more information about pool see Pool administration |
The following is displayed:
- Work order, assembly, position, production number, customer (or warehouse)
- optionally interruption information
- Resource ID and description
- Assembly, item number and description
- A clock if the order has been logged on already by the employee
Enter the bar code to log in, selection with ENTER or F2
Then the second page is opened.

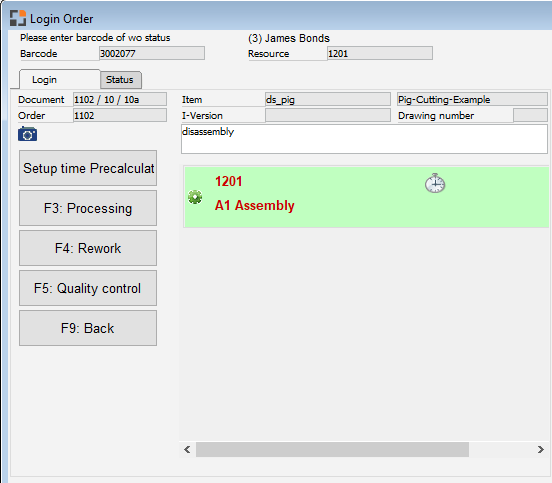

Window fert_ftstmp_anmeldung.psr
You can select:
The resource stored in the operation sequence is pre-selected All additional resources are displayed which - belong to the same resource group - are stored as alternative resource in the routing position
- all resources if the view is active in Personnel master > FDC |
Up to 4 time types can be selected in the resource. These are set up in Configuration wizard – Master data – Resource – Time type |
The operation sequence is started by F2, F3, F4, or F5
The display of functions depends on the set time type.
The window can be closed or the next operation sequence can be selected directly has been enabled in Configuration wizard – Production – FDC.
NOTE: Parallel operations do not consider quantities and do not manage Open/Close status!. Time receipt creation does not close a parallel operation.
Click on the camera symbol which displays the list of all available documents and images. An entry selected here is displayed directly with the display program installed on windows. The Preview window is supported |
Click on the |
If in Configuration wizard > FDC the option "attendance linking" was enabled, the employee is automatically registered in attendance. |
Multi logon
Activate option Order logon: multi logon to logon several orders subsequently via bar code. The option is ignored if you call up the window via the pool list. (beas 9.1 PL:08 HF: 2)
If in Configuration wizard > FDC the option "Attendance linkage" is active, the employee will be logged on automatically for attendance registration. |
The pool function should be deactivated if this view is too slow. Adjustable in the Configuration wizard – Production |
See
Opposite function: Logout work order
If you want to change the list of displayed operations, use the following event to manipulate the filter: windowevent preretrieve setvar=is_mmfilter= (empty - disable multi-machine filter, grouping) end event
Example:
windowevent preretrieve setvar=is_mmfilter= setvar=ls_where2= and "BEAS_FTHAUPT"."TYP" = 'AB' setvar=ls_where3= and "BEAS_FTHAUPT"."TYP" = 'AB' end event |
