Description
See
Table
Quality control order results
Measurement samples
BEAS_QSFTPOS
For detailed information on how to import see Data Integration Hub and Source-Target-Link.
Field
Name
M
Type
DocEntry
X
int(4)
KND_ID
Sample Id
nvarchar(20)
POS_ID
Position
MESSWERT
Value Number
numeric(4)
MESSWERTC
Value Text
nvarchar(255)
ValuationId
Valuation ID
ValuationText
Valuation Text
SPERRGRUNDID
Blockage Reason Id
SPERRGRUND
Blockage Reason Text
nvarchar(0)
OK
Ok - ID
nchar(1)
valid values for - Yes: Y,J,1 - No: N,0 Valid values: Yes=J No=N
Release
valid values for - Yes: Y,J,1 - No: N,0 Valid values: Yes=1 No=0
UDF1
Userfield 1
nvarchar(100)
UDF2
Userfield 2
UDF3
Userfield 3
UDF4
Userfield 4

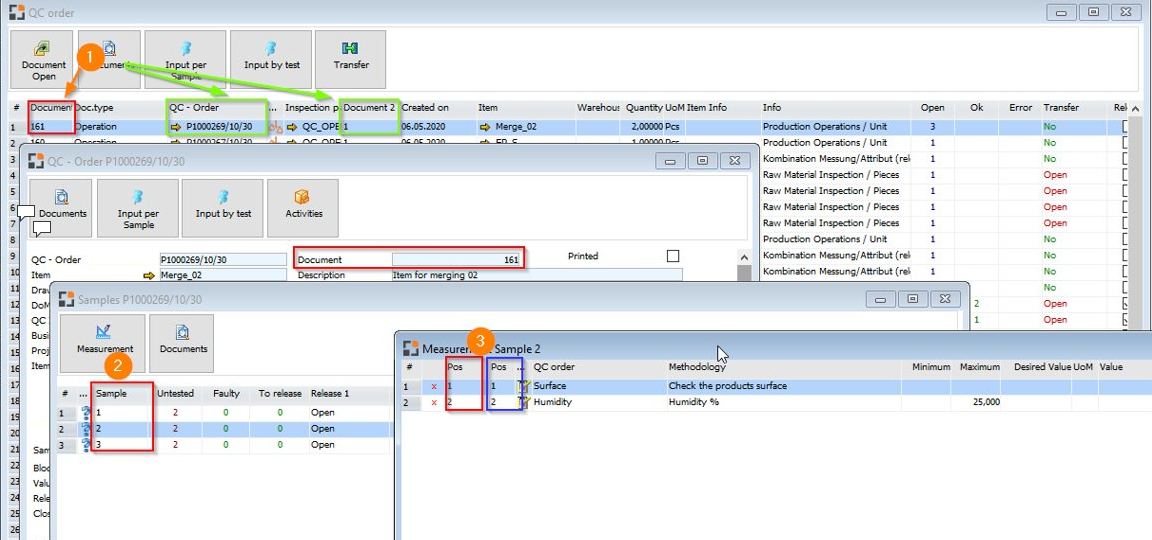

The following information is mandatory (see image):
- Document number (red) or, alternatively, QC order + Document 2 (green)
- Position: Pos_ID (red) or Pos_text (blue)
