With this app you can create a multi-line issue document and define the Items to post out for a work order position. See Configuration wizard settings of the Web Terminal.

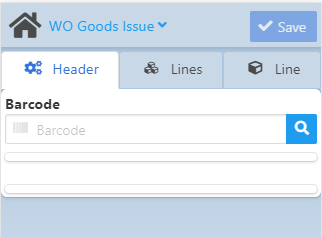

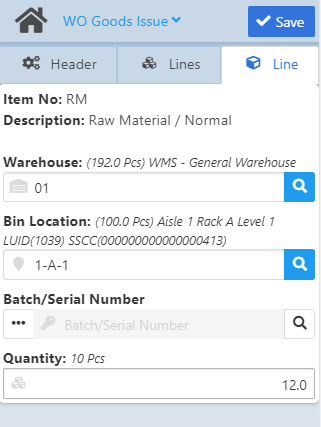

Header tab Note: When scanning a BoM bar code, the screen directly switches to the Line tab. When scanning a Routing or WO Position Bar code, the screen switches to the Lines tab.
Entering the bar code manually or selecting it with the magnifying glass icon opens the "WO Position Search" screen with filtering option. The screen displays detailed information on Work order Position by Sales Order number, Work Order number, BoM Position and Item number:

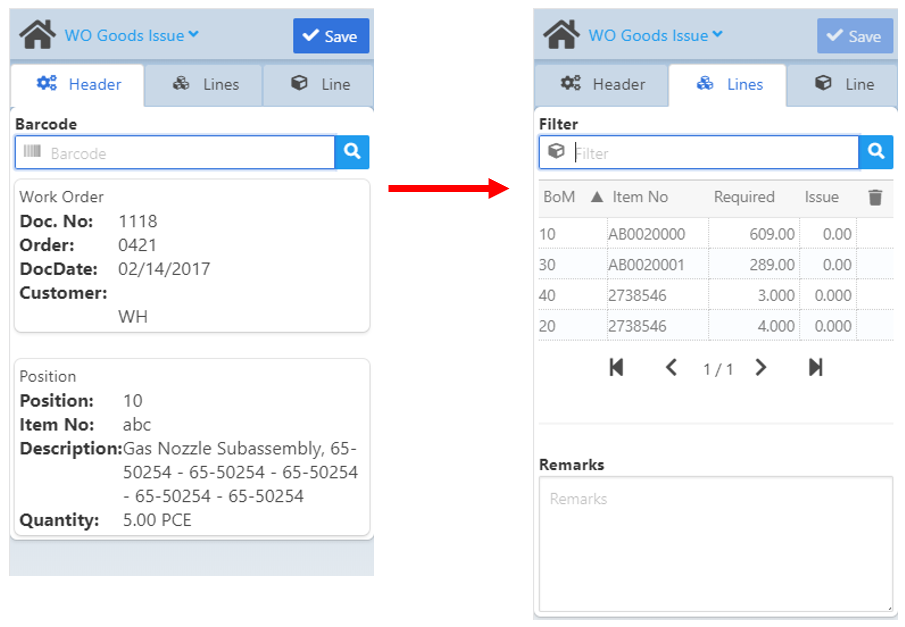

Once the selection has been made, the Work order details appear in the Header tab and the screen automatically switches to the Lines tab, similarly to the WO Position scanning process. Field Descriptions
Limitations: - Only one WO position per document can be managed. - Multiple Batch / Serial Numbers are allowed. See Batches: Extended Information. - There is no cancellation process; Issue on Assembly is not possible. - It is not possible to book other items or add new BoM positions.
Note: Working with this app is a manual process, as automatic allocation is not supported. |
