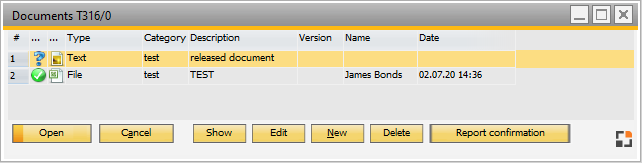

Documents linked to the QC-order are displayed in this window. You can open and confirm them.
For further information See QC-inspection plan – Edit documents
PATH: Production > Quality Control > Samples > select an entry > Samples OR Measurement > select an entry > Documents button.
Window qs_ftattachment_browse.psr
Button |
Meaning |
... |
Icon of Reading / Confirmation status. |
Image |
Icon linked to the document. |
Type |
Document type. See Type. |
Category |
Document Category. |
Description |
Document description. |
Version |
Document version. |
Confirmation, Name, Date, Station, Version |
Status of confirmation, information. |
Functions
Function |
Meaning |
Show |
Display attached document (or double-click on the line).
- File: The show button opens the attached file. IMPORTANT: A file needs to be located in a folder accessible by all employees. Programs to view the file need to be installed on every station. Beas does not display the content.

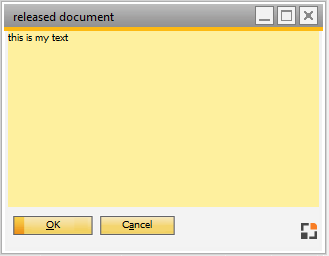

- Text: The information shows what was saved in the Text field of the Attachment Edit window.
Window system_textedit.psr |
Open |
Change attached documents. See Document edit. |
Cancel |
Close window without changes. |
Delete |
Delete attached document. Documents stored in QC-inspection plan cannot be deleted. |
New |
Enter new document by indicating the path. See Document edit. |
Report confirmation |

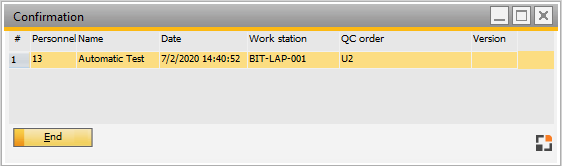

Press the button and an information window appears, displaying the name of the opener of the document, the time and date of opening, work station and QC order number.
Window qs_qsartikelattachment_confirm.psr |
See
Quality control order - Item master - Quality control - QC-inspection plan
Register measured values for all samples
