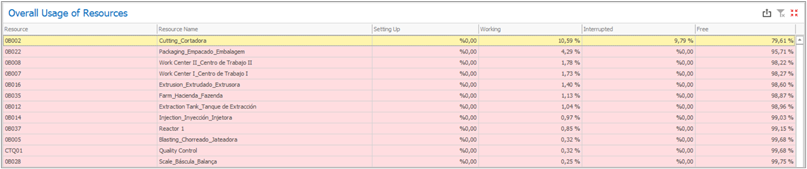

This report details how the capacities of the resources are used, revealing the following information:
| a) | Setting Up: Total setup times registered for the resource; |
| b) | Working: Total scheduled and executed work times registered for the resource; |
| c) | Interrupted: Total interruption hours registered for the resource; |
| d) | Free: Remaining capacity after discounting interruptions, scheduled work, setup times, and work times. |
By default, three colors can be applied to the report rows. The colors can be customized by editing the dashboard and defining new color rules.
Red: Free capacity greater than 80%, or lesser than 20%;
Yellow: Free capacity between 40% and 80%;
Green: Free capacity between 20% and 40%;
Any resource can be selected for further insights on how its capacity is or was used (triggering filters on the other reports and charts from the dashboard).
