Beas usability extension

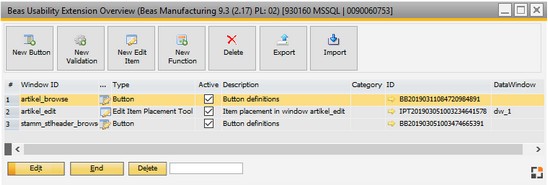

The overview shows all function buttons, validation definitions, and configuration options that have been created by this window. Furthermore, the setup window enables the user to add more definitions.

If user-specific settings are being used, the edit windows must be opened through the administration window.

Window sys_trigger_browse.psr

See Beas Usability Extension Overview.

This function directly opens the Item Placement Tool and adds the current field to the list of altered fields.

If the field is already present in the list the Item Placement Tool will jump right to it.

Window sys_itemplacement_edit.psr

Item Placement Tool

The Item Placement Tool opens and the selected field is added. The property "mandatory field" is set automatically. Go to Item Placement Tool – Mandatory Field.

This function is only available for input fields (Columns).

Mandatory fields are displayed with a red background if they are empty. Saving or adding is not possible until all mandatory fields have been filled.

Note: It is not possible to validate the formatting of numbers and dates.

The Item Placement Tool opens and the selected field is added. The property "Hide" is set automatically. See Item Placement Tool - hide

To make the field visible again, simply remove the corresponding field definition in the Item Placement Tool or deactivate the property "hide"

Special feature for input fields:

When an input field is hidden all associated fields will be hidden as well.

The Item Placement Tool opens and the corresponding field is added. The property "read only" is automatically set. Go to Item Placement Tool - read only

Read only items are not changeable and will be grayed out.

The Item Placement Tool can be opened directly. For example in order to change or delete existing configurations or add new ones.

Tip:

If user-specific settings are necessary, the Item Placement Tool must be opened via the Setup Overview.
