All active reservations are displayed and can be deleted here. Multiple selection and deletion are possible. Only warehouse reservations, no receipt reservations are displayed. Currently, only the Beas reservation system is supported. Each row represents a reservation on item/batch/bin location level for a pegging.
For transactions, use the issue and reservation window.

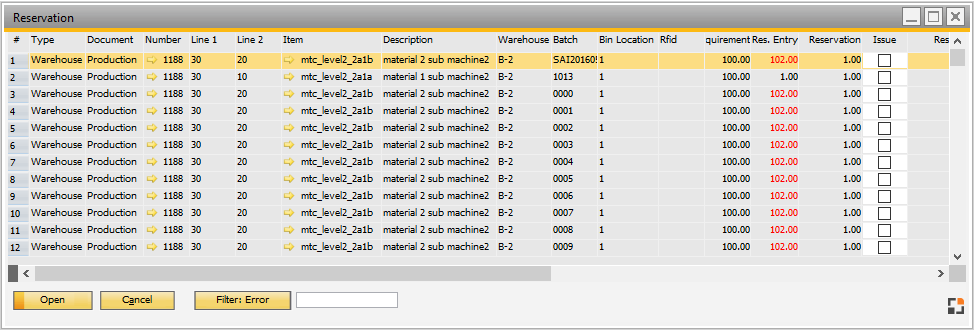

Window reservation_browse.psr
|
|
Type
|
Reservation type.
|
Document
|
Document type: customer orders,
|
Number
|
Document number.
|
Line 1
|
Work order position .
|
Line 2
|
Work order position assembly line.
|
Item
|
Item number.
|
Description
|
Item description.
|
Warehouse
|
Current warehouse.
|
Batch
|
Batch.
|
Bin location
|
Bin location.
|
Requirement
|
Remaining requirement of pegging.
|
Res. Entry
|
Quantity reserved in total for that pegging. If this entry is large than the requirement it is displayed in red and marked as wrong.
|
Reservation
|
Quantity of the current reservation for that entry (item/batch/bin) depending on pegging. If this entry is larger than the current stock, it is displayed in red and marked as wrong.
For reservation type "receipt" this column is hidden.
|
Reservation Total
|
All reserved batch quantity.
WMS Integration: The quantity considers all WMS locks of supported types "Batch", "LUID" and "Detail".
|
Locking level
|
|
OK
|
If this check box was ticked, the marked line can be issued directly, by clicking the button "issue".
The button is displayed, when at least one line was marked.
You can mark only reservations, which are
- Of type "warehouse"
- Linked to a work order
(beas 9.0 PL: 07)
|
|
Res. Entry
|
Reservation for that (item/batch/bin) independent from pegging. If this entry is large than the current stock it is displayed in red and marked as wrong.
For reservation type "receipt" this column is hidden.
|
Inventory
|
Stock of this item/batch/bin.
For reservation type "receipt" this column is hidden.
|
UoM
|
Unit of measurement.
|
Functions
|
|
(Reservation) Open
|
The button opens the "Reservation" window for the selected item.
|
Remove
|
Delete the reservation.
WMS integration: The button is only available for WMS locks by "Detail". The deletion of other supported locking types (Batch and LUID) is not supported.
|
Cross reference
|
Opens Item cross reference.
|
Invent. history
|
Opens Inventory history.
|
Filter: Error
|
Only entries marked as wrong are displayed. Filter applies only for displayed entries. Reservation type "receipt" is not displayed. Click the binoculars right below to display all entries (Filter: All).
|
Change log
|
Open the Change log.
|
Search (input field)
|
•Item Number ("BEAS_RESERVATION_LINE"."ItemCode")
•Match Code ("OITM"."U_match")
•Item description ("OITM"."ItemName")
•Base Doc Entry ("BEAS_RESERVATION_LINE"."BASE_DOCENTRY")
•Batch ("BEAS_RESERVATION_LINE"."BatchNum")
•Bin Code ("BEAS_RESERVATION_LINE"."BINCODE")
(beas9.0-000-002-003)
|
|
Issue
|
Button (located top left) is displayed only if at least one reservation row was marked using the check box. It is possible to issue the reserved entry directly. See Column "OK".
(beas 9.0 PL: 07)
|
|
Reservation Conflicts
|
Opens a screen to resolve conflicts of reservation/locking between Beas and WMS systems.
Window wms_reservationconflic.psr
|
Window settings are available.
Reservation window
Sales order: Hard stock reservation
back to inventory
Help URL: https://help.beascloud.com/beas202402/index.html?reservierungsliste.htm
|
