Accessible via MRP 2 > Click on a resource utilization bar or Order Recommendation > right-click menu in tab inflow and outflow (window area left below) > origin
For the selected item, peggings and replenishments (on top in the structure) or the created demand and coverage (below) are displayed.

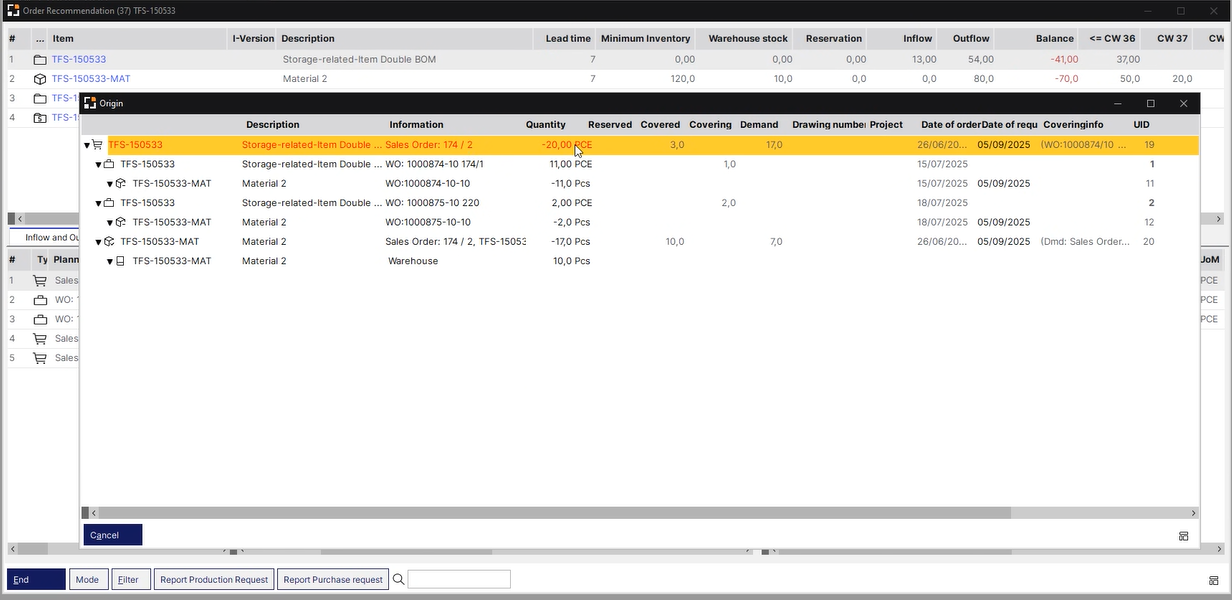

Window mrp_linked.psr
It shows:
•Which pegging caused which requirement.
•From which peggings a certain requirement arose.
•Which inflow covers the requirement. See Requirement coverage calculation.
The selected pegging is displayed in red and marked as the current row.
The following types of links are displayed:
Traditional style |
Boyum Style |
Description |
|---|---|---|
|
|
Work order (or the icon, stored in work order) |
|
|
Purchase order |
|
|
Warehouse |
|
|
Multiple order |
|
|
Pegging (e.g. from sales order, work order) |
Temporary reservations are shown as well.
Restrictions
Maximum twenty references are displayed per entry.
field: beas_mrp_detail.demandconvering
Window: mrp_linked
