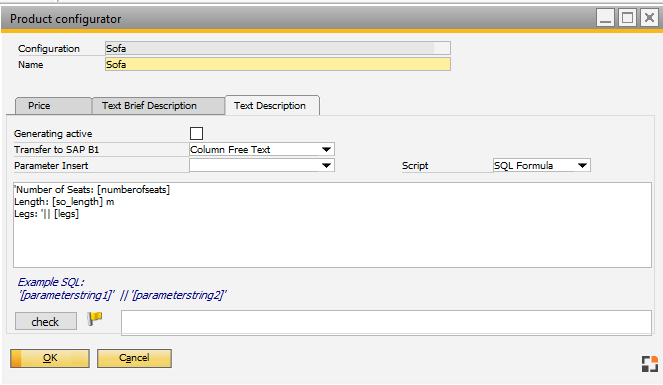

Production > Product Configurator > Product configurator definition > Configuration structure > Object-Type "Header" > Header-Text Description
Field
Meaning
Transfer to SAP Business One
- if you made a change in configuration window
- if the document line is not closed
You can choose:
Value
Description
No
No Action
Column Item Description
only in Tab "Text Brief Description"
Write the Brief description back in current document line in field Item Description
Information:
in SAP it is not possible to change this field directly.
Beas uses the "sendkey" function. For Limitations see SAP SDK documentation - sendkey function
This field must be visible and editable.
beas 9.3 PL 2
Column Free Text
Only in Tab "Text Description"
write the Text description back in current document line in field "Free Text"
Activate this field in document form settings – Table Format
Script
(An additional script in project folder is needed)
Script-for data transfer
Generating active
The description shall be created from existing parameters, Set-Objects etc. as defined in the field below.
If a work order is to be created with this configuration, Beas uses the created Brief description from this configuration. See Work order position.
Parameter Insert
Display all already defined parameters and set-objects. By this the description text for the field below can be generated easier.
Setup used syntax to define text descriptions
(SQL-Formula, JavaScript-Formula, Java-Script, VBScript Formula, VBScript, DW Script, beas Script)
See Script Syntax.
"Check" Button
Check for syntax errors in the entered string to generate the description.
Entry field
The links to parameters are entered in this field. All configurations and set-objects can be used.
