Warehouse Stock

Terminal and WEB APP > WEB APPS Version 2.1 > Warehouse Stock

 Top  Previous  Next
Expand/Collapse Toggles

Warehouse_Stock_appthumb

Zebra_main_wdevice

Optimized for Zebra Scanner


Browser Support
Browsers_supported

GS1
Bar code Support



beaslogo License

Material Management (Issue, Receipt, Allocation)

Warehouse Support

SAP Bin Management

Beas Bin Management

WMS Bin Management



With this app it is possible to get physical Warehouse information together with detailed Inventory within the selected warehouse.

The app consists of two tabs: Warehouse tab and Inventory tab.
See basic WebApp controls in General Information on WEB APPS Version 2.1.

See Configuration wizard settings of the Web Terminal.



hmtoggle_plus1Warehouse tab

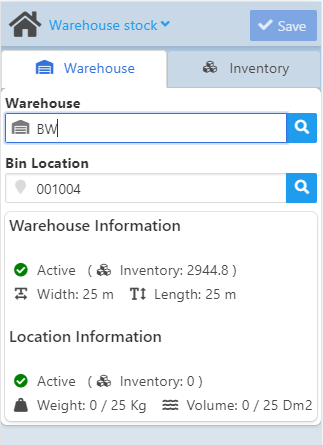

After selecting a warehouse, the app displays the following information:

Whs_stock_app_02



Field Descriptions

Field / displayed information

Description

Warehouse

Tapping on the magnifying glass opens the Warehouse search screen displaying a list of warehouses with WhsCode and WhsName. Upon selection, the warehouse code is indicated in the field.

Bin Location

Tapping on the magnifying glass opens the Location search screen with filtering option. The indicated information are Location codes with Description and available stock.

Warehouse Information

Displays status, inventory count and physical dimensions of the selected Warehouse.

Location Information

When selecting a Bin Location, the "Location Information" section also appears under the Warehouse Information

Active / Inactive

Shows if warehouse/bin locations are active Whs_active (having inventory, used in orders) or inactiveWhs_inactive .

Inventory: XX

the Warehouse/Location information section shows the available stock in the selected warehouse / bin location

Width

The width dimension of the warehouse provided in meters.

Length

The length dimension of the warehouse provided in meters.

Weight/Volume xx / yy

In the example above, the current weight/volume is 0. In case of SAP bin locations, the system always displays zero (0). In the image above total weight on shelf is 25kg and total volume is 25dm2
hmtoggle_plus1Inventory tab

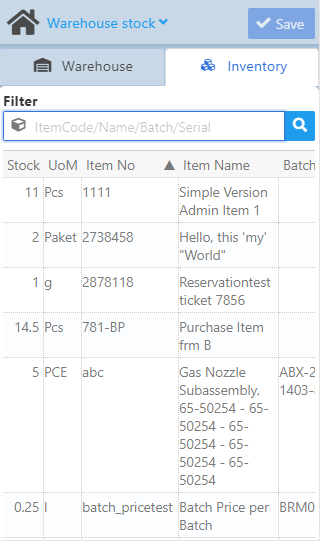

The Inventory tab displays stock information for the selected Warehouse. It is possible to filter inventory by Item Number, Item Name and Batch/Serial number.
The displayed inventory information then provides details on Stock (quantity), unit of measure, Item Number, the descriptive Item Name and Batch/Serial number:



WHS_stock_Inv_tab



Help URL: https://help.beascloud.com/beas202402/index.html?whs__inv__information.htm
