PATH: Administration > Setup > Production > Operation catalog.
1. Right-click an operation.
2. select / Cross reference.

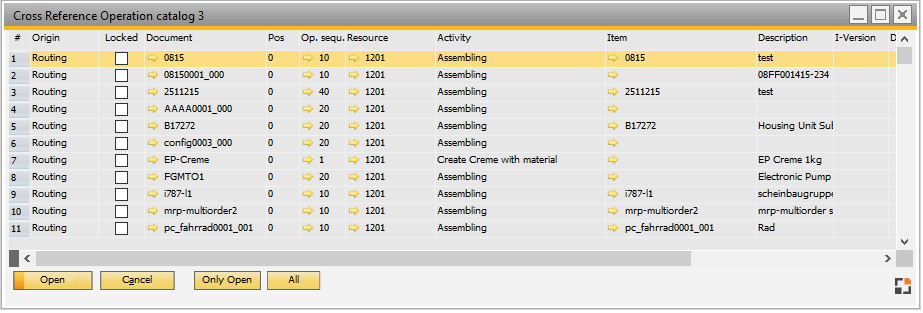

The list shows which work orders, routings or Precalculations contain the selected operation. Master data can be accessed directly with the orange arrows.
Window stamm_ag_edit_origin.psr
|
|
Origin
|
Shows where the entry was found (WO, routing...)
|
Blocked
|
Entry blocked.
|
Pos
|
Continuous number in that list.
|
Op. sequ.
|
Operation sequence.
|
Resource
|
Resource ID.
|
Activity
|
Description of the activity.
|
Item
|
Item.
|
Description
|
Item description.
|
I-Version
|
For Work order and Precalculation: used I-version.
|
Drawing number
|
For Work order and Precalculation: stored drawing number.
|
Raw material
|
raw material
|
Match code
|
Routing: entry match code.
|
DIN
|
DIN number
|
Functions
|
|
Open
|
Open selected entry.
|
Cancel
|
Close window without saving changes.
|
Window settings
|
Open window settings.
|
Only open
|
Filter: Only open work orders.
|
All
|
Reset filter, display all work orders.
|
back to Operation catalog
