Object-Type "Block"

Production > Product Configurator > Product configurator definition > Configuration structure > Object-Type "Block"

 Top  Previous  Next
Expand/Collapse Toggles

A block configuration can be used for grouping certain elements. Blocks are represented by a the icon (config_block / mfolder_open_2023_04 ) in the configuration structure.

configurator_block



The following fields and properties are available in a block definition.

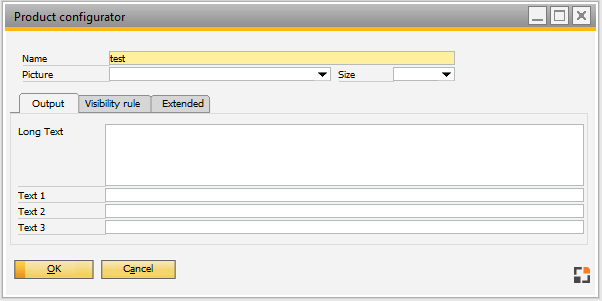

Product_Config_Struc_Headeredit

artikel_produktkonfigurator_detail





Field

Description

Name

Item name (item number) After calling the configurator, this name is displayed at the top in the navigation area on the left.

Picture / Size



A picture to be displayed at this group. When the user selects the group, the picture is displayed. To select a picture, click on the drop-down arrow in the field and a screen opens to browse for the required image. Beas saves the image in the SAP Picture share folder.



The image display size can also be defined.

The size parameter is not supported fin the WEB version and in the WEB Configurator the image is always the original size.



The following sizes are supported in the internal view:

250 x 250

450 x 450

650 x 650

300 x 250

500 x 450

700 x 650

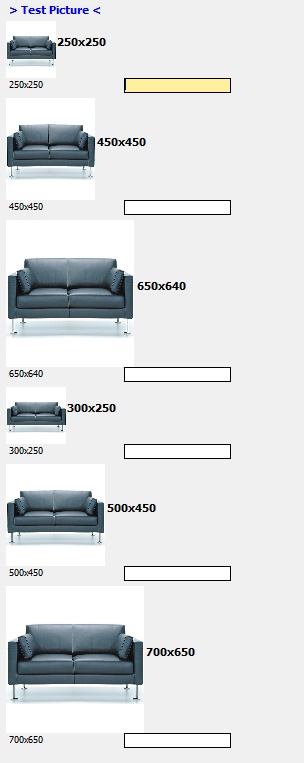

configurator_picturesize





hmtoggle_plus1Output tab

Field

Description

Long text

Field for additional text

Text 1

Field for additional text

Text 2

Field for additional text

Text 3

Field for additional text
hmtoggle_plus1Visible Rule tab

Some rules can be defined to display the block with specific values or parameters. The rules determine whether a configuration option is presented to the operator, based on previous configuration selection. Therefore, it is possible to restrict options. The rule is created in SQL syntax.

Field

Description

Parameter Insert

Parameters and Set Objects that are already defined, are displayed in a selection list. They can be used to create a rule.

Script

The language syntax that the rule is written in. Available options are:

•DW Script

•SQL formula

•JavaScript formula

•Java script

•VBScript formula

•VBScript

See Script Syntax

Input field

Insert the visible rule for the object. All defined parameters and Set-Objects can be used in the configuration.



Example:

[a] = 5

[color] = red

[a] > 5 or [b] = 3



To have a parameter not visible (maybe for special cases):

1 = 2



see Script Syntax



help-achtungNote:

When using the SQL formula, database accesses may reduce the performance of the configurator window.

The check button

Check for syntax errors in the entered script.

Flag

flaggreen – The rule is error free

flagyellow – Warning (default)

flagred – Error in rule

Result line

Shows the result of the evaluated rule.

Evaluation of the rule

Shows the evaluated rule with status message.



hmtoggle_plus1   Tab Extended

Field

Description

Bitmap

Select the icon for the specific block. By default, Beas selects a folder icon.

Color

Select a display color for the text of the block name.
