Connections

In the connection page you can see all current connections.

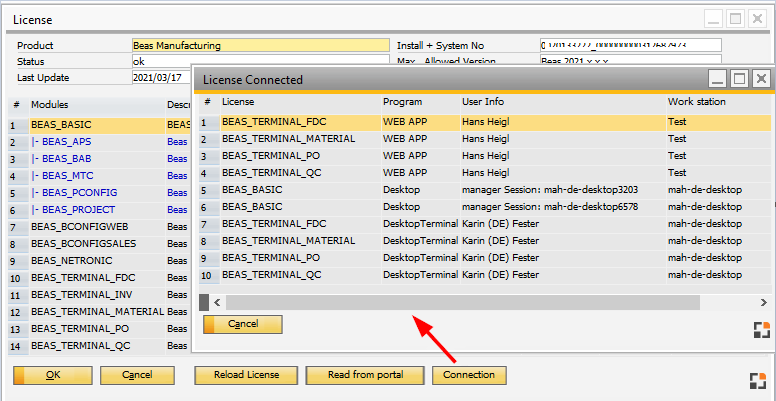

license_connections_02

Field

Description

License

Type of Connections

Type	Description
Beas Basic	If you start Beas, the system searches for Beas Basic License. If available, the system checks whether the license is used on another station. If yes, you can move the active license to the current station. The user can start Beas on one station more than once without additional licenses, but only on one station at a time. In this case you can see 2 entries, for every start. For this, Beas creates a unique Beas Session ID for every Beas session. On the right side of the User you can see the used Session ID.
BEAS Product Configurator (Single Sales user) Beas APS Gannt Viewer	The system checks if the license reservation exists, but it does not create a license reservation. You cannot see an entry in the connections.
Beas Product Configurator (Web User)	This is is used for the WEB Configurator. You need a license for every Session (not User or Employee). In "Connection" you can only see the Session ID. Note: The user must click on "logout", otherwise the license is not free. It takes up to 10 Minutes for deleting the license reservation.
Beas Terminal License	WEB APP: The system reserves the license if you connect to the WEB APP, and disconnects the reserved licenses if you click on "Logout". IMPORTANT: If you don't click on "Logout", it takes up to 10 Minutes before you can use the license again. Desktop: The system reserves the license only while you are logged in.

For more information about license see license types.

Program

User Info

The User Name (Basic License) or Name of personnel (Terminal / App license).

Work station

The Work station ID (if available)

If remote session: the computer name of the terminal server + windows login name of current Windows user.

INTERNAL INFO:

The connections saved in table BEAS_LICENSE_ASSIGN

In this table all fix assignments and all current license connections saved

if fix=1, it's a hard assignment

The system try to use an assignment, which "fix=1", if not available, it create a new entry with fix=0

A entry is reserveed, if LifeTimeSec > current time.

Column	Description
EntryId	unique key
UserId	User - Id (Number) OUSR.USERID
PERS_ID	Personnel Id BEAS_PERS.PERS_ID
STATION_ID	Station ID BEAS_SYS_STATION.STATION_ID
WorkStationId	Computer name
SessionId	Session Name
LicenseId	Id from License
fix	1=license is assigned to Beas-Basic/Config Sales: User-Id Netronic: Station-Id WEB APP - related to fixType
fixType	Define the Assignment with 5 digigs Pos 1: Fixed to user id Pos 2: fixed to Pers_id ... and so on Current only one position can be 1
LifeTime	Info about Life time
LifeTimeSec	Life time in sec yyyymmddhhmm Note: if >0, then the license is reserved, if 0, license is free
PingTime	Last Ping from the client
PROGRAM_ID	License reserved from program ...

NOTE: Don't delete this table. Use "Disconnect All". If you delete all entries, the system will load all assignments from old license system

NOTE: It's not really a disconnect. The Clients try to reconnect automatically. But only ONE time. If no license is available, the client will disconnected from the license

CLEAN UP

The system clean the table automatically

- every day 1 time

- if you open the license window or connection window

in the clean process the system delete all lines,

- if LifeTimeSec < current and fix=0

- if StationId not existing in beas_sys_station

Functions

Function

Description

Disconnect

Disconnect the License.

Note: This can take up to 10 Minutes before the license is removed from the station. If available, the related station tries to take another free license directly.

Refresh

Refresh the connection list.

Disconnect all

Disconnect all connections

Note: All clients try to reconnect if license is available. This can take up to 10 Minutes.

Additional fields (window settings)

Field	Description
User ID	SAP User ID of the current connection
User Name	Name of SAP User from the current connection
Windows Login	Login Name of current windows session
Personnel	Personnel ID from current Connection (Beas Personnel entry)
Personnel Name	Name of the Personnel
Work station ID	Work station ID (or Windows User, if remote Session)
Work station Name	Work station Name (must be defined in Work station setting wizard.
Work station Location	Location of Work station (must be defined in Work station setting wizard.
Session	Unique Session ID Note: Every Beas Start or WEB Application has its own Session ID.
Life time	At this time the connection will be removed if the session does not refresh it.
Ping	Last connection from the session to the license system.
Assigned	If active, the license is in use from the current session.

See article on License administration questions and answers.
