More conditions, sorting and conversions can be defined under the extended information.

PATH: Administration > Data Import/Export > Data Integration Hub > Open Import definition.

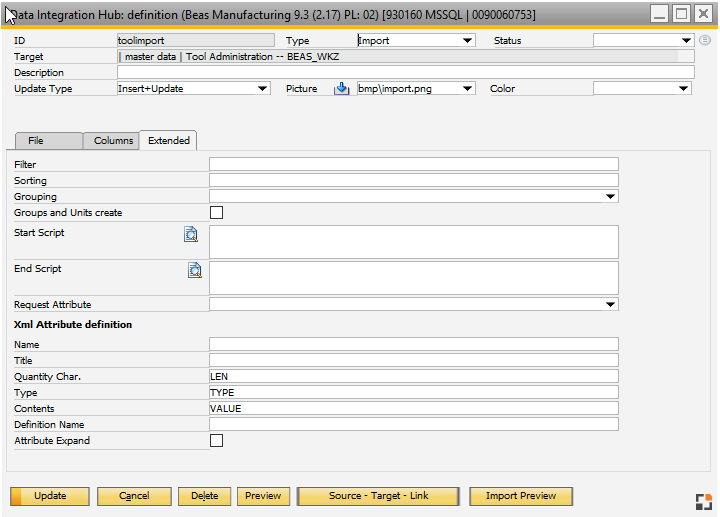

Data_Int_Hub_Extended

Window importkopf_edit.psr



Field descriptions

Field

Description

Filter

The source table can be filtered here, that is, the entries to be imported can be limited this way.

In XML-structures, you can define which area of the stored structure is to be imported.



Example:

Import only if the item number does not begin with 1 and is not empty.

left(item,1)<>"1" and item<>""


The easiest way to define the filter is using the Preview.

Sorting

The transfer sequence can be defined here.

Example: Sorting according to source field "item" ascending: "item"

Example: Sorting according to source field "item" descending and "nr" ascending: "item desc, nr asc"



The easiest way to define the sorting is using the Preview.

Grouping

All the following rows are hidden that have the same value in this field.



Note: This only works if you sort by this field.



Example:

Row;Item

1;A001

2;A001

3;A002



Sorted and grouped by item results:

Row;Item

1;A001

3;A002

Groups and Units create

This includes among others:

•Item – Item group

•Item – Unit of measure

•Item – Material group

Start Script

BeasScript is executed before the import

Note: The import process does not allow message boxes, prompts or other modal forms, which can block the import process.

End Script

BeasScript is executed after the import

Request Attribute

A column can be defined, the value of which is stored in the variable

<importrequestid>.

This can be used to create a response file which is returned to a PDM-software.

From the import file the first row is determined, in which this column is present. Filters and other restrictions are not considered. Thus, the Request ID can also be located outside the import structure.



Example:



<request><requestid>1000044422</requestid></request>
<item>
<itemcode>A001</itemcode>
<description name="Assembly 001"/>
<bom>
<material>C001</material><quantity>5</quantity>
</bom>
<bom>
<material height="5" lengh="10">C002</material><quantity>5</quantity>
</bom>
</item>



In this case the Request Id would be = 1000044422

It can be further processed with <importrequestid>.



hmtoggle_plus1XML Attribute definition

In a TAG-field attributes can be defined.
Which meaning divers tags have or in which kind these needs to be considered can be determined here.

A tag has following structure:


<tag attribut1="wert" attribut2="wert" />
<tag attribut1='wert' attribut2='wert' />



It is important to do blanks and to set quotation marks. There should be no blanks between an attribute and the "=" character.
Quotation marks " or ' are allowed.



A mix of attributes and substructures is allowed.

<item value="A001"><itemname>My Item</itemname></item>



A mix out of substructures and content is not allowed:

Wrong: <item>A001<itemName>MyItem</itemname></item>
Correct: <item value="A001"><itemname>MyItem</itemname></item>

Correct: <item>A001</item><itemname>MyItem</itemname></item>



Functions attribute

import_xmlattribut



Name

Defines the name of the columns

Title

Example

<Itemcode Title="The Item Code">xxx</itemcode>

Quantity Char.

Default: LEN

Example:

<Itemcode LEN="100">xxx</Itemcode>

Define the lengh of 100 Characters.



It is working for different Column types:

string (Type=string, char, varchar, nvarchar) : define max. length

datetime:

Type

Default: TYPE

Example:

<Quantity TYPE="numeric">



The following types are allowed:

String: string, char, varchar, nvarchar

Datetime: datetime

All other formats are converted to numeric values.

For searching existing entries datetime is not supported.

Content

Default: VALUE

Example:

<itemcode>A001</itemcode>

means the same as

<itemcode value="A001"/>

Definition Name

Some XML files have a special construct.



Part 1: Define Field Name Index, example 0 = Itemcode, 1=Itemname
Part 2: Define The values, example: 0="A001", 1="The ItemNmae"



Example:

Name = COL_ID

Definition Name = NAME

<attrib COL_ID="0" NAME="ItemCode"/>
<attrib COL_ID="0">A001</attrib>



The field "0" gets the name "ItemCode" with the number "A001"

Expand attributes



Example:

<item len=30 value="A001" drawing="Z1" revision="5"/>



The following structure is created:

item

drawing

revision

A001

Z1

5
