UnitGroup

Unit of measure groups (UoM groups) are groups of one or more units of measure that you either allow as units of measure for a product or exclude from the set of possible UoMs for the product. You can assign UoM groups for the products of both the deliverying and receiving locations.

Property	Description
Table	OUGP
Primary key	UnitGroupId/i
$transaction	no
$branch	no
$mask	no

Fields

Name

Type

Description

UnitGroupId

Edm.Decimal

Internal Id, linked to Item/UnitGroupId

Entity Relation: UnitGroupLines -> UnitGroupId

Database: "OUGP"."UgpEntry"

UnitGroupName

Edm.String(100)

Description of this Unit Group

Database: "OUGP"."UgpName"

BaseUnitId

Edm.String(20)

The base Unit Id (short description, based un UoM Object)

Database: "UNITGP"."UomCode"

BaseUnitName

Edm.String(100)

The base Unit description (long description, based un UoM Object)

Database: "UNITGP"."UomName"

BaseRoundDec

Edm.Decimal

Rounding, count of decimal places for base unit

Database: "GPME"."ANZDEZ"

Relations

Join to Entiy Object	Relation
UnitGroupLines	UnitGroupId

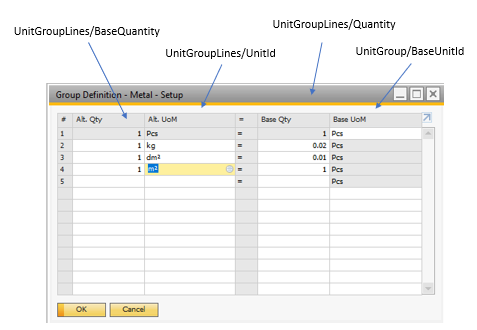

Display all existing Unit Groups

With link to UnitGroupLines it's possible to display all related Units with factor defined by SAP and Beas Conversion Table
