Documents can be stored per tool.
This facilitates locating the tool, among other things; the technical drawing as well as other documents required for a new production can also be stored.

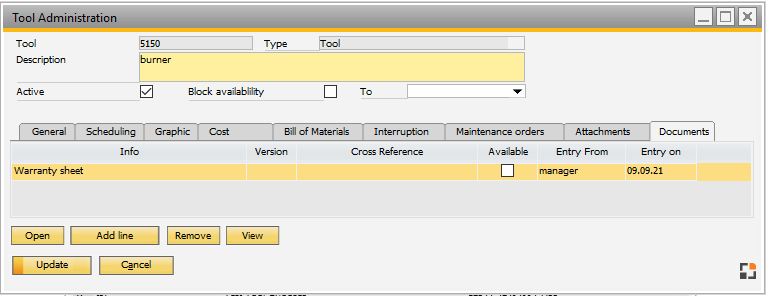

PATH: Inventory > Tool Administration > Open an entry > "Documents" tab.
Window stamm_wkz_edit.psr
Field Description
|
|
Info
|
Input of text information.
|
Version
|
Document version number.
|
Cross Reference
|
Directory and file name of the document.
|
Available
|
If active, the document exists; if deactivated, the reference is incorrect or the user does not have access to the specified directory.
|
Entry From
|
Document was stored by…
|
Entry on
|
Document was stored / modified on …
|
Buttons
|
|
Open
|
In this window you can edit several details to store regarding the linked document.
Window system_document_edit.psr
|
|
Add line
|
In this window you can enter the details to store for a new document.
Window system_document_edit.psr
|
|
Remove
|
Remove selected document line.
|
View
|
Opens the Window explorer with the document file location.
|
Update
|
Save changes.
|
back to cost tab
