Beas Manufacturing 2021.03 delivers an improved look-n-feel of the Gantt viewer.
IMPORTANT: To use the Gantt graphical display for APS scheduling, you must also install the 32-bit version of Beas Manufacturing, as this third-party provider does not support 64-bit version software products.

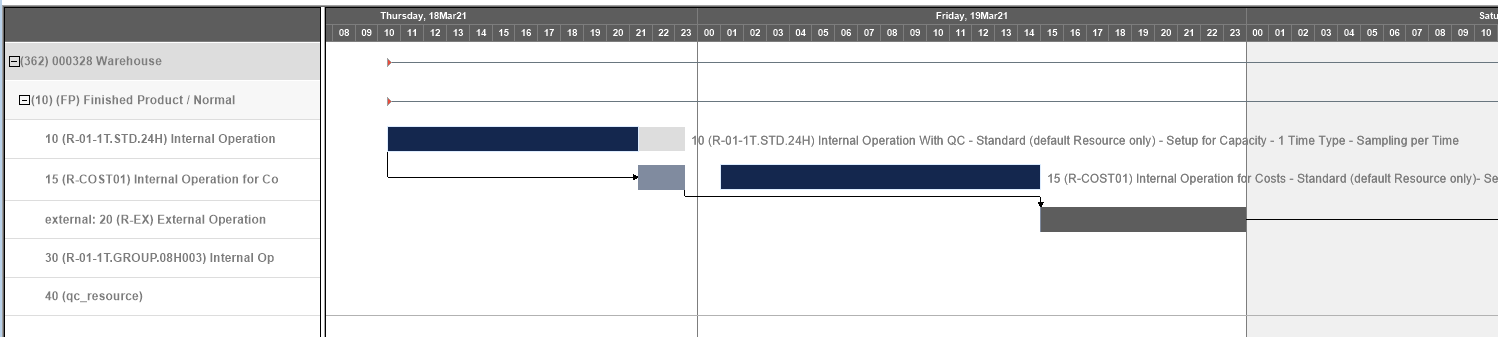

This graphical visualization of the APS results delivers bigger font sizes, bar sizes and objects compared to the old variant, new color codes and enhanced readability.
Hierarchy Tree: Top color: RGB 93, 93, 93 (Dove Grey) WO level: RGB 221, 221, 221 (Alto) Routing level: RGB 247, 247, 247 (Off White) Position level: RGB 255, 255, 255 ( white) Font color: RGB 125, 125, 125 (gray)
Gantt Colors: Normal Resource color RGB(20,39,78)
Transit Time: RGB(128,139,159)
Idle Time: RGB(221,221,221) External Order time: RGB(93,93,93)
Tool Resource: RGB(52,98,108)
Alternative Resource; RGB(94,170,168)
Parallel: RGB(163,210,202)
Icon changes: Green/Red flag: Within/past the delivery date.
|
