WO structure External operation

Production > Work order general > WO structure > WO structure External operation

 Top  Previous  Next
Expand/Collapse Toggles

Lower level under work order position, entries are displayed with a green icon Ext_OP_icon:

WO_struct_External_op_rightclick



For basic, operation related Right-click menu options see WO structure operation.

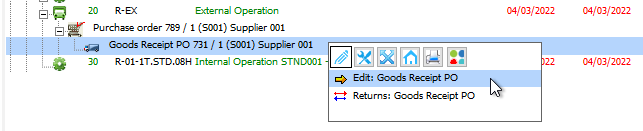

WO_struct_External_op_rightclick_PO

Right-click entry

Description

Create purchase order

Create a purchase order for the external operation.

Edit: Purchase order

Edit the Purchase order.

Provisions

If the operation has linked material, this option is displayed and you can open the External Production - Deliver provisions window.

Provisions XXX: Reopen

Reopen the created provisions document.

Goods receipt from external production

The option appears in the right-click menu only after the provisions document was closed. It is displayed in the right-click menu if there is no material linked to the operation.
Opens the External Production - Goods Receipt XXX window.

Goods Receipt PO XXX

Open the created External Production - Goods Receipt XXX window.

Edit: Goods Receipt PO

Only available if purchase order was created for the parent, external routing position.
For more details see External production – Goods Receipt.

Returns: Goods Receipt PO


Only available if purchase order was created for the parent, external routing position.
When selecting this option to cancel the Goods Receipt PO, a query window pops up to confirm quantity, then the following system message appears:

"Should goods receipt PO XXX be canceled?"



Attention: When canceling a Goods Receipt purchase order, the materials are NOT returned to the warehouse. Therefore, the material issue is not canceled with it, as the material has already been consumed.

Issue provision parts

Open the External Production – Issue provision window. This option only appears when material is linked to the operation.



See External production
