In this window rules you can define to which warehouse, bin code or / and production line the system has to use for
- Quality Control - Transfer process
- Work order
A rule can be defined for
- for one item (if rule only valid for this item)
- as "Rule - ID", if valid for different items. In this case you can define the Rule-ID inside the item master data
PATH: Administration > Setup > Inventory > Warehouse rules > Open / Add new entry.
Window bin_owhs_bindefine_browse.psr, bin_owhs_bindefine_edit.psr

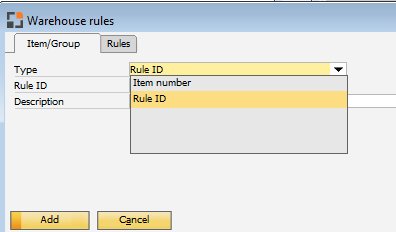

Item/Group tab
Field |
Descripton |
Type |
Select type: Item number or Rule ID |
Rule ID/Item Number |
- Rule ID: You can create a rule group for an item, referring only to this item. Or, define a group rule and store in the item. See Edit item – Inventory data.
- Item Number: With this selection, the rule is linked to the specified item code. The item rule has a higher priority. For editing, you need the authorization to edit items. See Authorizations. |
Description |
Free text. |

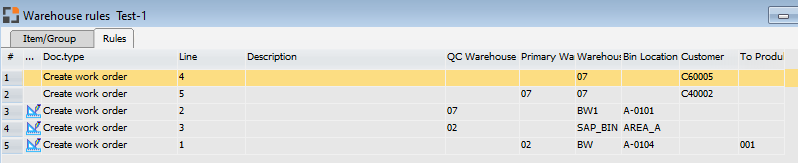

Rules tab
In this Tab you can see all defined rules.
A rule has 3 Areas:
- The Description (Line, Description, Image, Color)
- The Definition when the system has to use it (for Doc.Type, QC/Sales order Warehouse, Primary Warehouse)
- The Warehouse/Bin code which the system has to use if the Rule is valid.
It is possible to define more than one Rule inside one Warehouse rule.
The system checks the rule line by line from top to bottom, and uses the first valid rule.
You can change the order of rules with Drag and Drop.
bin_owhs_bindefline_browse
For more information see Field Descriptions.
