WO Material Reservation

Optimized for Zebra Scanner


Browser Support


Barcode Support

License

Material Management (Issue, Receipt, Allocation)

Warehouse Support

SAP Bin Management

Beas Bin Management

WMS Bin Management

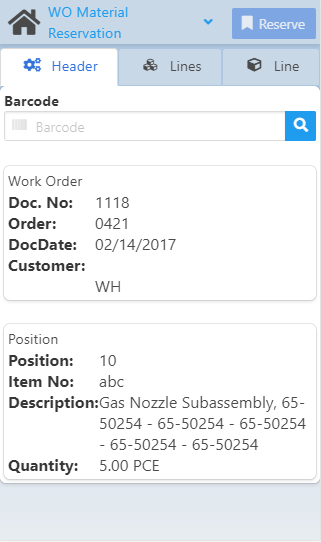

Field

Description

Barcode

Barcode of the work order position / Select barcode.

Work order

Work order related information fields (not editable)

Doc. No.

Work order document number.

Order

Work order number

DocDate

Creation date of the selected work order.

Customer

Customer code.

Position

Work order position related information fields (not editable)

Position

Number of the selected work order position.

Item No.

Item number

Description

Description

Quantity

Quantity for the finished product

The Lines tab contains the open work order positions of the selected work order.

Click on a line (position) to  add quantities to be reserved. If there is any previously reserved quantity, it  will also be visible (see image below).

Field Descriptions

Field	Description
Filter	Search for an item. Note on WMS Quality Status filtering WMS Integration - When working with a WMS database, and connected Produmex Add-On, the list is filtered based on the Produmex WMS Add-On > Organizational structure > Quality Status >"Can be used for production". If the "Can be used for production" field is active, this BEAS screen section only displays WMS items that were set to "Released" status in WMS. NOTE: WMS quality status is not defined per serial number. For this reason, all serial numbers of the same LUID will be displayed in the material issue list, even if they have different WMS quality statuses. Only quantity available in an unblocked for production status can be issued.
BoM	Bill of Materials position
Item No	Item number
Item Name	Name of the item
Reserved	Quantities already reserved. ▪ Red: when Open Quantity is > 1 ▪ Green= When open Quantity is 0 ▪ Yellow= When open Quantity is < 0 (negative) when reserved more than planned.
Open	Open quantities
Required	Quantity required by the work order
WhsCode	Warehouse Code
LUID/SSCC	Logistic Unit number / SSCC (WMS)

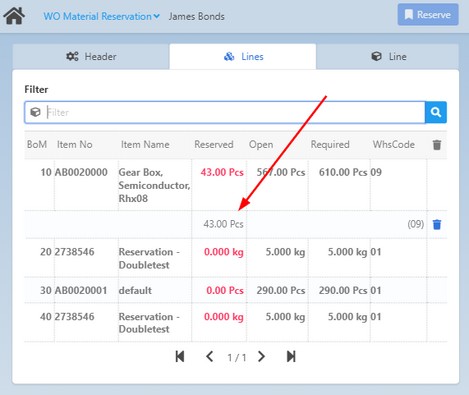

After adding the quantity, click on Reserve, and the app switches back to the Lines tab. The reserved quantity is indicated in a secondary line below the main one. The secondary line contains information on Bin location / Batch or Serial / Quantity / and has the Delete icon.

Reserve button: Reserve material quantities provided in the Quantity field in the Line tab. Clicking on it creates the reservation in Beas, and the screen switches back to the Lines tab to select further positions.

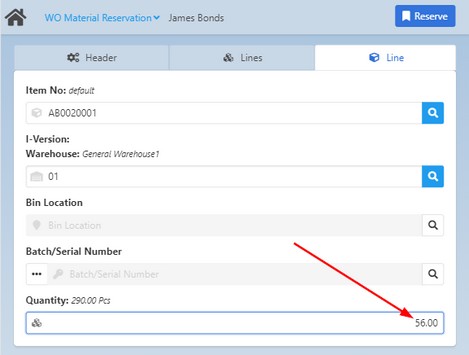

Field descriptions

Field	Description
Item No	Item number
I-Version	Item version
Warehouse	Select warehouse
Bin Location	When the Warehouse for the item has been selected, this field shows the exact bin location (if available). In case of a batch/serial-managed item, this field is automatically filled by the system after selecting the batch/serial in the Batch/Serial Number field.   Mobile View: The field is only visible if the field is required.   Desktop / Tablet View: The field is non-editable if the field is not required. Receipt Rules Issue Rules   Limitation of Beas Bin Management: - RFID definition is not supported   Limitation of SAP Bin Management: - not all Bin Rules are supported in the current view - Weight/Volume are currently not supported in the current view   WMS integration - LUID/SSCC support For normal items, select the Produmex WMS logistic unit of your choice in the "Location Search" screen that opens when you tap the magnifying glass icon.     Field Description Location Bin Location ID Stock Available quantity in the bin location ID/SSCC LUID - logistical unit ID) - SSCC number (WMS)
Batch/Serial Number	Batch/serial number. See also Batch/Serial Extended Information screen. WMS integration: Tap the magnifying glass icon to filter by LUID. Note: It is not possible to do so with the Batch/Serial Extended Information screen.
Quantity	Reserved quantity
