Items in Production

Beas dashboards > Using the dashboards > Factory States > Items in Production

Top  Previous  Next

Dashboard_5.2

Using this report, you can instantly know the items affected by the different states, or in production on the different resources. For example, if you want to see a list of all items whose production had to stop because of a resource interruption or to understand the potential delayed sales amount because of missing components in stock, you just need to select the state “Interrupted” or the substates with “Missing Stock” for the report to present you this information instantly.

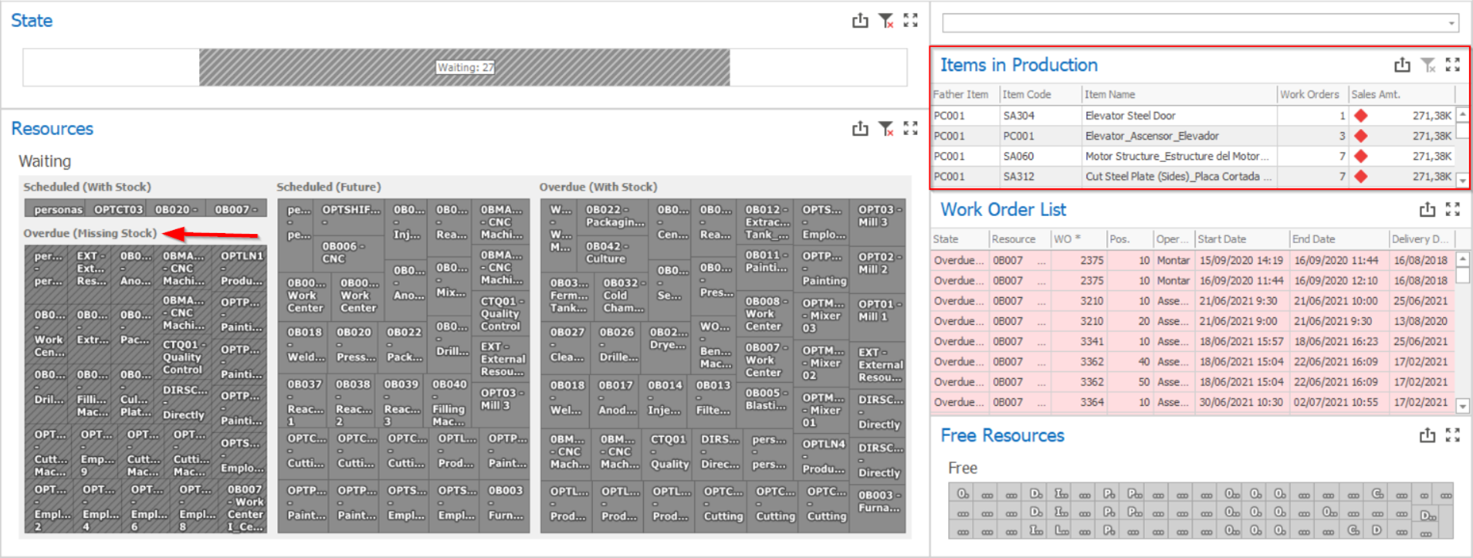

Dash_5.3_b



Additionally, the report also displays the number of work orders open for each item and the total open sales orders amount for each father item (important: if different subassemblies are in production for the same father item, the sales amount for the father item might appear duplicated in the report, as the idea of this report is also to give an understanding of which subassemblies need to be completed for the father items to be produced).

By default, two icons can be presented by this report. The icons can be customized by editing the dashboard and defining new color rules.


Dash_redsquareSales with big impact

Dash_triangle Sales with medium or small impact



For understanding which sales orders are open for each father item and their corresponding amounts, the Items in Production grid has also a B1UP Universal Function embedded into it to automatically display a SQL report when double-click any of the lines. If you wish to activate this feature, you must download the UF and import it into B1UP. DOWNLOAD: Right-click on the link DASH-FST-SALESORDERS and Save the xml file.

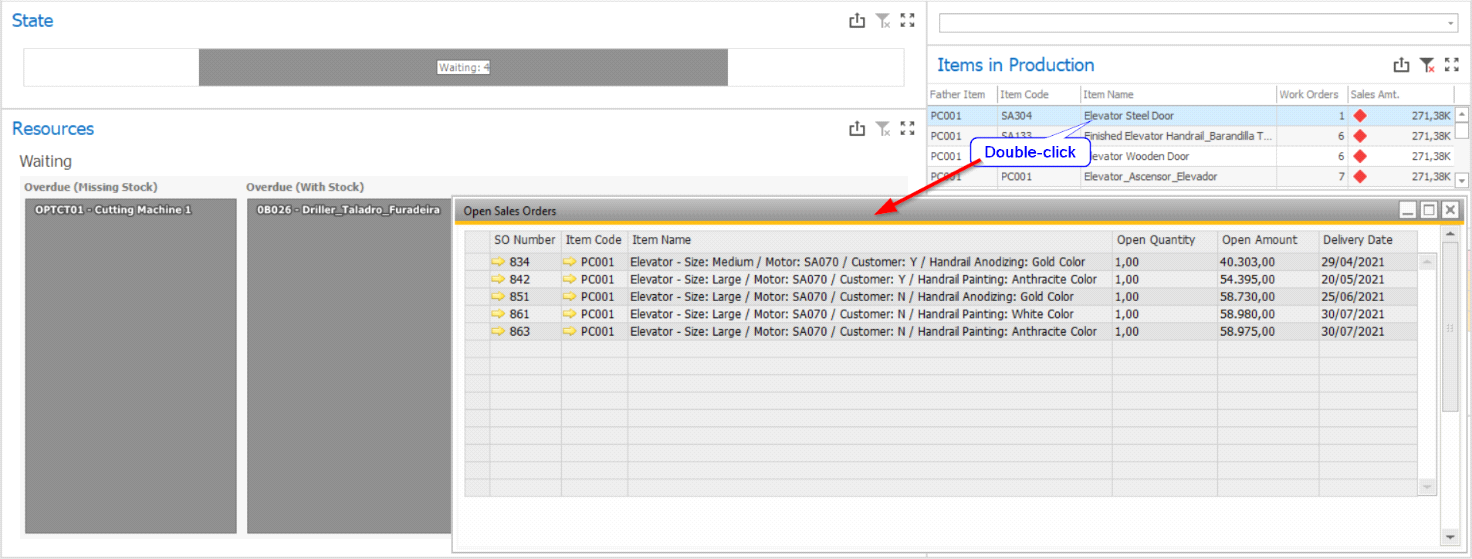

Dash_5.3_c






Help URL: https://help.beascloud.com/beas202402/index.html?items_in_production.htm
