Display

Administration > Setup > Precalculation > Calculation schema > Display

Top  Previous  Next
Expand/Collapse Toggles

In this tab you can define how the Calculation should be displayed.



PATH: Administration > Setup > Precalculation > Calculation Schema > Open schema > "Display" tab

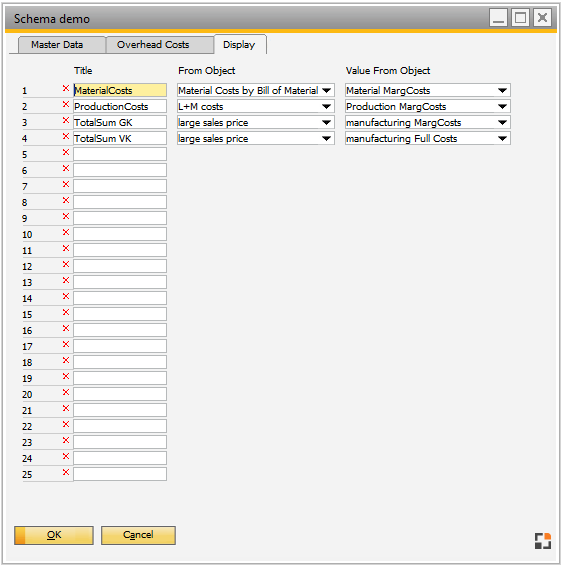

Schema_Display_SAPStyle

Window pk_schema_userformel.psr



The view is defined in the calculation schema in tab "Display". Up to 20 result fields are available. These results are always referring to the calculation schema.

Use this to have for example separate calculations per assembly.



See

Calculation schema – surcharge per item

Precalculation Concept of extended view



Define the following:

Field

Description

Header/Title

Header to be displayed

From Object

To show result from which calculation object

OR

from which variable:
In the calculation object there is the column "save as" : there you can select  "Material overhead costs", "manufacturing overhead costs" or up to 4 freely definable fields. If for more than one calculation object this variable is selected, the value is summed up. This way, sums or values can be displayed which are not incorporated in the result.



Subtract from column 1: In first column for example sales price, in columns right to it the price less various selectable costs. That way any intermediate result can be displayed.

Sum up: from the first column on everything is added. Using this object, from left to right the accumulated intermediate sum can be displayed.

Value from object

Only visible, if for "from object" a calculation row was selected. Here you can select, which value to be displayed from the selected row.





back to Precalculation



youtube Calculation per assembly webinar
