Configurator (WEB solution)

Beas delivers a WEB Configurator PlugIn and a WEB Shop Demo.

You can insert the Web Configurator in your own WEB Pages.



The Beas WEB Shop Demo is only a small presentation of how you can use the WEB Configurator PlugIn.

A Magento Plugin is available. See Magento Plugin

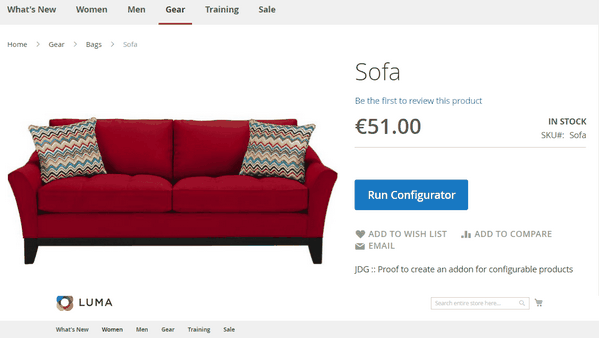

Example Integration in Magento

machento_example



hmtoggle_plus1How to set up the Web Configurator?

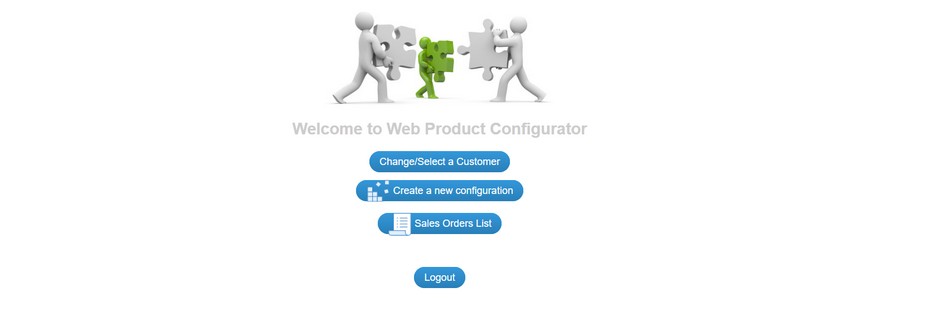

WEB_Configurator_home_wide



The WEB Shop Demo is a presentation of the Product Configurator WEB PlugIn.





The following setup has to be made previously:

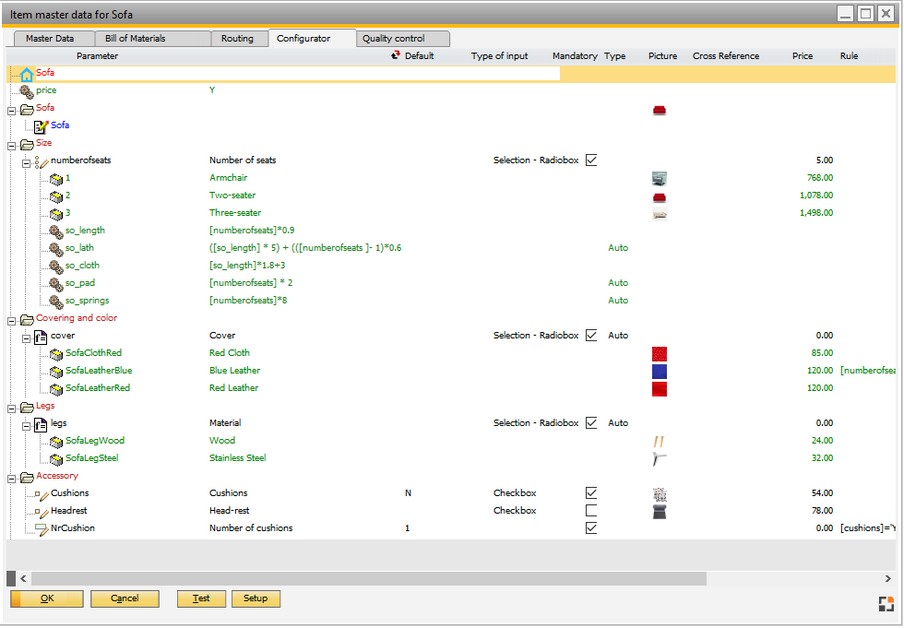

Configurator_tab_SAPStyle

Note: The Web Configurator does not consider the parameters pre-defined in the Visibility rule settings of the desktop version .



See configuration and Product Configurator.

A customer has to be stored for the login at the WEB SHOP Demo. A contact person, an email address and a password are stored in this customer entry. Both are done in SAP B1 > Business Partners > Business Partner Master Data > Contact Person.

Login with user and password set up in HR > Personnel > Login tab.

The function searches for the first user with login information inside.


Login protection:

If the user tries to login 3 times with a wrong password, the system locks the user for 2 hours.

This prevents a bot try a brute force attack based on a dictionary.



2 UDFs to allow this functionality:
table=BEAS_PERS

column=BEAS_PERS=U_beas_LastLogin=nvarchar(15)

udf=OCPR=beas_LastLogin=Last-Login-Status=alpha=regular=15



See Logon and Edit Personnel Master data.



The following functions are available:

- Selection item (all items with stored configuration)

- Configuration of the item

- Creation of a customer order

- Overview of existing customer orders

- Filter products

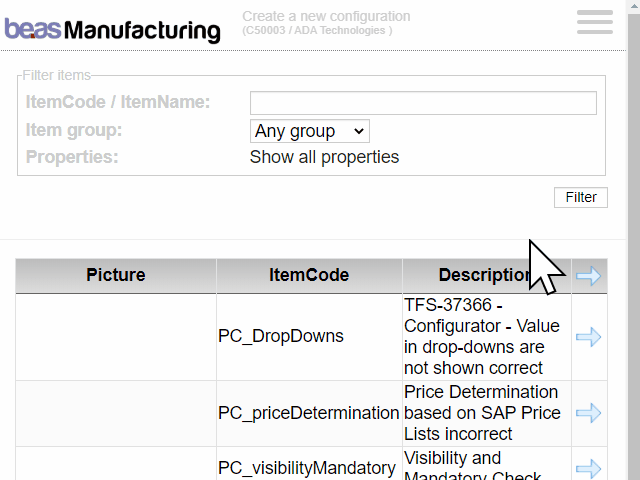

It is possible to filter products with a specific property number checked to be displayed in the product list that you can add to the cart or configure. In this way, you can control which products appear in the web and hide all others not available to be shown to the customers. Beas 2020.08



WEB_Configurator_FILTER



See Web Configurator app settings.



This here is only a small demonstration for using Beas WEB Configurator PlugIn.

For a professional use we suggest Magento.
