Work Order Stock Transfer Request

As of Beas Manufacturing 2024.06 and later, the Beas Work Order Stock Transfer Request function supports WMS integration.

Therein, the Beas logic to generate reservations for a WO Stock Transfer Request is applied also when WMS creates the document.


youtube See VIDEO of a sample, WMS-integrated workflow: WO Stock Transfer Request with PMX WMS.

Workflow:

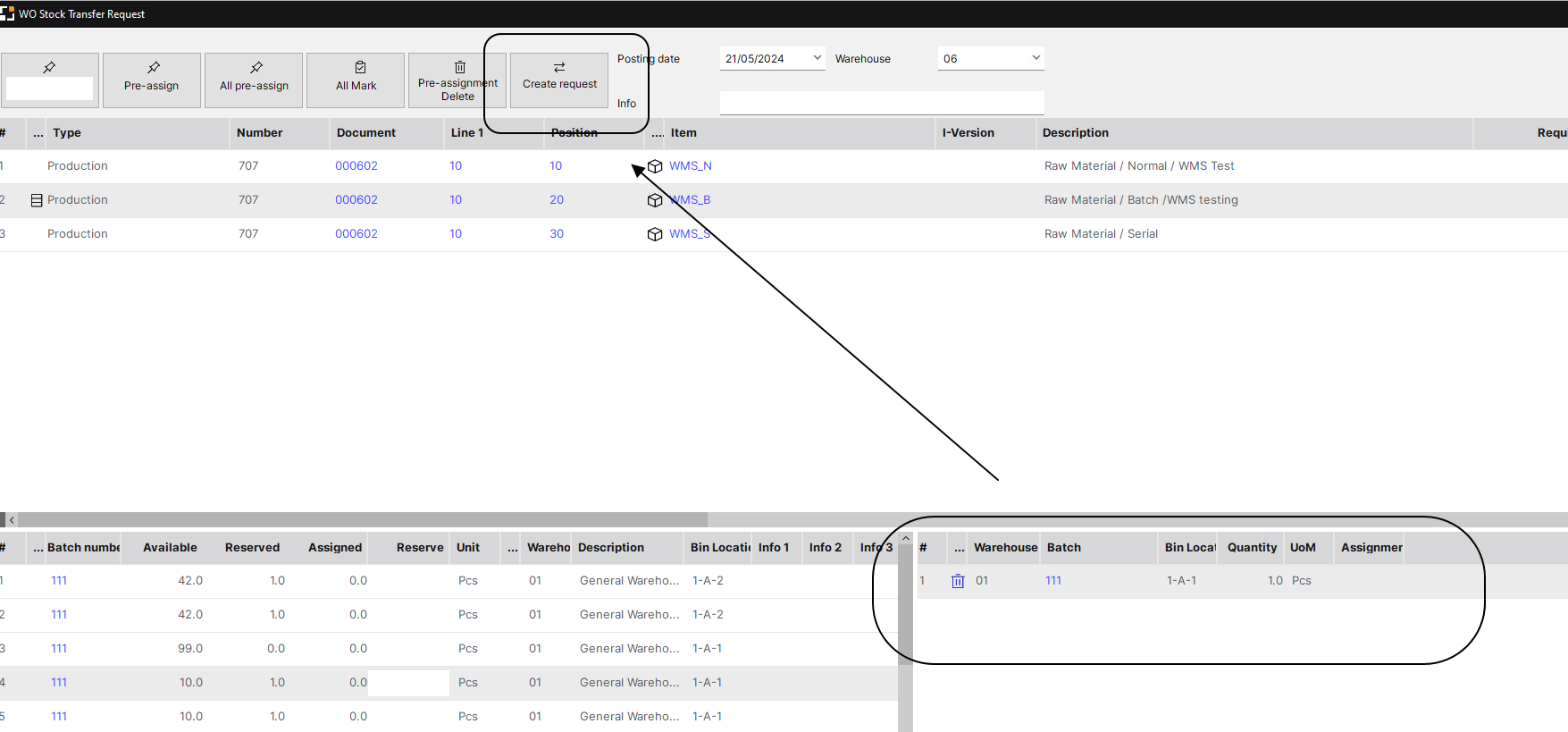

hmtoggle_plus11. Create a "WO Stock Transfer Request" in Beas by reserving a Batch:

WO_Transfer_WMS_01

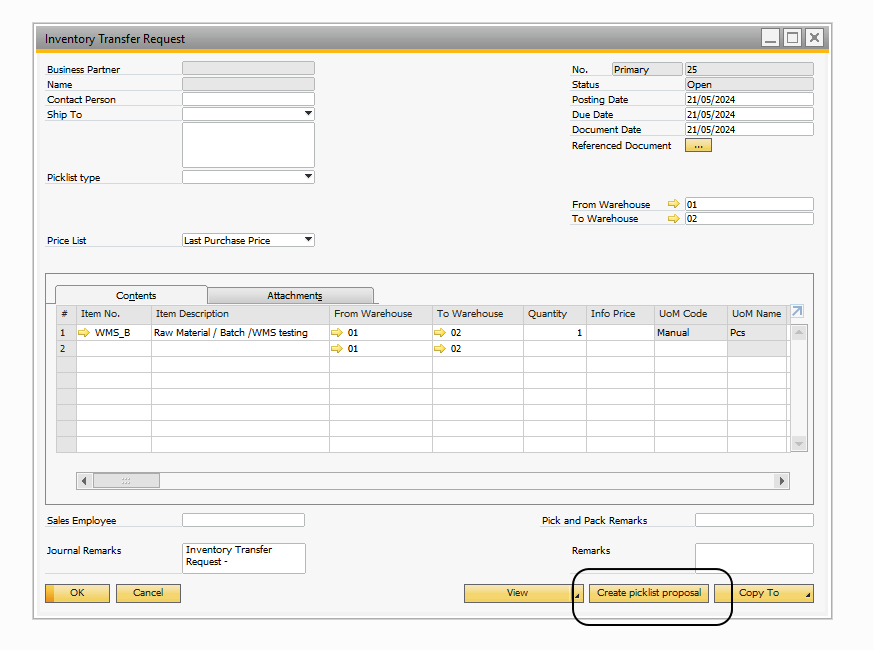

hmtoggle_plus12. Go to WMS and click the "Generate picklist proposal" function in the newly created SAP Inventory Transfer Request document:

WO_Transfer_WMS_02
hmtoggle_plus13. Select "Generate Pick list" in the Pick List Proposal document:

WO_Transfer_WMS_03

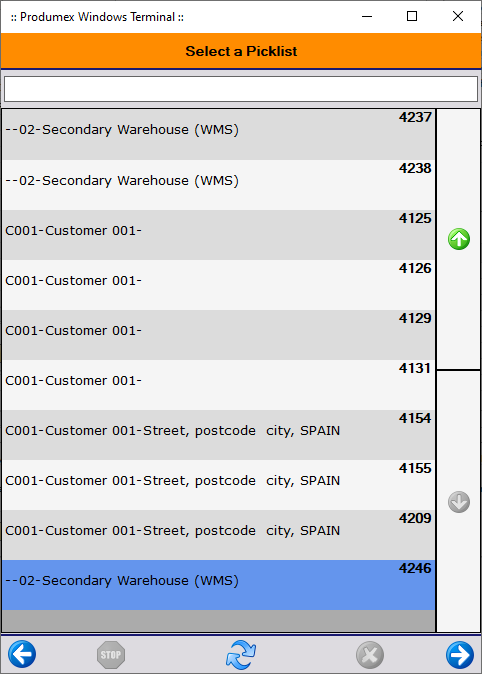

hmtoggle_plus14. Once the Pick list is generated, start the WMS Mobile App, and complete the "picking process":

WO_Transfer_WMS_04

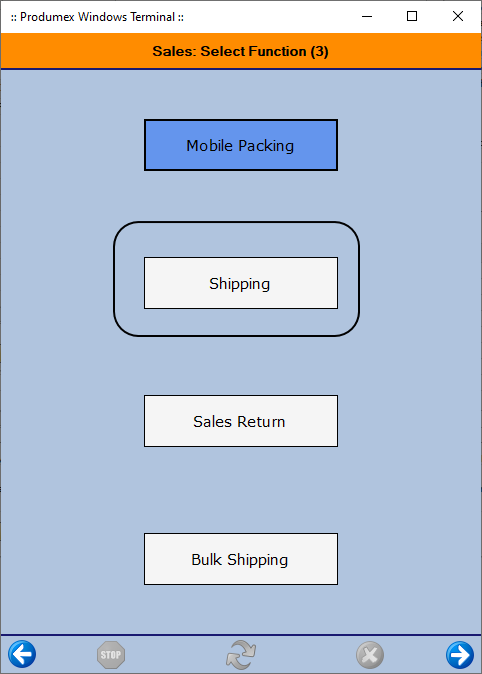

hmtoggle_plus15. When the pick list process is completed, generate the Stock Transfer Request document based on this picked QTY. For this functionality we use the option "SHIPPING":

WO_Transfer_WMS_05

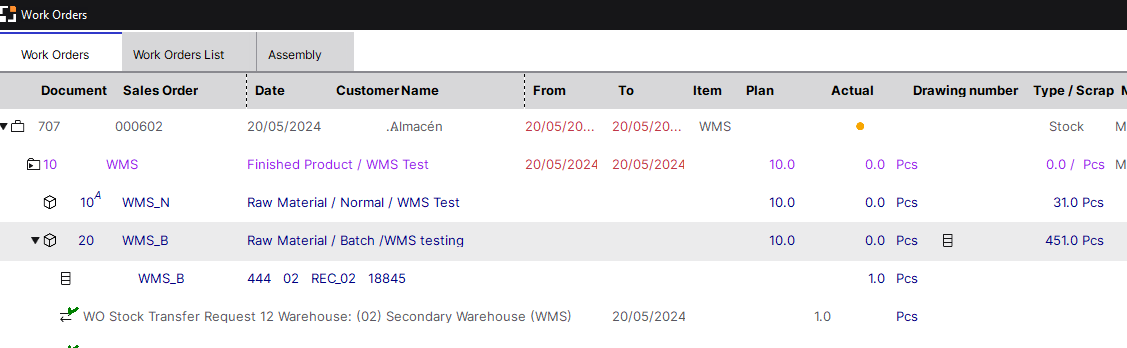

hmtoggle_plus16. Now the new functionality starts and creates a reservation in the Beas reservation table and also in the WMS reservation table:

WO_Transfer_WMS_06



Limitation: The process does not support several locations for the same batch (process does not support "|" in any WMS field)"
