Example for create a own window with multi tab:



create a psr-file

(this example from beas_ftpos with retrival argument 1=2 = empty)

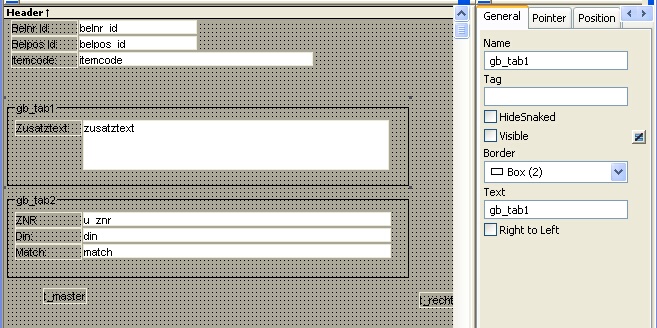

for every tab create a groupbox and set all fields for this tab in this area

set all fields in the group and the groupbox self to unvisible.

create the t_master-textobject

save the psr-file

example tabexample.psr

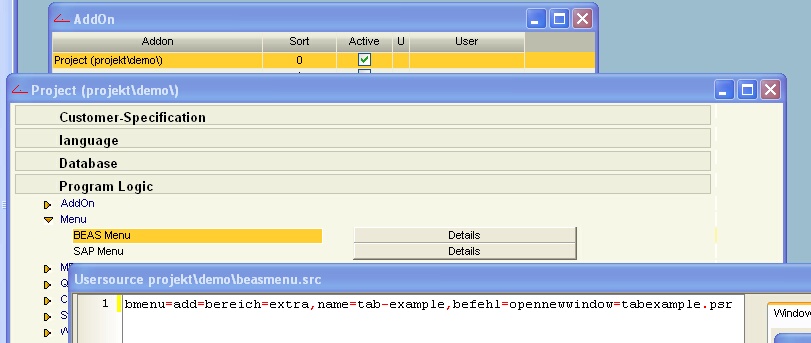

Start beas, insert the Menu-Entry in extra / addon administration and restart beas (or reopen the menu):

bmenu=add=bereich=extra,name=tab-example,befehl=opennewwindow=tabexample.psr



open the window,

crtl+N+B

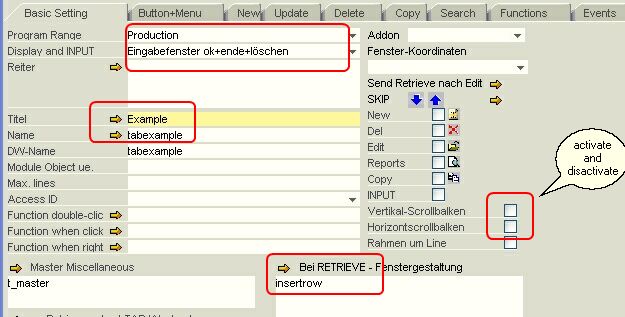

in retrieve-event in the first page insert script:

insertrow



Update, Close and open the Demo-Window

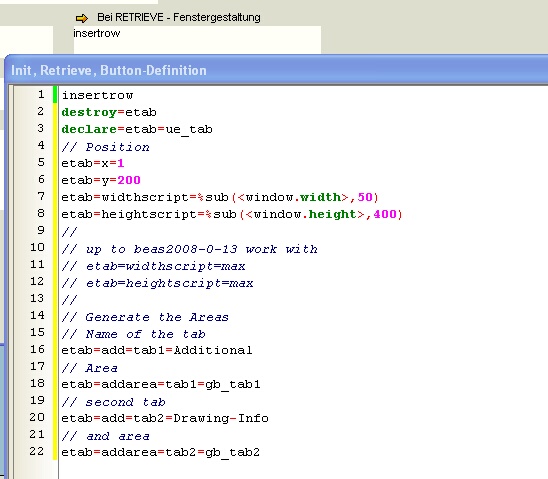

Open Debug-Window (crtl+N+D) - Script and insert this script



destroy=etab

declare=etab=ue_tab

// Position

etab=x=1

etab=y=200

etab=widthscript=max

etab=heightscript=max



//

// Generate the Areas

// Name of the tab

etab=add=tab1=Additional

// Area

etab=addarea=tab1=gb_tab1

// second tab

etab=add=tab2=Drawing-Info

// and area

etab=addarea=tab2=gb_tab2

// redraw

etab=redraw

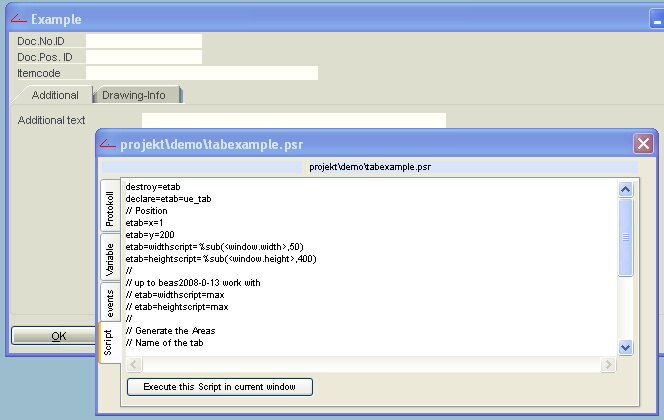

and execute. Now you see the tabs. It works perfect.

if all correct, copy the script in crtl+N+B in "retrieve" WITHOUT the redraw-command



close and open the window and you see the result.
