Picking for production workflow

Top Previous Next

In this workflow, the mobile client of Produmex WMS is used to go through the picking for a work order position in Beas.

Prerequisites

•	On Produmex WMS, the PMX SBO Notification Listener process must be installed and running.

•	On Beas, the Common Interface must be running.

Workflow

1.	Beas: Create a work order.

2.	Beas: Link a Produmex WMS production line to the WO positions.

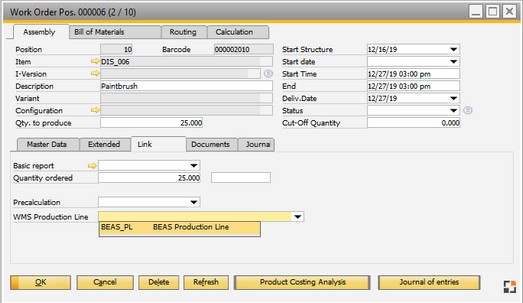

Select WMS prod line 1

3.	Produmex WMS: Use the Produmex WMS mobile client Picking for production option to view all the Beas production lines.

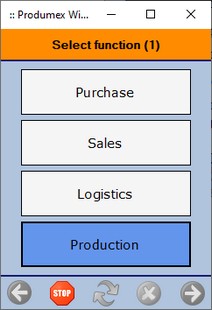

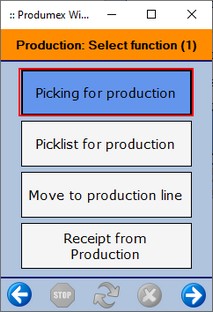

Mobile Client Main Menu (Production) Production Picking flows1

4.	Produmex WMS: Select the line and start the picking as usual.
