Scripting

Administration > Setup > Precalculation > Calculation schema > Calculation objects > Calculation Objects Edit > Scripting

Top  Previous  Next
Expand/Collapse Toggles

With scripts you can change various Calculation objects, or make them programmable. In these you can determine the surcharges or designation using MSSQL, VB, Java or Beas-Script or all of them.



PATH: Administration > Setup > Precalculation > Calculation schema > Overhead costs

1. Open an entry.

2. Select "Script" in the Reference field.

3. Select script from drop-down.

4. Double-click the yellow_arrowyellow arrow.

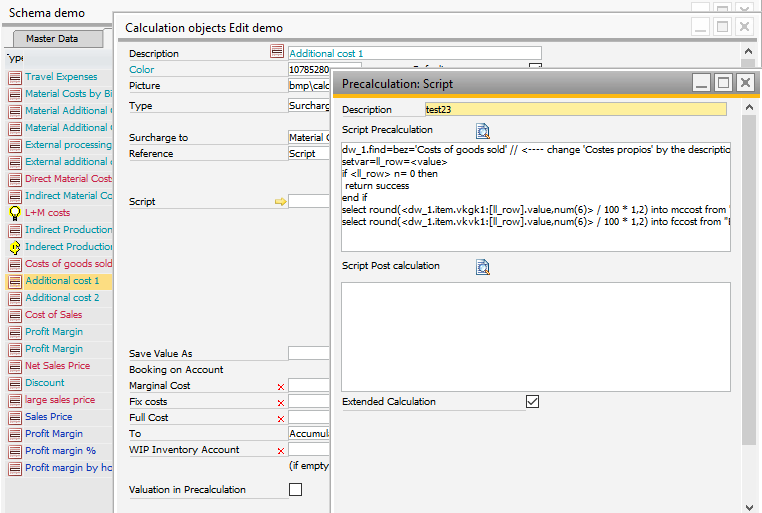

Calculation_schema_script_crop

Window pk_scripting_edit.psr



Therefore, set up the following in Calculation object



Type = Surcharge

Reference = Script

Script = script to be executed. Click the selection icon tool-auswahl to open a list of available scripts. You can view, edit and add scripts here.



Note: Because Precalculation and Post-calculation are very different from each other, no script can be used for both of them. You need to define separate scripts.



Script window

Field

Description

Script Precalculation

Script to be executed at a Precalculation. See Scripting Precalculation.

Script Postcalculation

Script to be executed at a post-calculation. See Scripting Post-calculation.

Extended calculation

See
Scripting Precalculation
Scripting Post-calculation



Please consider for batch-calculations, that only fields relevant for calculation are filled: that means drawing number, designation additional identifier and other fields are not filled.
