GS1

In addition to the GTIN, the GS1-128 barcode can encode other important information such as the batch number or the best-before date and can be applied to the goods. This is made possible by the so-called data identifiers. These make it possible to string together a wide range of information. The data identifier in front of an item of information always clearly assigns it to a category.



barcode_serial_01



Terminal WebApps version 2.1 uses GS1-128 (formerly UCC/EAN-128) global bar code standard to match item bar code number, Batch number and additional information.



BEAS WEB APP supports the following properties of this bar code

(Note: Not every app supports all properties!)

AI

Format

Description/FieldName

00

18 digit - numeric

The SSCC (Serial Shipping Container Code) is an 18-digit identification number for any type of transport unit, e.g. pallets and shipping cartons. It enables shipments to be tracked from the shipper to the recipient - even internationally.



WMS - Integration:
Certain apps support the SSCC generated from WMS. If you scan the SSCC, the system read all items / batches / serial linked to the SSCC.



Without WMS Integration:

Beas does not support SSCC, but you can use the RFID from beas Bin management for working with SSCC. In this case the RFID field is used for SSCC



The SSCC is always an 18-digit, numeric value.
Example: SSCC: 000000000000125431

Bar code: 00000000000000125431

01

14 digit - numeric

The bar code supports only 14-digit, numeric values as item identifier.

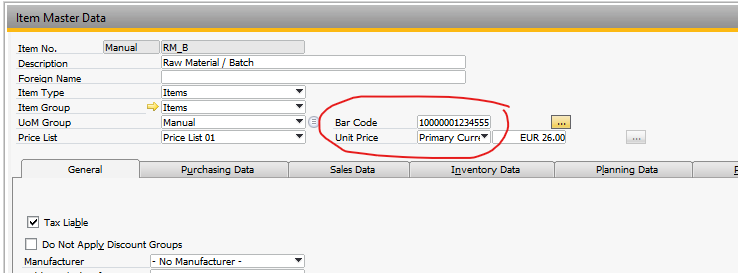

The Bar code is defined in the item master Data - field "Bar Code"

Note: In SAP you can define more than one bar code. Beas supports only the default bar code.

Barcode_setup_Item_master



Example to define the Item Barcode 100004000200104101

Bar code: 01100004000200104101

Ê10

1-20 alphanumeric

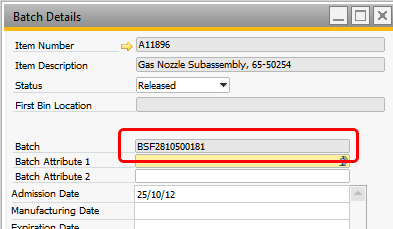

Define the Batch / Serial Number. In SAP this is the property "Batch"

barcode_batchfromsap

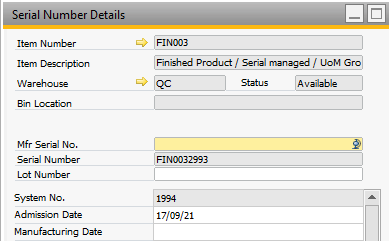

and for serial numbers the "Serial Number"

Note: The serial number must be a unique key. Mfr Serial No. and / or Lot Number are not supported.

barcode_serialinsap



Example: Item Bar code 100004000200104101, Serial Number 49494A13

011000040002001041011049494A13Ê

11

6 digits

YYMMDD

Manufacturing Date

13

6 digits
YYMMDD

Date of Permission

17

6 digits

YYMMDD

Expiration Date

20

2 digits

Version

21..Ê

1-20 alphanumeric

Serial Number

30..Ê

Define the quantity

Example quantity 3.0

303.5Ê

241..Ê

1-30

Alphanumeric

Some apps support item code, but max 30 chars.

Example Item "RM": 241RMÊ

Item RM

400..Ê

1-29

Define the Customer purchase order.

Allows the input of only 29 characters instead of the 100 available in SAP in the Header tab. To be able to use this AI for Customer Purchase Order Number information, reduce characters to max. 29.
